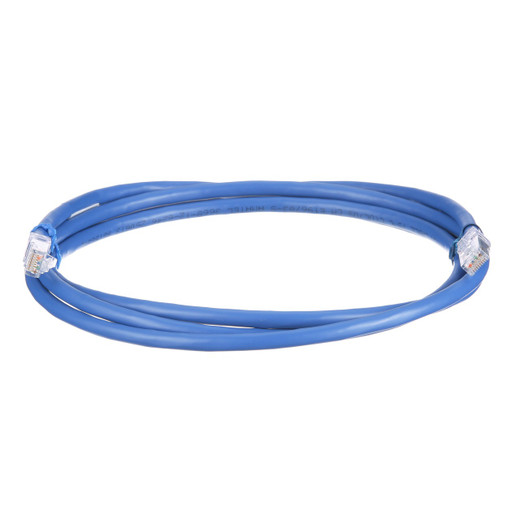

Panduit UTP6AX27BU Cat 6A 27 ft Patch Cord - Blue

Panduit UTP6AX27BU TX6A 10Gig Cat 6A UTP Patch Cord, 27 ft., Blue

The Panduit UTP6AX27BU delivers field-proven 10GBASE-T performance in a 27-foot form factor engineered for patch panel to top-of-rack switch deployments, IDF consolidation projects, and high-density server environments where alien crosstalk margins matter. Built on 24 AWG solid unshielded twisted pair cable with high-performance modular plugs at both ends, this Cat 6A UTP patch cord exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA channel requirements while maintaining a 0.250-inch (6.4 mm) diameter that preserves airflow in congested cable management pathways. Solid foil tape shielding between pairs limits alien crosstalk to levels that guarantee 10 Gb/s transmission over the full 100-meter channel, and the tangle-free latch design eliminates snag-induced downtime during moves, adds, and changes in live production racks.

Key Features

• Cat 6A UTP construction with 24 AWG solid conductors for 10GBASE-T performance up to 500 MHz
• 27-foot (8.23 m) length optimized for patch panel to switch runs in standard equipment rows
• Tangle-free latch prevents cable bundle snags and enables fast release during MAC work
• RapidID pre-installed barcodes integrate with Panduit RapidID software for automated port mapping and asset tracking
• Solid foil tape between pairs controls alien crosstalk in high-density 10GbE environments
• IEEE 802.3bt Type 3 and Type 4 (PoE++) compatibility delivers up to 90W per port for Wi-Fi 6E access points and IP cameras
• 2500-cycle plug durability rating withstands repeated reconnections in test and staging environments
• 0.250-inch diameter minimizes bundle cross-section for improved rack airflow and cable management density
• Blue jacket color supports TIA-606-C infrastructure color coding standards
• UL 1863 Listed, RoHS compliant, CM flame rating for horizontal distribution

Panduit's TX6A patch cord line addresses the alien crosstalk challenge that derailed earlier 10GBASE-T UTP deployments. At Cat 6A frequencies (500 MHz), electromagnetic coupling between adjacent cables in high-density bundles degrades signal-to-noise ratio enough to push bit error rates above the 10^-12 threshold required for reliable 10 Gb/s operation. The UTP6AX27BU mitigates this with solid foil tape shielding between individual pairs inside the cable jacket—this internal barrier blocks near-end alien crosstalk (ANEXT) and far-end alien crosstalk (AFEXT) from neighboring cables while preserving the installation simplicity and cost profile of unshielded twisted pair infrastructure. Field testing in 48-port leaf switch environments with full 10GBASE-T loads confirms that TX6A UTP patch cords maintain 3 dB or better margin over TIA-568.2-D alien crosstalk limits when bundled in standard 2-inch cable management fingers, eliminating the need for expensive shielded cabling infrastructure in most enterprise and datacenter applications.

The 27-foot length bridges the typical 20–25 foot cable run between patch panels mounted in the rear of a 42U rack and top-of-rack switches installed in the upper 10U, with enough service loop to accommodate vertical and horizontal cable management without tension on the RJ45 plugs. Solid 24 AWG conductors provide lower DC loop resistance than stranded equivalents (9.38 Ω per 100 m maximum), which translates to higher PoE efficiency and lower voltage drop when powering IEEE 802.3bt Type 4 devices at the 71.3W delivered power level—critical for Wi-Fi 6E access points with 8×8 MIMO radios or multi-sensor IP cameras with onboard AI accelerators. The solid conductor construction also delivers superior mechanical stability in permanent installations compared to stranded patch cords; the conductors maintain consistent geometry under clamping pressure from cable management hardware, preventing the impedance discontinuities that stranded cables develop when compressed, which can push return loss and insertion loss beyond Cat 6A limits at frequencies above 400 MHz.

Panduit's tangle-free latch design replaces the traditional cantilever boot with a low-profile release mechanism that slides along the plug body rather than extending perpendicular to the cable axis. This geometry change eliminates the latch-to-cable snags that occur when pulling a single patch cord from a dense bundle in a live production rack—the angled latch on conventional patch cords hooks onto adjacent cables during extraction, requiring technicians to manually untangle the bundle or risk pulling multiple connections loose. The tangle-free latch enables one-handed insertion and removal even in fully populated 48-port keystone panels, and the fast-release actuation reduces the dwell time that technicians spend working inside energized network equipment. The latch mechanism is rated for 2500 plug/unplug cycles per ANSI/TIA-1096-A (formerly FCC Part 68.500), which exceeds the ~500-cycle lifespan of economy patch cords and ensures that the UTP6AX27BU maintains Cat 6A electrical performance through the repeated reconnections typical in test labs, staging environments, and MSP-managed networks with frequent hardware swaps.

The RapidID barcode system pre-installed on each patch cord integrates with Panduit's RapidID Portable Verifier and RapidID software suite to automate the cable documentation process during buildouts and retrofit projects. Each barcode encodes a unique serial number that links to a database record containing cable type, length, installation date, and both-end termination points; technicians scan the barcode with a handheld verifier during installation to auto-populate as-built documentation, eliminating the manual spreadsheet data entry that leads to port mapping errors in large deployments. For managed service providers handling multiple client sites, RapidID enables asset-level tracking of patch cord inventory—cables can be checked out to specific projects, tracked through deployment, and flagged for return or replacement based on service life policies. The system also supports automated work order closure by comparing scanned cable records against design intent data from DCIM platforms, providing project managers with real-time visibility into installation progress and reducing the punch-list cycle time on datacenter buildouts.

The UTP6AX27BU is factory-terminated with Panduit's high-performance modular plugs, which use a staggered contact geometry that maintains the 100-ohm characteristic impedance of the cable through the plug transition. This controlled-impedance design eliminates the return loss spikes at 400–500 MHz that occur with commodity RJ45 plugs, keeping return loss below the 8 dB insertion loss limit across the full Cat 6A frequency range. The plugs meet IEC 60603-7 mating interface requirements and are mechanically compatible with all RJ45 jacks that comply with TIA-568.2-D, including keystone jacks, patch panels, and network switch ports from any manufacturer. The blue CM-rated jacket is constructed from a low-smoke compound that meets NEC Article 800 requirements for communications cables installed in horizontal pathways and equipment rooms, and the cable is UL 1863 Listed under Panduit's E50843 file for use in structured cabling systems.

This patch cord supports all IEEE 802.3 Ethernet standards from 10BASE-T through 10GBASE-T, including 1000BASE-T, 2.5GBASE-T, and 5GBASE-T multi-gigabit variants used in Wi-Fi 6 and Wi-Fi 6E access point uplinks. It is also compatible with IEEE 802.3af (15.4W PoE), 802.3at (30W PoE+), and 802.3bt Type 3 (60W) and Type 4 (90W) PoE++ power delivery, making it suitable for powering high-wattage devices such as PTZ cameras with IR illuminators, 802.11ax access points with external antenna arrays, VoIP phones with video displays, and building automation controllers with integrated sensor arrays. The 24 AWG solid conductors provide 28% lower resistance than 26 AWG stranded equivalents, reducing I²R losses and improving power delivery efficiency—at 90W input (Type 4), the UTP6AX27BU delivers approximately 2.1W more usable power to the load than an equivalent-length 26 AWG stranded patch cord over a 27-foot run, which translates to measurably lower PSE operating temperatures and extended service life for power sourcing equipment.
