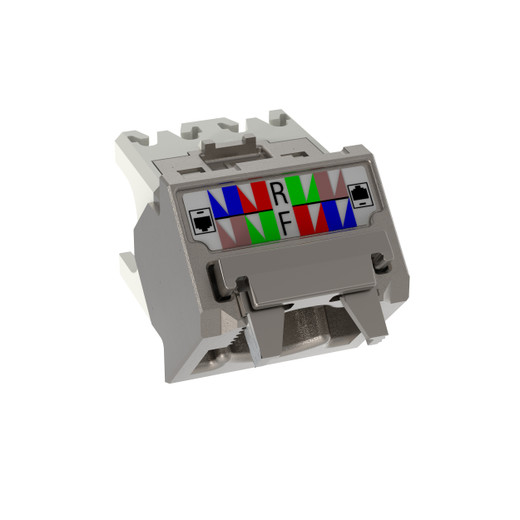

Panduit CJSUDCAPIW-X 45° Angled Wire Cap for Cat 6 Shielded TG Jack

The Panduit CJSUDCAPIW-X delivers a 45-degree angled wire cap specifically engineered for Category 6 shielded TG (Twisted-Pair, Grounded) jacks in high-density copper environments. This off-white cap routes patch cables away from rack faces and vertical managers at an optimized angle, reducing bend-radius violations and cable stress at the jack interface. Designed for the Pan-Net® shielded jack family, each cap maintains full EMI shield continuity while allowing installers to dress cables parallel to equipment fronts or into side-mount cable managers. Ships in 10-packs for project-based deployment in data centers, telecom rooms, and commercial AV installations where shielded Category 6 performance must meet TIA/ISO compliance under high-interference conditions.

Key Features

45-degree angled cable exit reduces bend radius stress at jack termination points

Shielded design maintains EMI protection across entire connector assembly

Off-white finish matches standard rack and panel aesthetics

Engineered for Panduit Pan-Net Cat 6 shielded TG jack series

10-pack quantity supports project-based deployments and phased installations

Integrated strain relief improves long-term patch cord retention

Compatible with horizontal and vertical cable management systems

The 45-degree exit geometry addresses a critical pain point in dense patch-panel deployments: cable bend radius compliance. TIA-568 requires a minimum four-times-diameter bend radius for Category 6 cables; straight-exit caps often force installers into tight right-angle bends when routing to vertical or horizontal managers. The CJSUDCAPIW-X's angled body pre-positions the cable path, allowing natural transition into cable management hardware without exceeding the bend-radius spec. The shielded housing extends the TG jack's 360-degree shield termination through the wire cap, preventing EMI leakage at the vulnerable cable-to-jack junction. This is essential in environments with high RF interference—elevator control rooms, industrial facilities, broadcast studios—where unshielded gaps degrade crosstalk performance and can cause link failures in 1000BASE-T and 10GBASE-T applications.

Commercial integrators deploying shielded copper infrastructure in datacenters, hospital networks, or financial trading floors rely on accessory-level shield continuity to maintain the performance advantages of shielded cabling systems. When paired with Panduit's TG jacks and shielded patch panels, the CJSUDCAPIW-X completes a continuous grounded path from equipment port to wall outlet, meeting ANSI/TIA-568.2-D requirements for balanced twisted-pair shielded cabling. The off-white colorway matches standard IT equipment and structured cabling hardware, maintaining a clean, professional appearance in customer-facing MDF/IDF spaces. The 10-pack quantity aligns with typical patch-panel row counts (12, 24, or 48 ports) and allows spares for moves/adds/changes without ordering full carton quantities.

This wire cap installs in seconds via snap-fit attachment to compatible TG jacks—no tools or secondary fasteners required. The design accommodates standard 28 AWG to 23 AWG stranded patch cords, covering both economy and premium cable constructions. For projects under BICSI or TIA certification review, the CJSUDCAPIW-X's integrated shield bonding and controlled cable exit geometry support documentation of compliant bend radius and shield integrity across the entire horizontal or backbone link.
