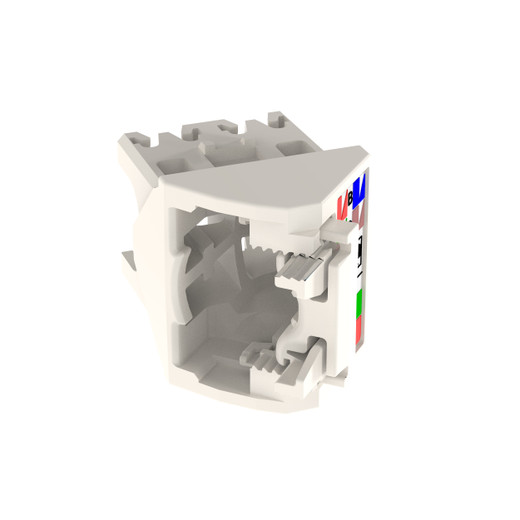

Panduit CJLRCAPIW-C 45° Angled Wire Cap for Cat 6 UTP TG Jack
The Panduit CJLRCAPIW-C angled wire cap solves the sharp-bend problem at high-density patch panels and wall plates where standard straight caps force cables into damaging 90° turns. This 45° angled design guides Cat 6 UTP cables away from TG-style jacks at a controlled angle, maintaining the bend-radius minimums that preserve electrical performance and prevent conductor fatigue during moves-adds-changes. Engineered for Pan-Net modular jacks, the CJLRCAPIW-C ships in 100-unit packs (carton quantity 500) and locks onto the back of the jack module to provide consistent strain relief across horizontal cabling terminations in commercial networks, data centers, and high-density telecom environments.
Key Features
- 45° angled exit path maintains Cat 6 bend-radius requirements in congested patch fields and wall boxes
- Off-white finish matches standard infrastructure colors for clean, professional appearances in client-visible areas
- Rated for 2,500+ connection cycles with PoE/PoE+ (802.3af/at) and proposed PoE++ Type 3/4 (802.3bt) — supports power-over-Ethernet deployment longevity
- Exceeds ANSI/TIA-568-C.2 and ISO 11801 channel and component requirements for Cat 6 performance
- UL 1863 and UL 2043 plenum-rated, RoHS compliant
- 100-pack format with 500-unit carton quantities for large structured-cabling projects
High-density installations — especially six-port wall plates, 48-port rack panels, and stacked horizontal managers — create tight cable bundles where standard straight wire caps push conductors into violations of the 4× cable-diameter bend-radius rule. The CJLRCAPIW-C's factory-molded 45° angle redirects the cable path before the bend tightens, spreading the curve over a longer distance and keeping signal integrity within spec. This matters for 10GBASE-T links where alien crosstalk and return loss are already operating near margin, and for long PoE runs where conductor heating from Type 3/4 power delivery (up to 90W at the PSE) can accelerate insulation degradation at pinch points. The angled cap eliminates the pinch.
The cap locks onto the rear housing of Panduit TG-style jacks with a snap-fit retention that survives repeated cable swaps — the 2,500-cycle durability rating reflects both the jack's contact-spring life and the cap's mechanical grip under hot-swap conditions. In access-controlled server rooms and IDF closets where adds-moves-changes happen weekly, this durability prevents the loose-cap failures that lead to unsupported cables sagging onto adjacent terminations or catching on hands during panel work. Off-white coloring provides a neutral match to ivory and light-gray faceplates common in office and healthcare settings, maintaining the finished look that separates professional-grade installs from exposed-Ethernet DIY work.
Compliance spans ANSI/TIA-568-C.2 and ISO 11801 for Category 6 component and channel performance, IEC 60603-7 for the 8P8C modular interface, UL 1863 for communications cables and connectivity hardware, and UL 2043 for plenum air-handling spaces. RoHS certification allows deployment in EU and California public-sector projects with material-content restrictions. The cap does not alter the jack's electrical characteristics — it's a mechanical strain-relief component — but its dimensional tolerances ensure it doesn't compress the cable jacket in ways that would degrade pair geometry or increase insertion loss. For integrators running Cat 6A alongside Cat 6 infrastructure, note that this cap is sized for standard Cat 6 cable OD (~0.23 in / 5.8 mm); Cat 6A cables with larger diameters and bonded pairs may require upsized caps from Panduit's Cat 6A accessory line to avoid jacket compression and shield-braid damage at the retention point.
