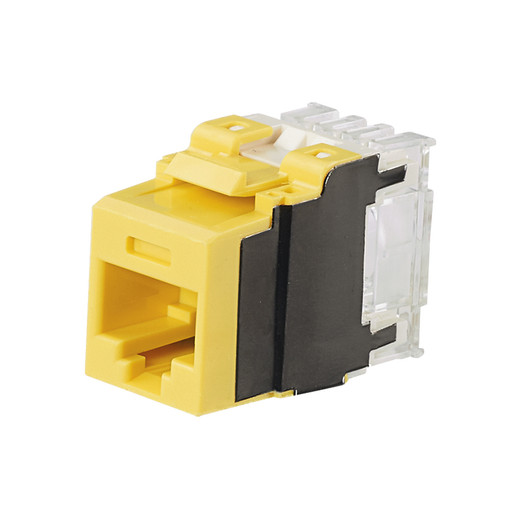

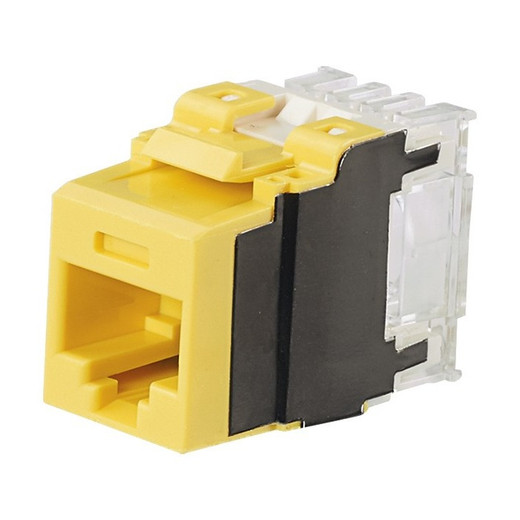

Panduit NK6X88MYL NetKey Cat 6A Keystone Punchdown Jack Module
The Panduit NK6X88MYL is a Panduit NetKey® Cat 6A UTP RJ45 punchdown keystone jack designed for structured cabling installations where long-term reliability and full PoE++ support matter. It terminates 4-pair, 22–26 AWG twisted pair cable and slots into any keystone-compatible faceplate, patch panel, or surface mount box — making it the workhorse connector for enterprise horizontal runs.
Overview
Unlike generic Cat 6A jacks, the NK6X88MYL arrives 100% factory tested to exceed ANSI/TIA-568.2-D and ISO 11801 channel and component performance requirements. Every jack carries an individual serial number for traceability — useful in managed cabling environments where documentation and fault isolation matter. The yellow color designation makes zone-based cabling organization straightforward in high-density patch panel deployments.
Key Features
- 50 Microinch Gold Contacts: Gold plating at this thickness resists oxidation and maintains low insertion loss over the rated 2,500 connection cycles — you won't see the contact degradation that shows up on thinner-plated alternatives after repeated moves, adds, and changes.
- PoE++ (802.3bt) Type 3 and Type 4 Support: Verified to carry IEEE 802.3bt Type 3 and Type 4 power loads alongside 802.3af and 802.3at — meaning this jack won't be the weak link when you're powering high-draw devices like PTZ cameras, 802.3bt access points, or multi-sensor endpoints. Many jacks are only rated to 802.3at; this one covers the full current PoE++ spec.
- Exceeds TIA-568.2-D and ISO 11801: Performance is validated above the minimum standard, not just at it. For channels running at 10GBASE-T or serving as the endpoint for a managed PoE switch port, that margin matters when you're trying to certify a long horizontal run.
- Individual Serialization: Each jack module carries a unique serial number. In environments that require as-built documentation — healthcare, government, financial — this simplifies post-installation audit and troubleshooting without pulling connectors to read labels.
- Compatible with NetKey® Ecosystem: Snaps into Panduit NetKey® faceplates, modular patch panels, and surface mount boxes without adapters. Consistent toolless keystone interface means installation crews aren't fumbling with proprietary tools on the job site.
- UL 1863, UL 2043, and RoHS Compliant: UL 2043 specifically covers plenum-rated airspace — the jack meets the requirements for installation in air-handling ceiling spaces, eliminating the need to specify a separate plenum-rated connector for those zones. RoHS compliance covers standard hazardous-substance requirements for commercial builds.
- 22–26 AWG Termination Range: Accommodates the full range of commercial-grade horizontal cable gauges without requiring gauge-specific punch tools or inserts.
Integration and Compatibility
The NK6X88MYL integrates directly with the full NetKey® hardware family — faceplates, angled and flat patch panels, and surface mount boxes all share the same keystone interface. It is also compatible with third-party keystone interfaces that follow the standard 568-A/B punch-down format. Yellow jacket color is consistent across the NetKey® line for color-coded zone management in multi-VLAN or multi-service structured cabling designs. Sold as a single unit; available in carton quantities of 50 for volume installations.
What's in the Box
- 1x Panduit NK6X88MYL NetKey Cat 6A Keystone Punchdown Jack Module (Yellow)
Frequently Asked Questions
Q: What cable gauges does the NK6X88MYL support?
A: It terminates 4-pair, 22–26 AWG twisted pair cable — covering the full range of standard commercial horizontal cabling.
Q: Is the NK6X88MYL rated for PoE++ (802.3bt) deployments?
A: Yes. The NK6X88MYL is tested to support IEEE 802.3bt Type 3 and Type 4 in addition to 802.3af and 802.3at, making it suitable for high-draw PoE endpoints.
Q: Does the NK6X88MYL fit standard third-party keystone faceplates and patch panels?
A: It is designed for NetKey® interfaces but also fits standard keystone-format faceplates, modular patch panels, and surface mount boxes from other manufacturers that use the common 568-compliant keystone slot.
Q: What performance standard does the NK6X88MYL meet?
A: It exceeds the channel and component requirements of ANSI/TIA-568.2-D and ISO 11801 for Category 6A, and meets IEC 60603-7. It is also UL 1863, UL 2043, and RoHS compliant.
Q: How many connection cycles is the NK6X88MYL rated for?
A: The jack is rated for 2,500 connection cycles, consistent with commercial cabling move/add/change workloads.
Q: Is the yellow color functional or purely cosmetic?
A: It is a visual identifier for structured cabling color-coding schemes (zone, VLAN, or service segregation). All performance specs are identical to other NetKey® Cat 6A jack variants — color does not affect electrical performance.
The spec I point integrators to first on the NK6X88MYL is the 802.3bt Type 3 and Type 4 PoE++ rating — at 90W theoretical maximum on Type 4, most keystone jacks on the market are not validated to carry that current load reliably across 2,500 cycles. If you're terminating horizontal runs that feed 802.3bt PTZ cameras, high-wattage access points, or multi-sensor edge devices, the connector itself is a failure point people underestimate until they're troubleshooting intermittent PoE drops six months post-installation.
Technical Highlights:
- 50µin Gold Contacts: At 50 microinches, gold plating thickness is well above the industry floor — you get consistent low-resistance contact over the full 2,500-cycle rated life, which matters in high-MAC-rate environments like co-working floors and hospital wings.
- Exceeds TIA-568.2-D: Exceeding — not merely meeting — the Cat 6A channel and component standard gives you headroom on longer horizontal runs approaching the 100m limit, where margin is thinner and insertion loss is harder to control.
- UL 2043 Plenum Rating: Covers installation in air-handling ceiling spaces without a separate plenum connector spec — simplifies procurement on mixed-plenum/non-plenum floor plans and keeps the BOM consistent across zones.
Deployment Considerations:
- The 22–26 AWG termination range covers standard horizontal cable gauges, but verify your specific cable spec before ordering in bulk — some thicker-jacket Cat 6A cables can be tight in the punch-down block on initial termination.
- Individual serialization is a genuine asset for as-built documentation, but only if the installation crew actually records jack locations during termination — build that step into your commissioning checklist or the traceability value is lost.
The NK6X88MYL is the right choice for commercial structured cabling projects where the same horizontal infrastructure needs to carry both 10GbE data and full 802.3bt PoE++ power — specifically enterprise security deployments where PTZ cameras and high-wattage IP intercoms terminate into the same patch field as workstations.
