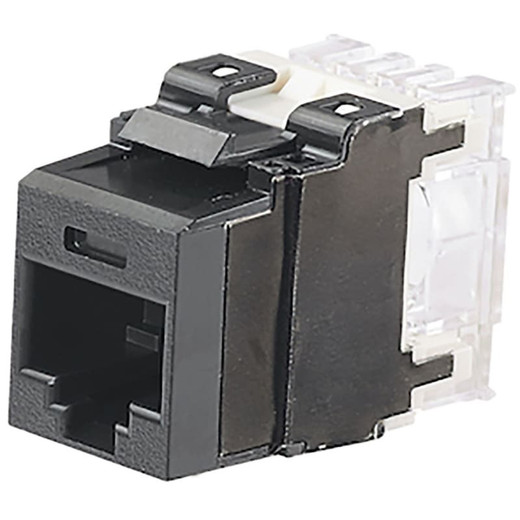

Panduit NK6X88MBU NETKEY CAT6A 8POSITION 8WIRE
Overview
The Panduit NK6X88MBU is a CAT6A keystone jack designed for 8-position, 8-wire termination in structured cabling deployments. It provides a robust connection point for high-speed data networks, ensuring signal integrity for applications requiring up to 10 Gigabit Ethernet performance. This jack is intended for use in patch panels or surface mount boxes where a standard keystone form factor is required for terminating horizontal cable runs.
Compatibility
This keystone jack is designed to terminate 23-26 AWG solid or stranded conductors, commonly found in CAT6A and CAT5e/CAT6 UTP (Unshielded Twisted Pair) network cables. It is compatible with Panduit's NETKEY faceplates, patch panels, and surface mount boxes, as well as standard keystone-compatible wall plates and patch panel systems from other manufacturers. It supports T568A and T568B wiring schemes.
Installation Notes
Termination requires a standard 110-type punch-down tool. Ensure proper conductor seating and insulation displacement for reliable performance. The jack is rated for a minimum of 200 insertions with compatible plugs. For optimal performance, maintain cable bend radius and avoid untwisting pairs excessively during termination.
What's in the Box
- 1x Panduit NK6X88MBU CAT6A Keystone Jack
- 1x Wire termination cap
