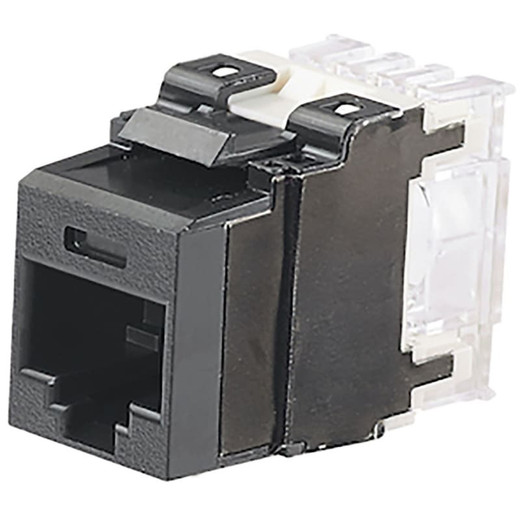

Panduit NK6X88MBL NETKEY CAT6A 8POSITION 8WIRE

Overview

The Panduit NK6X88MBL is a Category 6A keystone jack designed for terminating 8-position, 8-wire (4-pair) twisted-pair cabling. It ensures robust and reliable data connectivity for high-speed Ethernet networks, supporting 10 Gigabit Ethernet performance up to 100 meters. This jack is essential for structured cabling systems in enterprise data centers, commercial buildings, and industrial environments where network integrity is paramount. The NK6X88MBL facilitates clean and organized terminations within patch panels or wall plates.

Compatibility

This keystone jack is compatible with standard keystone-style patch panels and wall plates designed to accept 8P8W (8-position, 8-wire) connectors. It is engineered to meet or exceed Category 6A performance standards, making it suitable for use with 10GBASE-T Ethernet applications. It supports solid and stranded 23-26 AWG copper conductors commonly found in Cat6A installations.

Installation Notes

Termination requires a standard 110-type punch-down tool. Ensure proper conductor seating and color-code adherence to the T568A or T568B wiring schemes indicated on the jack. A minimum bend radius of 4 times the cable diameter should be maintained post-termination to prevent signal degradation. The jack is designed for a single punch-down operation per conductor.
