Panduit MP588-L Concise Descriptor
Overview

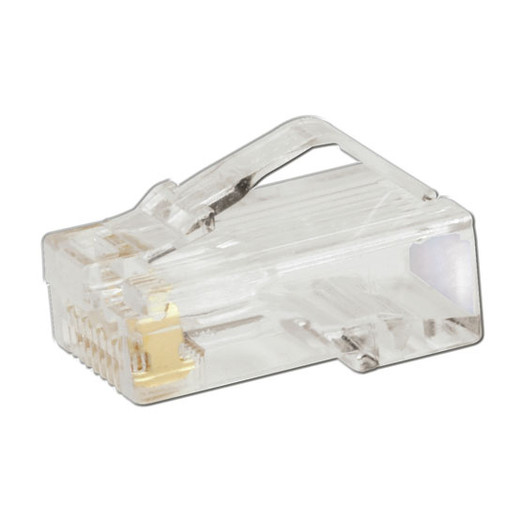

The Panduit MP588-L is a Cat 5e Unshielded Twisted Pair (UTP) modular plug designed for terminating 24-26 AWG solid or stranded copper cable. Its robust construction is rated for 2500 mating cycles, and the patented tangle-free latch simplifies installation by preventing snags and allowing easy release. This plug is engineered for straightforward termination without a load bar, facilitating quick conductor insertion and connection. The MP588-L is suitable for network installations requiring reliable Cat 5e connectivity, including those supporting Power over Ethernet (PoE) applications.
Compatibility
This modular plug is designed for 24-26 AWG, 100-ohm, unshielded twisted pair cable with a maximum conductor insulation diameter of 0.040 inches (1.02mm). It meets all applicable ANSI/TIA-968-A requirements and exceeds IEC 60603-7 specifications. Furthermore, it meets the requirements of IEEE 802.3af and IEEE 802.3at for PoE applications, making it compatible with network devices that utilize these standards for power delivery over Ethernet.
Installation Notes
The Panduit MP588-L features a simplified termination method that requires no load bar. A guide ramp facilitates easy conductor insertion and termination. The plug's UL 94 V-0 flammability rating ensures it meets stringent safety standards for use in plenum or riser spaces. The clear color allows for easy identification of conductors within the plug.
What's in the Box
- 50x Panduit MP588-L RJ45 Cat 5e Modular Plugs
