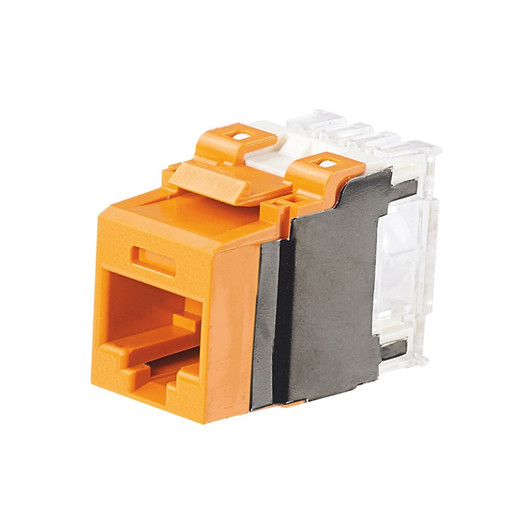

Panduit NK6X88MOR NetKey Cat6A Punchdown Keystone Jack Module – Orange

The Panduit NK6X88MOR is a NetKey® Cat 6A UTP RJ45 punchdown keystone jack designed to terminate 4-pair, 22–26 AWG twisted pair cable in structured cabling systems that need to carry full PoE++ loads. Every jack ships 100% factory-tested to exceed the channel and component requirements of ANSI/TIA-568.2-D and ISO 11801 for Category 6A — not just meet them, exceed them. If you're building or extending a network infrastructure that will carry PoE++ (802.3bt Type 3 and Type 4) devices, this jack's rated connection cycle count and gold contact plating matter more than the color-coded housing.

Key Features

• 50 Microinches of Gold Contact Plating: Gold plating at this thickness resists oxidation and maintains a low-resistance contact interface across the rated 2,500 connection cycles — critical when jacks in structured cabling aren't touched for years and then need to perform reliably during moves, adds, and changes. Cheaper jacks use thinner plating that degrades earlier under repeated mating.
• PoE++ Support — IEEE 802.3bt Type 3 and Type 4: Rated to carry the full 802.3bt power budget, including the highest Type 4 classification. If you're deploying high-draw PoE devices — pan-tilt-zoom cameras, access control readers with integrated heaters, or multi-radio wireless access points — the jack won't be the bottleneck. The 802.3af and 802.3at ratings are also explicitly confirmed, so the same jack handles the full PoE power spectrum.
• 100% Factory Testing to Exceed ANSI/TIA-568.2-D and ISO 11801 Cat6A: Every unit is individually tested before it ships, not sampled. Exceeding (not merely meeting) the channel and component requirements means you have margin against performance degradation over time, connector aging, and installation variables like punch-down quality and cable bend radius.
• Individual Serialization for Traceability: Each jack carries a unique serial number — useful during certification testing, warranty service, or troubleshooting a channel that fails a sweep. When an installer needs to identify and replace a single jack in a 48-port panel without pulling every connection, serialization is the feature that makes that practical.
• Keystone Form Factor — Compatible with NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes: The standard keystone interface means the NK6X88MOR drops into any NetKey® patch panel or faceplate slot without adapters. You're not locked into a proprietary housing — the jack works wherever a standard keystone interface is specified.
• Terminates 22–26 AWG 4-Pair UTP: The AWG range covers both standard solid 23 AWG Cat6A installation cable and the finer-gauge stranded patch cable used in some custom-length work. Confirm conductor type at termination — solid vs. stranded punch-down technique differs and affects long-term contact reliability.
• UL 1863, UL 2043, and RoHS Compliant: UL 2043 specifically covers plenum-space applications (air-handling ceilings and raised floors). If your cabling runs through plenum airspace — common in commercial office builds and some security camera head-end rooms — the UL 2043 rating means you won't need to run conduit or switch to costlier plenum-rated assemblies to pass inspection.
• Orange Color Coding: In high-density patch environments, color coding by port type, VLAN, or department is the fastest way to reduce mispatch errors during MACs. Orange is a common convention for voice or security camera circuits in mixed-use structured cabling plants — but the color only has value if you apply it consistently at design time.

Integration & Compatibility

The NK6X88MOR is part of the Panduit NetKey® copper cabling system and is designed to integrate directly with NetKey® faceplates, modular patch panels, and surface mount boxes using the standard keystone snap-in interface. For security integrators building camera or access control infrastructure on PoE switches, the 802.3bt Type 4 rating means the jack will handle the highest-wattage PoE devices currently deployed without derating. The competitor cross-reference for this jack is the Z6A-K09, useful when sourcing replacements in mixed-vendor environments. Standards conformance includes ANSI/TIA-568.2-D, ISO 11801, IEC 60603-7, UL 1863, UL 2043, and RoHS — covering both performance and environmental compliance requirements typically specified in commercial construction documents.

What's in the Box

• 1x Panduit NK6X88MOR NetKey Cat6A UTP RJ45 Punchdown Keystone Jack Module (Orange)

Frequently Asked Questions

Q: What AWG cable does the NK6X88MOR accept?

A: The NK6X88MOR terminates 4-pair, 22–26 AWG twisted pair cable. Standard Cat6A installation cable is typically 23 AWG solid — that falls within the rated range.

Q: Is the NK6X88MOR rated for plenum installations?

A: Yes. The jack is UL 2043 compliant, which covers use in air-handling spaces (plenum ceilings and raised floors). Check your local fire code and construction documents for whether the plenum rating is required on the jack itself or only the cable jacket.

Q: Does the NK6X88MOR support PoE++ (802.3bt)?

A: Yes. It is explicitly rated to support 2,500 connection cycles with IEEE 802.3af, 802.3at, and 802.3bt Type 3 and Type 4 — the highest PoE power classification currently in the standard.

Q: How many connection cycles is the NK6X88MOR rated for?

A: 2,500 connection cycles under the full PoE load ratings (802.3bt Type 3 and Type 4). For a fixed-wall-plate jack that rarely moves, this is effectively a lifetime rating. For high-churn patch panel positions, it's worth tracking if the port sees unusually frequent repatching.

Q: Is the NK6X88MOR compatible with non-Panduit keystone panels and faceplates?

A: The jack uses the standard keystone snap-in interface, which fits most keystone-compatible panels and faceplates from other manufacturers. Panduit tests and warrants compatibility within the NetKey® system (NetKey® faceplates, modular patch panels, surface mount boxes). Fit in third-party keystone slots varies by manufacturer tolerance — verify before committing to a mixed-vendor installation.

Q: Does each jack have individual traceability markings?

A: Yes. Each NK6X88MOR jack is individually serialized, which supports certification testing documentation, warranty claims, and field troubleshooting when isolating a failed channel in a high-density panel.

Marty Allison

The detail I keep coming back to on the NK6X88MOR is the 50-microinch gold plating on the contacts — that's not a marketing spec, it's the threshold where contact resistance stays stable across the full rated 2,500 connection cycles under 802.3bt Type 4 loads. Thinner plating oxidizes faster, and oxidized contacts mean elevated resistance at the worst possible time: when you're trying to diagnose a high-power PTZ camera that keeps resetting.

Technical Highlights:

• 802.3bt Type 4 PoE++ Rating: Explicitly validated to carry the highest PoE power classification across 2,500 connection cycles — not just rated to pass signal, but rated under full electrical load. That distinction matters for camera and access control infrastructure where jacks sit under continuous PoE draw for years.
• Exceeds ANSI/TIA-568.2-D and ISO 11801 Cat6A: 100% factory-tested to exceed (not meet) the channel and component requirements. The margin above minimums absorbs installation variables — punch-down depth, cable bend radius, proximity to EMI sources — that a jack tested to the exact minimum can't accommodate.
• UL 2043 Plenum Compliance: Commercial security installs regularly run horizontal cable through plenum airspace. UL 2043 on the jack itself (not just the cable) is what AHJs want to see in a plenum-certified channel. Skipping this and using a non-plenum jack in a plenum-rated channel is an inspection failure waiting to happen.

Deployment Considerations:

• The 22–26 AWG termination range covers standard 23 AWG solid Cat6A installation cable, but verify your cable's actual gauge before punching down — oversized or undersized conductors outside this range won't seat correctly in the IDC contacts and will fail channel certification testing.
• Color coding only adds value if it's documented and enforced at design time. Ordering all orange jacks for a camera VLAN is a sound practice, but you'll need the matching convention in place before the first technician punches down — retrofitting color discipline into an already-wired panel is a full re-patch job.

For commercial security projects deploying high-power PoE cameras or access control hardware through a NetKey® structured cabling plant, the NK6X88MOR is the correct jack to specify — particularly in plenum spaces where UL 2043 compliance is an inspection requirement and the 802.3bt Type 4 rating eliminates the jack as a variable when troubleshooting power delivery issues at the endpoint.
