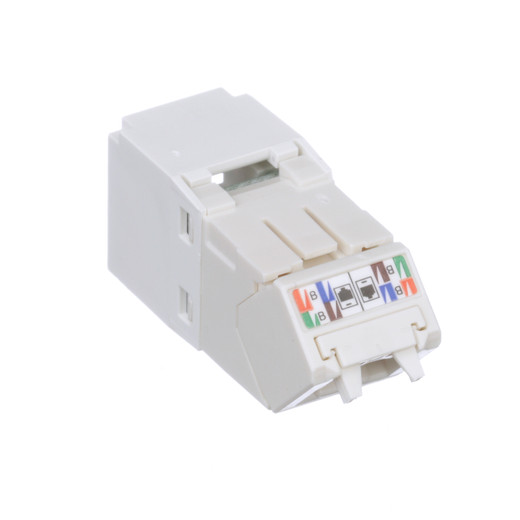

Panduit CJUD688TGAW Jack Module
Panduit CJUD688TGAW Jack Module
CJUD688TGAW
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Panduit CJUD688TGAW Jack Module

Overview

The Panduit CJUD688TGAW is a Mini-Com® Cat 6 UTP RJ45 Up/Down 45° Angled TG Jack Module designed for terminating 4-pair, 22-26 AWG twisted pair cable. Its angled design improves cable routing to jacks in confined spaces, such as behind wall plates or within patch panels where space is at a premium. This module is 100% factory tested to exceed ANSI/TIA-568.2-D and ISO 11801 channel and component requirements for Category 6 performance. The TG style termination simplifies installation by eliminating the need for a specialized punch-down tool.

Compatibility

This jack module is compatible with Mini-Com Modular Patch Panels and Faceplates. It supports IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++ up to Type 4) power delivery standards, ensuring it can handle connected devices requiring significant power over Ethernet without performance degradation. It is also UL 1863 and UL 2043 compliant.

Installation Notes

The TG style termination is designed for tool-less termination, simplifying the installation process. Each jack module is individually serialized for traceability. The module meets IEC 60603-7 and supports 2500 connection cycles.

Expert Analysis
Specifications
Poe Power: PoE++ (802.3bt)
Sub Brand: Pan-Net®
Color: Arctic White
Height In: 0.71
Height Mm: 18
Width In: 0.62
Width Mm: 15.7
Product Type: Jack Module
Carton Qty: 50
Package Qty: 1
Upc: 61305644976
Cable Category: copper-systems
Q&A
Reviews
Product Video
Have Questions?

Panduit CJUD688TGAW Jack Module

$19.73
$14.99
