Panduit CJUD688TGBU Jack Module
Panduit CJUD688TGBU Jack Module
CJUD688TGBU
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

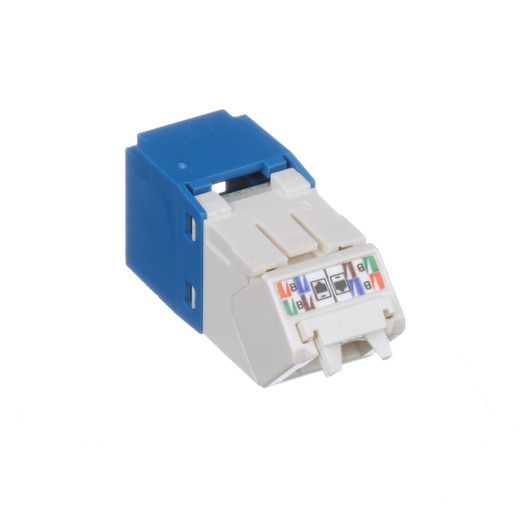

Panduit CJUD688TGBU Jack Module

Overview

The Panduit CJUD688TGBU is a Cat 6 UTP RJ45 Up/Down 45° Angled TG Jack Module designed for terminating 4-pair, 22-26 AWG twisted pair cable. Its angled design improves cable routing in tight spaces, making it ideal for installations where direct vertical runs are not feasible. This module is 100% factory tested to exceed industry standard performance requirements, ensuring reliable data transmission. The TG style termination eliminates the need for a specialized termination tool, simplifying the installation process.

Compatibility

This jack module is compatible with Panduit Mini-Com Modular Patch Panels and Faceplates. It supports IEEE 802.3af, 802.3at, and 802.3bt Type 3 and Type 4 Power over Ethernet (PoE++) standards, ensuring it can handle the power requirements of PoE-enabled devices without compromising data integrity. It exceeds the channel and component requirements of ANSI/TIA-568.2-D and ISO 11801 standards for Category 6 copper systems.

Installation Notes

The TG style termination is designed for tool-less termination, simplifying field installation. Each jack is individually serialized for traceability. The module exceeds channel and component requirements of ANSI/TIA-568.2-D and ISO 11801 standards for Category 6. It is UL 1863 and UL 2043 compliant, and RoHS compliant.

Expert Analysis
Specifications
Poe Power: PoE++ (802.3bt)
Sub Brand: Pan-Net®
Color: Blue
Height In: 0.71
Height Mm: 18
Width In: 0.62
Width Mm: 15.7
Product Type: Jack Module
Carton Qty: 50
Package Qty: 1
Upc: 61305644978
Cable Category: copper-systems
Q&A
Reviews
Product Video
Have Questions?

Panduit CJUD688TGBU Jack Module

$19.73
$14.99
Add to Cart
