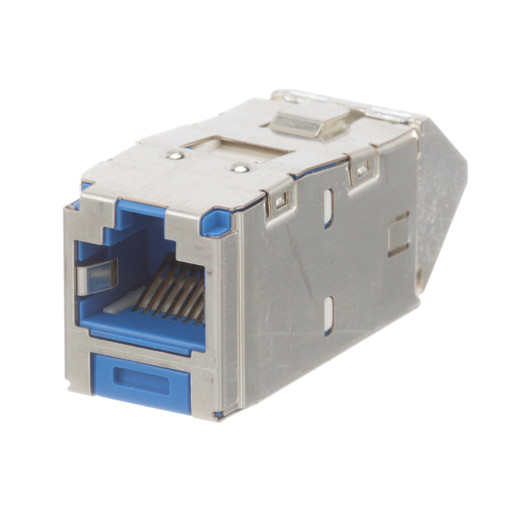

Panduit CJSUD6X88TGBUY Jack Module

Overview

The Panduit Mini-Com® Cat 6A Shielded RJ45 Up/Down 45° Angled TG Jack Module, model CJSUD6X88TGBUY, is engineered for terminating shielded 4-pair, 22-26 AWG twisted pair cable. Its angled design is specifically intended to improve cable routing in installations where space is constrained, such as in high-density network racks or wall plates. This module is 100% factory tested to ensure it surpasses industry standard performance requirements for Category 6A performance.

Compatibility

This jack module is designed for use with Panduit Mini-Com Modular Patch Panels and Faceplates. It is compatible with shielded 4-pair, 22-26 AWG twisted pair cable. The TG style termination simplifies the termination process, eliminating the need for specialized termination tools. It meets IEC 60603-7 standards and supports 2500 connection cycles.

Installation Notes

The TG style termination requires no specific termination tool. Each jack is individually serialized for traceability. The module supports IEEE 802.3af, 802.3at, and 802.3bt Type 3 and Type 4 Power over Ethernet (PoE++) standards, indicating it can handle the higher power requirements of PoE++ devices without issue. Standards met include ANSI/TIA-568.2-D and ISO 11801 for the respective category, UL 1863, UL 2043, and RoHS compliance.
