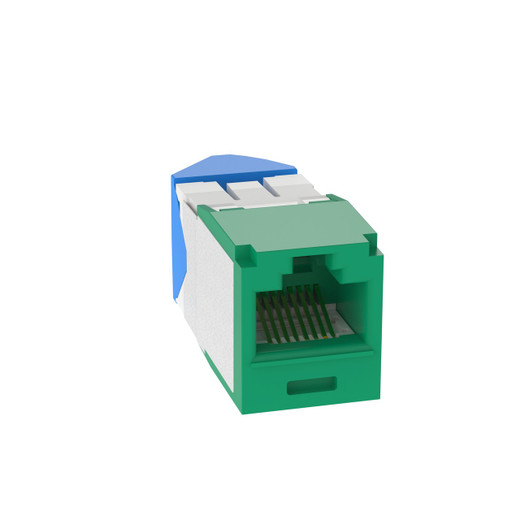

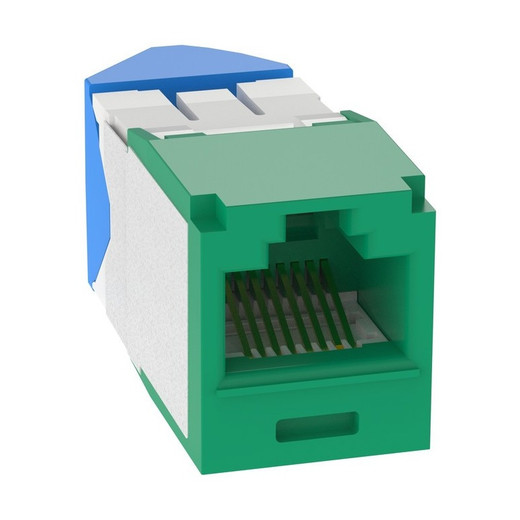

Panduit CJLR6X88TGGR Module Jack

Overview

The Panduit CJLR6X88TGGR is a Mini-Com™ UTP RJ45 Cat 6A module jack featuring a 45-degree left/right angle configuration. This design is specifically engineered to facilitate cable routing in confined spaces, such as behind wall plates or within densely populated racks. Each module undergoes 100% factory testing to ensure it surpasses industry standard requirements, providing reliable performance for high-speed data transmission. The TG-style termination eliminates the need for a dedicated punch-down tool, simplifying installation. The CJLR6X88TGGR is suitable for high-density network deployments where space is at a premium.

Compatibility

This module jack is compatible with all Panduit Mini-Com™ modular patch panels and faceplates. It supports 22-26 AWG, 4-pair twisted-pair copper cabling. The jack is designed to meet or exceed the channel and component requirements of ANSI/TIA-568.2-D and ISO 11801 standards for Category 6A performance. It is also compliant with IEC 60603-7 specifications.

Installation Notes

The TG-style termination is designed for tool-less termination, reducing installation time and the risk of over-termination. The 45-degree angle is crucial for managing cable bend radius and preventing strain in tight installations. The jack supports IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) Power over Ethernet applications, drawing power without compromising data integrity. Each jack includes an individual serial number for traceability.
