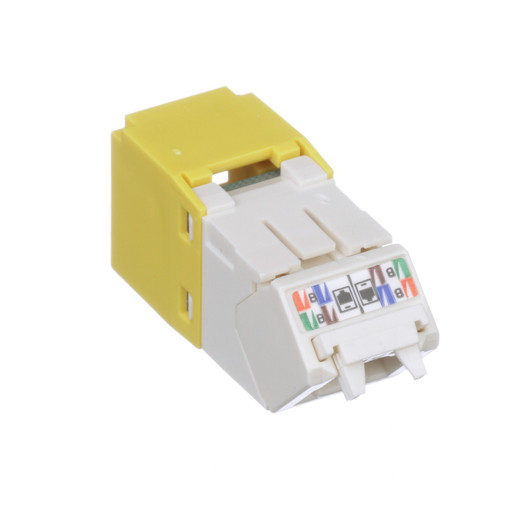

Panduit CJUD688TGYL Module Jack

Overview

The Panduit CJUD688TGYL is a Cat 6 UTP RJ45 module jack designed with a 45-degree UP/DOWN angle. This specific form factor is engineered to improve cable routing in constricted installation environments, such as wall plates or patch panels where space is at a premium. It terminates 22-26 AWG, 4-pair twisted-pair cable and is factory tested to exceed industry channel performance requirements. The TG-style termination eliminates the need for a punch-down tool, simplifying the installation process for technicians.

Compatibility

This module jack is compatible with Panduit's Mini-Com modular patch panels and faceplates. It meets ANSI/TIA-568.2-D and ISO 11801 channel and component requirements for Category 6 performance. The CJUD688TGYL supports IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++ up to Type 4) applications, ensuring it can handle power delivery for connected devices without performance degradation.

Installation Notes

The TG-style termination is designed for tool-less connection, accepting 22-26 AWG solid or stranded cable. Each jack features an individual serial number for traceability. The angled design is specifically intended for installations where standard straight-through jacks would create excessive bend radius or physical conflict with adjacent ports or wall materials.
