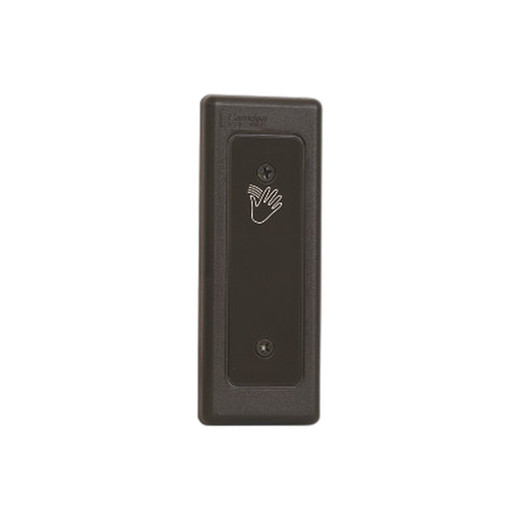

Camden CM-222/46W ValueWave Touchless Switch Double Gang
Overview
The CM-222/46W is a double gang touchless exit switch built on active infrared microburst sensor technology. It eliminates physical contact activation for access control and automatic door systems — a direct solution for ADA-compliant facilities, healthcare environments, and high-traffic areas where reducing cross-contamination is a priority. The unit operates at 24VDC and draws 46W, designed to integrate with electromagnetic lock strikes in network-connected access control infrastructure.
Compatibility
The CM-222/46W works with 24VDC electromagnetic lock hardware and network-connected access control platforms. It provides dual relay contact outputs (Common/N.O./N.C. on both PIR sensor and pushbutton lines) rated 1 Amp at 30 VDC — sufficient to trigger standard solenoid strikes or remote signaling devices in multi-door access control systems. The built-in blue and green LED indication (factory default: blue standby, green triggered) can be controlled by the sensor or externally through a third-party application, enabling integration with guard stations and annunciator systems.
Installation Notes
The sensor operates over 12–24 VDC +/- 10% — confirm your power supply meets this range before installation. Adjustable detection range spans 2 to 8 inches (5 to 20 cm) and time delay from 0.5 to 20 seconds, both tunable on-site to match door traffic patterns and response timing requirements. IP65 rating handles institutional humidity and cleaning spray without performance degradation. Response time is 10ms; temperature operating range is -13°F to 122°F (-25°C to 50°C). The double gang form factor (4.5" H × 2.75" W × 1.25" D) fits standard US wall openings. Do not apply AC voltage to this unit — DC supply only.
