Camden CM-AF500 Single Gang LED Illuminated Annunciator

We've deployed the CM-AF500 in hospital secure corridors, fintech server rooms, and government check-in areas—anywhere occupancy or lock status must communicate silently without audio distraction or visual "come here" cues. The invisible-when-off design is the real security win. Standard illuminated signs glow continuously and broadcast status to anyone in the hallway; the CM-AF500 remains dark until the access control system energizes it. On a badge-reader at a secure entrance, that difference eliminates the social-engineering vector of a glowing "Unlocked" sign that signals to a tailgater when entry is possible. We've seen integrators pair it with motion-triggered access control and sounder relays—when motion is detected and the door is armed, the annunciator lights "Armed" (Red) silently; if a valid card is presented, it switches to "Unlocked" (Green) and triggers the strike. No noise, no ambient glow, just status confirmation to the authorized user. The field-selectable voltage is a practical gift—we install it on whatever 12V or 30V power rail the customer already has running to the door, eliminating a separate supply run.

Technical Highlights:

• LED Illumination Technology: High-brightness output visible in daylit lobbies and dim secure corridors. When de-energized, text and graphics are entirely invisible—no ambient glow or accidental disclosure of occupancy/lock state. This is the core differentiator versus standard illuminated push buttons.
• Field-Selectable 12/30V AC/DC: Jumper configuration (no soldering, no special tools) adapts the unit to whatever low-voltage power infrastructure is already deployed. In a 12V access control system, no transformer needed; in a 24/30V strike power supply, it integrates directly. Simplifies BOM and reduces commissioning time.
• Single Gang Form Factor: Mounts in standard electrical box cutouts. No extended rough-in, no custom gang boxes, no special fasteners. Pairs directly with existing card readers, push buttons, and sounder modules in the same box—critical for retrofit installations where wall space is limited.

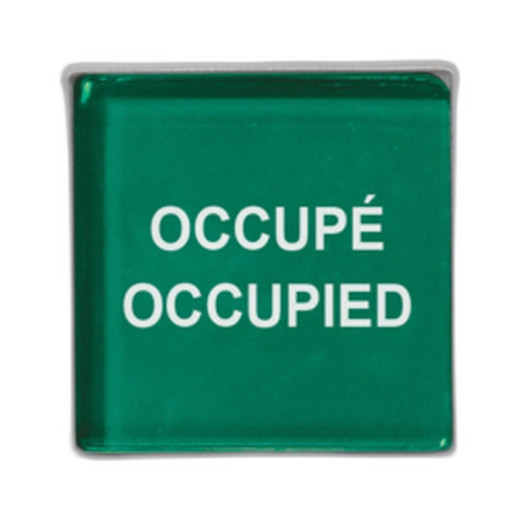

• Pre-Printed Label Library: Six included message sets (Occupied/Occupé bilingual, Armed, Locked, Unlocked) cover 95% of access control scenarios. Custom silkscreen labels available—we've specified custom "Please Scan Badge" and "Door Held Open" labels for specific client workflows without any lead-time penalty.
• Relay Output / Strike Integration: Wired contact output energizes strikes, sounder relays, or status monitoring circuits in response to access control system logic. No networking required—pure hardwired logic, which is a major advantage in environments where cyber-isolation or air-gapped security is mandated.

Deployment Considerations:

• Voltage stability matters more than you'd expect. If the 30VDC supply sags below 24V under load (e.g., multiple annunciators, high-current strike on the same rail), LED brightness dims noticeably. In larger installations with 4+ annunciators, dedicate a separate 30VDC PSU ≥2A to the annunciator circuit; don't share it with maglock or fail-safe strike supply rails.
• The invisible-when-off design is a security feature, not a limitation. In standard corridor lighting, an unlit annunciator looks like a blank faceplate. Some end-users initially worry it's "broken"—frame the feature in your commissioning documentation and training as intentional security design (no ambient status glow = no social-engineering vector).
• Label visibility depends on contrast and viewing angle. Pre-printed labels are high-contrast (white text on black or colored background), legible from 3-4 feet away when illuminated. If your site requires visibility from >10 feet, consider pairing with a larger sounder or beacon in a secondary location.

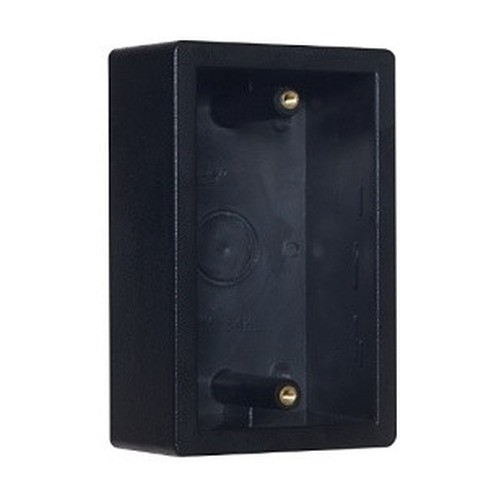

• Single gang box space is constrained. If your enclosure also houses a card reader module and a relay interface, verify rough-in spacing before installation. Backbox depth ≥2 inches is standard; shallow retrofit boxes may require careful wire management.
• For audible alert requirements, the CM-AF500 alone is silent. Pair it with a relay-triggered 85dB sounder (CM-AF501SO) or a wall-mounted 95dB exit sounder on a separate 24V supply if door-held or unauthorized-exit alarms are required.

The CM-AF500 is the choice for integrators building silent, visually minimal access control interfaces in secure and healthcare environments where occupancy status must be communicated without audio distraction or ambient glow. If your project is in a general retail or warehouse setting where visual/audio confirmation is secondary, a simpler illuminated push button may suffice. But for fintech, healthcare, and government deployments, the invisible-when-off design and quiet relay output make it worth specifying. For related annunciator options and column-style switches, see the Camden catalog.
