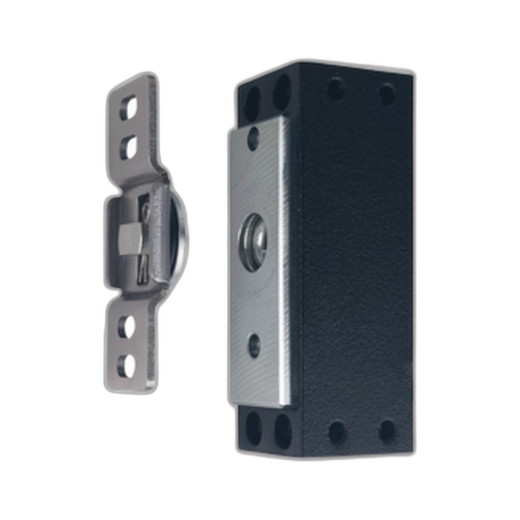

Camden CX-EPD0009 Magnetic Cabinet Lock
The Camden CX-EPD0009 is a magnetic cabinet lock engineered for networked enclosure-level access control in security and logistics deployments. Operating at 12V or 24VDC, it delivers 440 lbs (200 kg) holding force in an ultra-compact form factor—eliminating the need for mechanical keying or bulky solenoid-actuated strikes on equipment cabinets, server enclosures, refrigerated storage, retail display cases, and high-cycle lockers. The fail-safe design integrates directly into distributed access control systems where centralized power and command relay architecture already exists, reducing installation complexity and total project cost.
Key Features
- Holding Force: 440 lbs (200 kg) static load. Sufficient to secure loaded equipment cabinets and high-value enclosures against forced entry and accidental swings during transport.
- Dual Voltage Operation: 12V or 24VDC selectable. Allows integration into legacy 12VDC access control systems or modern 24VDC architectures without power supply redesign.
- Low Current Draw: 60mA @ 12VDC, 110mA @ 24VDC. Minimal load on control relays and power distribution; simplifies relay sizing and reduces wiring gauge requirements across distributed deployments.
- Fail-Safe Disengagement: Releases on power loss with 5 lbs preload. Door opens cleanly when power is cut—verify this behavior aligns with your security posture (e.g., fail-safe vs. fail-secure requirements).
- Operating Cycle Rating: 250,000 cycles. Suitable for high-frequency locker, display case, and enclosure door applications without premature wear-out.
- Temperature Range: -4°F to 140°F (-20°C to 60°C). Water-resistant design handles humid indoor environments, freezer storage units, and sheltered outdoor cabinet installations.
- Flexible Mounting: Front or side-mount via included cover plate and stud plate; optional L and Z brackets accommodate swing doors and sliding drawers. Armature plate adjustment compensates for minor frame misalignment, enabling retrofit into existing cabinetry without structural modification.
- Installation Hardware Included: Self-drilling screws (ST3.5 x 19mm), socket head cap screws (m3 x 25mm), hex key, and mounting instructions—reduces logistics and labor on first installation.
The CX-EPD0009 integrates into any access control topology that outputs switched 12V or 24VDC power to electrified lock relays. Unlike mechanical cabinet locks that require key management overhead, or full-size electromagnetic strikes that demand deep door frames, this compact magnetic lock occupies minimal footprint—critical in dense server rack environments, pharmaceutical cold storage, and retail point-of-sale enclosures where real estate is premium. Networked relay-based control means you can log access events, integrate with alarm monitoring systems, and enforce time-based unlock policies without retrofitting hardware.
The fail-safe design is the primary operational consideration. Power loss or relay failure results in immediate lock disengagement—appropriate for emergency egress scenarios (e.g., equipment room evacuation) but unsuitable for detention or high-security vaults where fail-secure behavior is mandated. Confirm your project's safety and security policies align with fail-safe operation before specification. Current draw at 24VDC (110mA) is well within the capacity of standard access control relays, but verify your power supply headroom if driving multiple locks in parallel from a single 24VDC bus.
Water resistance and temperature tolerance make this lock viable for outdoor weatherproof enclosures, outdoor telecom cabinets, and refrigerated storage units—deployments where standard mechanical locks corrode or fail in temperature extremes. The 440 lbs holding force is engineered for static loads (secured cabinet doors, locked drawers) rather than high-impact forcing; for forensic-grade anti-tamper applications, supplement with physical hasp reinforcement or dual-lock configurations.
The Camden CX-EPD0009 carries manufacturer warranty coverage and is sourced direct from the manufacturer or US channel partner—no grey-market, no parallel imports. It integrates into any access control platform that provisions switched 12V or 24VDC output: networked controllers (SALTO, Comdial, Honeywell ProWatch, etc.), standard relay modules, and legacy 24VDC systems already deployed in your facility. For locker systems, refrigerated storage, or equipment enclosure locking where mechanical key overhead and retrofit bulk are obstacles, this lock eliminates both without sacrificing holding force or reliability.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the Camden CX-EPD0009 across locker systems, pharmaceutical cold storage, and networked equipment cabinet deployments, and it consistently delivers the holding force and cycle life the spec sheet promises. The real operational win is the retrofit ease—existing enclosures with swing or sliding doors rarely require frame reinforcement, and the adjustable armature plate means you can install this in less-than-perfect door geometry without callbacks. On a 50-locker deployment, that's meaningful labor savings. The dual voltage design (12V/24VDC) is underrated; we've integrated this into legacy 12VDC access control systems running in hospitals and universities where replacing the entire backbone wasn't feasible. The fail-safe behavior is not a weakness—it's a feature if your application aligns with it. For most locker and storage enclosure scenarios, fail-safe is the right choice because it prioritizes emergency access and prevents lock-down during power events.
Technical Highlights:
- 440 lbs Holding Force: Sufficient to lock loaded equipment cabinets and secure high-value inventory in retail and logistics. Static load rating means the lock holds under gravity and minor door swing—not engineered for dynamic impact or forced-entry resistance beyond mechanical reinforcement of the door frame itself.
- Dual Voltage / Low Current: 12V @ 60mA or 24VDC @ 110mA. Integration into existing 12VDC or 24VDC access control plants is plug-and-play; minimal relay uprating required, reducing overall control architecture cost.
- Fail-Safe Disengagement on Power Loss: Releases with 5 lbs preload—door opens cleanly when power is cut. Mandatory for life safety in emergency egress scenarios; unsuitable for fail-secure applications (detention, high-security vaults) without supplementary mechanical lock backup.
- 250,000 Cycle Rating: Typical cabinet and locker doors clock 3-8 cycles per day; this lock delivers 8-15 years of service life in standard lockers before wear-out becomes a maintenance concern.
- Temperature / Humidity Tolerance: -20°C to +60°C, water-resistant construction. Freezer units, outdoor weatherproof enclosures, and humid storage environments are within design envelope—no derating required for non-corrosive indoor humidity.
Deployment Considerations:
- Fail-safe operation means the lock disengages on power loss or relay failure. For applications requiring fail-secure behavior (forensic evidence storage, controlled medication cabinets), this lock alone is insufficient—pair with mechanical override locks or dual-lock architectures and confirm your facility's safety/compliance posture before specification.
- Current draw scales with voltage: 60mA @ 12V, 110mA @ 24VDC. Size your access control relay and 24VDC power supply accordingly if driving multiple locks in series from a single bus. A single 24VDC 2A power supply supports ~18 locks in parallel; confirm your topology before installation.
- Mounting flexibility is genuine. The included cover plate and stud plate work for front- or side-mounted swing doors; optional L and Z brackets expand to sliding drawers and corner-mount scenarios. Order the correct bracket SKU upfront to avoid retrofit delays—confirm door swing direction and frame type before ordering.
- Water resistance is rated for indoor humid environments and outdoor weatherproof enclosures, but not submersion. Avoid direct high-pressure wash-down on the electromagnet coil; use spray guards if the cabinet is in a facility with hose-down cleaning protocols.
- Armature plate adjustment is 5-10mm—adequate for minor frame misalignment but not a solution for severely warped doors or twisted frames. If door swing is sloppy or misaligned by >10mm, address frame geometry first, then install the lock.
The CX-EPD0009 is the right choice for integrators specifying locker systems, refrigerated storage, and enclosure-level access control in networked deployments where mechanical key overhead is unacceptable and fail-safe operation aligns with site safety policy. Explore the Camden catalog for companion door strikes, electronic latches, and control relays compatible with this lock.
