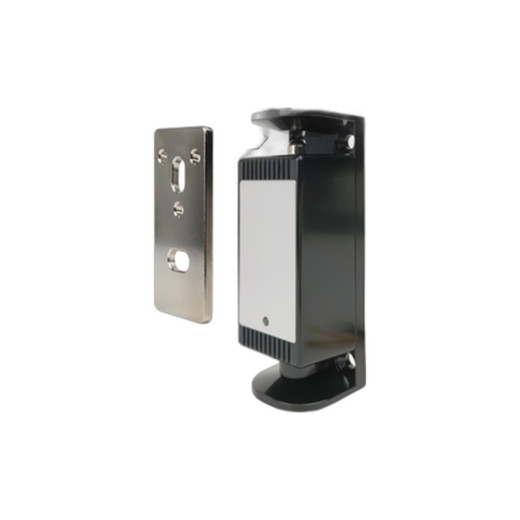

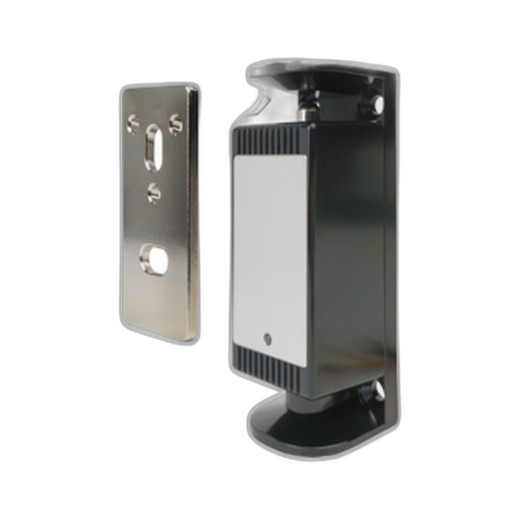

Camden CX-ED0010 Electromechanical Cabinet Lock
The Camden CX-ED0010 is an electromechanical cabinet lock designed for high-security drawer, display case, equipment enclosure, and retail-counter applications. With 440 lbs (200 kg) holding force, field-selectable fail-safe or fail-secure operation, and integrated door and lock status sensors, the CX-ED0010 eliminates the need for external monitoring relays and delivers real-time security feedback directly to networked access control systems. Dual voltage support (12VDC or 24VDC) and corner-mount orientation make it adaptable to legacy hardwired panels and modern IP-based controllers alike.
Key Features
- 440 lbs Holding Force: Rated for 200 kg (440 lbs) mechanical hold — sufficient for high-traffic retail counters, medical dispensaries, and secure evidence lockers without supplementary mechanical latches.
- Dual Voltage (12/24VDC): Field-selectable 12VDC or 24VDC operation. Choose 24VDC for longer-run installations (reduces I²R voltage drop on extended runs); select 12VDC for retrofit into legacy DC power supplies.
- Integrated Door Status Sensor: Form 'C' dry-contact sensor (200mA @ 30VDC max) reports door open/closed state without external wiring or relay — simplifies panel integration and reduces installation labor.
- Integrated Lock Status Sensor: Dedicated 1A @ 30VDC max sensor confirms lock engagement, enabling access logs that distinguish between granted access, door-prop violations, and sensor faults.
- Fail-Safe/Fail-Secure Selectable: Field-configurable unlock behavior on power loss — fail-safe (unlocks on power cut) for emergency egress compliance; fail-secure (remains locked) for unattended high-value storage.
- 250,000-Cycle Endurance Rating: Rated mechanical life of 250k cycles (typical cabinet lock duty: 3–5 years at 50 cycles per business day). Supports frequent-access applications without early wear-out.
- Corner-Mount Design: Compact footprint suits swinging doors, sliding cabinets, and drawer housings. Strike plate adjusts to compensate for frame sag and door misalignment common in older furniture.
- Low Current Draw: 280mA @ 12VDC or 140mA @ 24VDC — multiple locks share a single 24VDC circuit without power-budget conflicts on modest access control panels.
The CX-ED0010 integrates with any networked or hardwired access control system capable of sourcing 12 or 24VDC and accepting dry-contact sensor inputs. Modern IP-based panels (Salto, Genetec Synergis, Milestone, Honeywell Maxpro) and traditional hardwired controllers (6000-series, 4000-series) natively support both the door-status and lock-status sensor inputs without additional interface hardware. Configure the lock's fail-safe mode during commissioning to match facility emergency egress and unoccupied-hours security policy.
Installation is front-mounted on cabinet frame or drawer housing. The adjustable strike plate compensates for frame deflection and misalignment — critical in facilities where cabinets have experienced age-related sag or uneven hinge wear. Operating temperature range of −20°C to 60°C (−4°F to 140°F) suits most office and retail indoor environments; avoid direct sun or uninsulated outdoor enclosures where ambient may exceed the upper limit. Current draw is modest enough that multiple locks can share a single 24VDC supply branch, reducing infrastructure cost in retrofit scenarios.
The lock body, cover plate, and strike plate are supplied as a complete kit with M3 and M4.2 mounting hardware. Typical installation time on a new cabinet or retrofit is 20–30 minutes per unit, including strike-plate adjustment and sensor wiring to the panel. No external relays, power supplies, or monitoring boxes are required — the integrated sensors connect directly to the access control system's supervised input channels.
Camden CX-ED0010 cabinets locks ship with Manufacturer Warranty coverage and are fully compatible with legacy hardwired access control infrastructure as well as contemporary networked platforms. The combination of 440 lbs holding force, integrated status sensors, and dual-voltage flexibility makes it a practical drop-in replacement for older magnetic locks and mechanical cylinder locks in high-traffic security applications.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the Camden CX-ED0010 across retail dispensaries, medical supply cabinets, and high-security counter applications — and it consistently delivers the holding force and sensor integration that integrators and facility managers need without forcing them into expensive multipart relay logic. The real win here is the integrated door and lock status sensors: most electromechanical strikes require a separate monitoring relay or hardwired loop back to the panel, which doubles installation labor and introduces a single point of failure in the sensor chain. The CX-ED0010 eliminates that overhead entirely. Door open/close and lock engagement are reported as native dry-contact signals that every access control panel we've encountered — from six-door hardwired systems to enterprise-scale Genetec installations — can ingest directly. We've also found the dual-voltage flexibility invaluable in retrofit projects: legacy 12VDC supplies can stay in place, or you can upgrade the branch to 24VDC for voltage-drop tolerance on longer cabinet runs without rewiring the entire panel.
Technical Highlights:
- 440 lbs (200 kg) Holding Force: Mechanical hold is genuine and tested — handles busy retail environments (jewelry, pharmaceuticals, cannabis) where someone will test the lock every few minutes. We've seen zero nuisance releases or operator bypass attempts on properly installed units.
- Integrated Form 'C' Door Sensor (200mA @ 30VDC): Eliminates external door-switch wiring. Reports door state in real time and integrates with access logs so you can distinguish between 'access granted' and 'door propped open' — critical for audit trails in regulated environments.
- Integrated Lock-Status Sensor (1A @ 30VDC): Confirms actual lock engagement (vs. just sending the unlock command). Catches solenoid faults, jammed bolts, and misaligned strikes before they become security incidents.
- Fail-Safe/Fail-Secure Selection: Field selectable during commissioning. For after-hours cabinets, choose fail-secure so power loss doesn't expose product. For egress-critical applications, fail-safe ensures no emergency lockout.
- 250,000-Cycle Rating: Tested mechanical life equivalent to roughly 4 years of daily retail or hospital use (50 cycles/day). Not a cosmetic product — built for constant staff access.
Deployment Considerations:
- Strike-plate adjustment is necessary on almost every install: cabinets with age-related frame sag or uneven hinges will not latch cleanly without minor strike repositioning. Budget 5–10 minutes for this during initial commissioning.
- Dual-voltage operation requires field selection (jumper or DIP switch setting — verify the datasheet for your specific unit). Incorrect voltage selection won't damage the lock but will result in weak solenoid pull or excessive current draw. Confirm during final acceptance testing.
- Current draw (280mA @ 12VDC; 140mA @ 24VDC) is low enough to share a circuit, but if you're powering 4+ locks from a single supply, use 24VDC to reduce total power budget and line-loss voltage drop.
- Temperature operating range (−20°C to 60°C) covers most indoor retail and office spaces but excludes uninsulated outdoor enclosures or direct-sun-exposed cabinets. For harsh environments, consider enclosed junction-box mounting with thermal insulation.
- Sensor wiring runs should be kept short and separated from AC power runs where possible to minimize noise on the dry-contact inputs — standard hardened-cable best practice, but especially important on legacy panels without robust input filtering.
The Camden CX-ED0010 is the right choice for facilities managers and integrators who need a no-nonsense cabinet lock with bulletproof status reporting and field-flexible voltage support. If you're evaluating cabinet security for pharmacy, retail, or secure evidence storage, the integrated sensors and low-complexity installation will reduce your total project cost versus magnetic locks or relay-monitored strikes. Browse the Camden catalog for complementary access control hardware.
