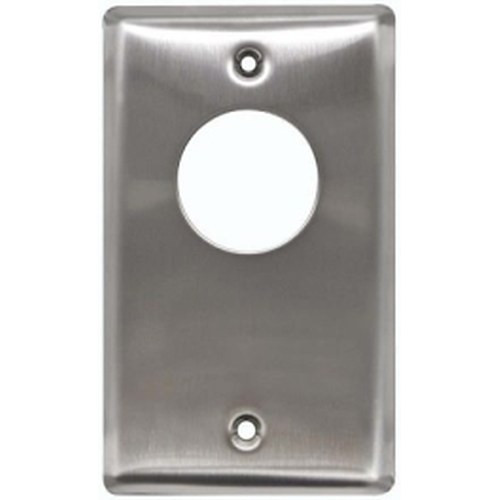

Camden CM-1270 Key Switch SPDT Momentary and Maintained

We've deployed the CM-1270 in a range of commercial and industrial access control retrofits, and it fills a specific gap: sites where manual key override or auxiliary signaling must coexist with electronic locking. The dual-mode capability—baked into the assembly at factory—simplifies procurement and eliminates field reconfiguration mistakes. One common scenario is a high-security vestibule where a security officer uses a key switch to momentarily pulse an electromagnetic lock open during a normal unlock event, but also needs a maintained contact to shunt the electronic lock during emergency evacuation or maintenance. Rather than mounting two separate switches side by side (clutter, confusion, wiring overhead), the CM-1270 does both with a single footprint. The trade-off is that you must decide at procurement time whether you want momentary or maintained operation; there's no in-field jumper to flip if requirements change. That means early coordination with the access control integrator and the end-user's operational team is critical.

Technical Highlights:

• 30VDC Switching: Matches legacy and modern industrial control power supplies. Verify your strike or solenoid lock draw against the CM-1270 contact rating—undersizing can lead to contact arcing and premature failure. Standard industrial control voltage avoids the need for step-down transformers or auxiliary relays in most retrofit scenarios.
• SPDT Contact Geometry: Single Pole Double Throw gives you both a normally-open and normally-closed path from a single key switch, allowing flexible wiring logic. This is useful when your control system needs both an activation signal and a status-confirmation path from the same device.
• Mortise Cylinder Modularity: Because the cylinder is sourced separately, you can specify keying, security grade, and material (brass, stainless) independently. We've standardized keying across entire facilities by sourcing cylinders in bulk from a master locksmith and installing them into multiple CM-1270 assemblies—saves cost and simplifies master-key strategy.
• Tamperproof Fastening: Standard socket and slotted screws for authorized maintenance, with tamperproof cap screws to resist casual tampering. In high-traffic or outdoor-exposed locations, the hardware choice matters; we've seen sites where theft of strike activation hardware is a real concern, and the included tamper driver discourages quick disassembly.
• One-Piece Casted Assembly: No modular parts inside—no springs or plungers to service separately. Reduces service calls and makes mechanical troubleshooting straightforward: if the key doesn't turn, it's the cylinder; if the contacts don't close, it's the switch body.

Deployment Considerations:

• Mode Lock-In at Factory: Momentary vs. maintained is not a field switch; it's a factory configuration. Order the correct mode based on your control diagram, because retrofitting requires returning the unit. Plan ahead with your integrator and get written confirmation of the operational requirement before placing the order.
• Cylinder Sourcing Lead Time: The unit ships without a mortise cylinder. Source cylinders 2–3 weeks in advance if custom keying is required; standard off-the-shelf cylinders (1", 1 1/8", 1 1/4") are usually available same-week from locksmith suppliers. Budget the cylinder cost separately—it's often overlooked in project BOMs.
• 30VDC Power Supply Capacity: Verify that your control system power supply has sufficient reserve capacity for the strike and any other 30VDC loads. The CM-1270 itself draws minimal current (just the contact closure), but the solenoid or electromagnetic lock behind it may pull 1–2 amps; undersized power supplies will brown-out and cause intermittent failures.
• Contact Load Rating: Confirm that the strike or lock solenoid draw does not exceed the CM-1270 contact rating. We've seen installations where a contractor paired a high-current mag-lock to a switch undersized for that load, leading to arcing, contact pitting, and eventual failure after 6–12 months of service. Run the load calculation and keep a copy in the as-built documentation.
• Key Security and Rekeying: Because the cylinder is separate, rekeying is straightforward—swap the cylinder, rotate master keys, done. Plan a rekeying schedule at handover so the facility knows how to update keys if a staff member leaves or security protocol changes. Standardized cylinder sourcing makes this easier than with proprietary key-switch designs.

The CM-1270 is the right choice when you need single-location key-controlled override on commercial or industrial access control systems, and you're willing to plan mode selection and cylinder sourcing upfront. It's not the product for sites that need field-switchable momentary-to-maintained conversion or proprietary cylinders. For integrators managing large multi-door retrofits, the modularity and standard hardware make it a reliable workhorse. Explore the full Camden catalog for complementary strike, lock, and control hardware.
