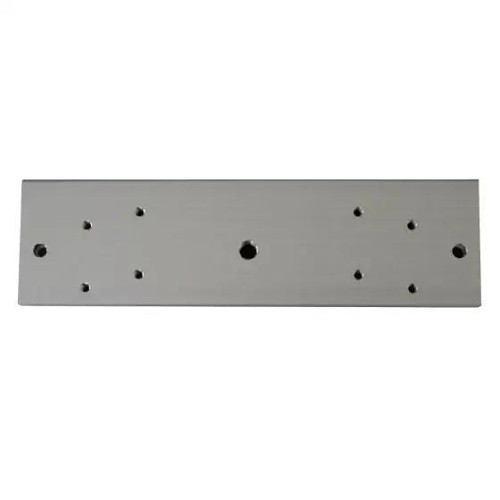

Camden Glass (1/2\" thick) Door Mounting Kit for 600 lb. Magnetic Lock

Camden CX-MA0611 Glass Door Mounting Kit for 600 lb Magnetic Lock

Overview

The CX-MA0611 is a mechanical mounting assembly designed to attach a 600 lb rated magnetic lock strike directly to 1/2" tempered glass doors. This kit solves the primary integration challenge for frameless glass partition retrofits: proper load distribution across the glass surface without stress concentration or cracking. It fits commercial and institutional environments where you're upgrading existing glass dividers (lobbies, office suites, medical facilities) with access control strikes. The kit includes the standoffs and clamping plates needed to secure the strike hardware to the glass while maintaining the 600 lb holding force rating.

Compatibility

Works with 600 lb rated magnetic lock strike assemblies operating at 24VDC. Compatible with 1/2" (12.7 mm) tempered glass door installations. Integrates into networked access control systems where the strike controller delivers clean 24VDC output. Before ordering, confirm actual glass thickness with calipers—architectural drawings sometimes list 12 mm glass as "half-inch" when it measures 0.47", and that variance compromises clamp integrity. Also verify your mag lock controller's voltage stability under load; voltage sag reduces holding force below the rated 600 lbs, particularly on multi-door installations where power is split across several strikes.

Installation Notes

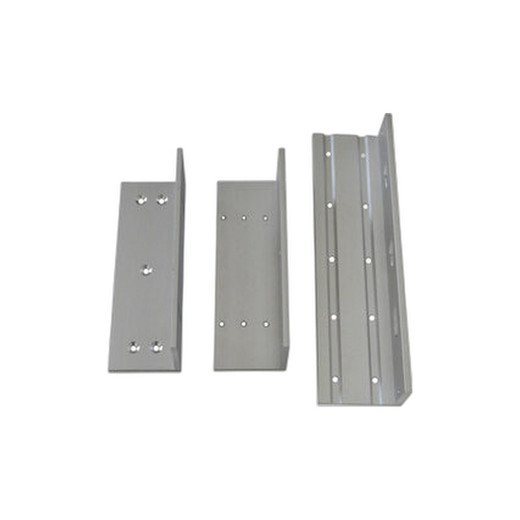

This is a mounting kit only—you source the 600 lb strike and controller separately and pair them with the CX-MA0611. Load distribution across the glass is critical; the clamping plates are engineered to prevent point stress that could crack tempered glass. Ensure the strike assembly's current draw is matched to the controller's capacity, especially on multi-door systems. The 24VDC supply must remain stable under the inrush current of the strike coil activation.
