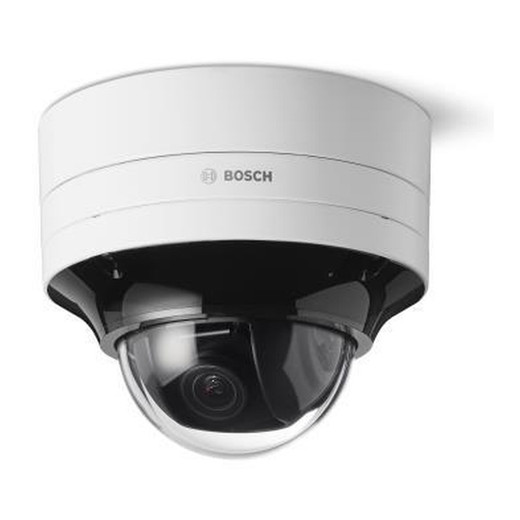

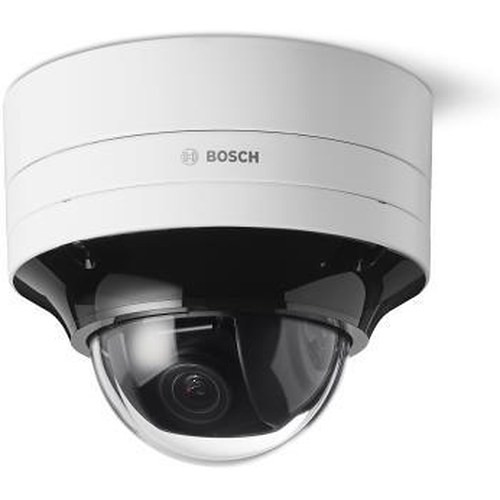

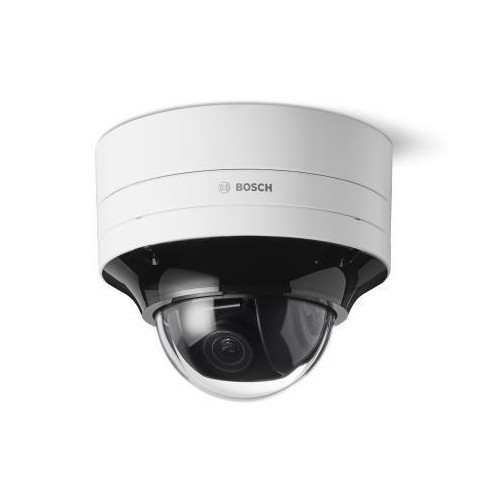

Bosch NDE-8704-RXL Fixed Dome Camera

Overview

The Bosch NDE-8704-RXL is an 8MP fixed dome camera engineered for outdoor and semi-outdoor surveillance where environmental durability and optical flexibility drive deployment decisions. This outdoor IP camera combines 8-megapixel resolution with a varifocal 5.9–13mm lens, meaning you can adjust the focal length on-site without swapping lenses or maintaining separate fixed-lens SKUs — a practical cost and logistics win. The NDE-8704-RXL delivers a single-cable PoE deployment, integrates with standard ONVIF VMS platforms, and supports H.265, H.264, and MJPEG compression, so bandwidth and storage planning fit your existing infrastructure without custom codec licensing.

Key Features

• 8MP Resolution (3840 x 2160): Captures forensic-grade detail for positive identification and post-incident review across day and night scenes, reducing the need for operator zoom during real-time monitoring.
• Varifocal 5.9–13mm Lens: Eliminates the need to stock multiple fixed-lens variants; adjust focal length during commissioning to cover corridors, entry points, or parking areas without returning to the warehouse for a different model. Reduces deployment friction and keeps spare-parts inventory lean.
• IP66 Environmental Sealing: Rated against high-pressure water jets and complete dust ingress — critical for rooftops, building exteriors, and coastal installations where salt spray and driving rain are routine. Saves the cost and space overhead of protective housings.
• IK11 Vandal Resistance: Meets European IEC 62262 impact standards; withstands physical tampering and deliberate strikes typical of public-facing or high-traffic areas. Reduces unplanned maintenance calls and extends mean time between repairs.
• PoE (802.3af) Powering: Draws approximately 12.95W maximum, well within standard 802.3af budget (15.4W per port). Single Ethernet run eliminates separate 12VDC power supplies, simplifying cable runs in retrofit or new-build conduit planning.
• H.265 Compression: Reduces storage and bandwidth demand by roughly 40–60% compared to H.264 at equivalent quality, a real factor when recording 24/7 across dozens of cameras on bandwidth-constrained networks. H.264 and MJPEG options ensure backward compatibility with legacy VMS systems.
• IR Day/Night with 850nm Illumination: Continuous surveillance without external lighting infrastructure; integrated infrared illuminator enables low-light and no-light operation without visible wash-out or light pollution concerns. Eliminates the need for auxiliary IR spotlights in most outdoor scenarios.
• Microphone Input: Built-in audio jack supports two-way intercom, on-site incident verification, and audio event correlation — useful for access control verification or perimeter challenge-response workflows.

Integration & Compatibility

The NDE-8704-RXL integrates with any ONVIF-compliant VMS — Milestone XProtect, Genetec Security Center, Axis Camera Station, and third-party platforms. Standard IP discovery and provisioning workflows apply; no proprietary software or firmware licensing required. Codec flexibility (H.265, H.264, MJPEG) means you can optimize per-camera compression based on available bandwidth without wholesale platform migration. Microphone support pairs naturally with access control systems and intercoms that use standard analog audio inputs.

Deployment Environment

IP66 sealing and IK11 impact resistance position this model for outdoor, semi-covered, and high-traffic indoor spaces where environmental exposure or physical interference is expected. Typical outdoor installations include rooftop perimeter monitoring, loading docks, parking structures, and building facades. IP66 specifically guards against salt spray and moisture — valid consideration for coastal or industrial-chemical facilities. IK11 resistance reduces maintenance frequency in public areas, retail environments, or locations prone to vandalism or accidental impact.

When to Choose a Different Model

If you require submersion capability (full dunking or prolonged underwater operation), step up to IP67 or IP68 variants in the same family. If you need higher megapixel count for extreme zoom or forensic crop recovery, consider the Bosch NDE-8704-series higher-resolution variants. For indoor access control verification where environmental sealing is unnecessary, a non-vandal-rated dome reduces cost. If 850nm IR illumination creates bleed-through concerns in a covert surveillance scenario, request a non-illuminated variant or evaluate a thermal imaging alternative.

Frequently Asked Questions

Q: What's the maximum IR illumination range on the NDE-8704-RXL?

A: The integrated 850nm infrared illuminator provides effective night-vision coverage suitable for typical outdoor perimeter monitoring; exact range depends on reflectivity and scene composition. Bosch publishes performance data in the technical datasheet; confirm expected throw distance against your specific mounting height and target area before final purchase.

Q: Can I wall-mount the NDE-8704-RXL, or is ceiling-only?

A: The dome form factor and IP66 rating support both ceiling and wall mounting. Standard corner brackets and pendant mounts accommodate various installation angles; verify your chosen mount hardware against the camera's weight and local building codes.

Q: Does the NDE-8704-RXL work with Milestone XProtect or Genetec?

A: Yes. The camera is ONVIF-compliant and integrates with any ONVIF Profile S/T-compatible VMS, including Milestone XProtect, Genetec Security Center, and third-party platforms. Standard IP discovery and device provisioning apply.

Q: Will PoE 802.3af power the camera reliably in a long cable run?

A: The NDE-8704-RXL draws approximately 12.95W maximum, leaving margin within the 802.3af 15.4W per-port limit. For cable runs exceeding 300 feet, verify your PoE switch's voltage drop characteristics and consider PoE repeaters or midspan injectors to maintain minimum voltage at the camera. Standard industry practice applies; consult your switch vendor for run-length guidance.

Q: What codecs does the NDE-8704-RXL support?

A: H.265, H.264, and MJPEG. H.265 delivers storage savings of 40–60% versus H.264; MJPEG ensures compatibility with older systems that lack H.264 support. You can configure per-stream or configure multiple streams at different codecs for simultaneous live view and archival optimization.

Q: Is the varifocal lens motorized, or manual adjustment only?

A: Bosch literature does not specify remote motorized focus. Confirm varifocal adjustment mechanism (manual or motorized) with the product datasheet or OEM before purchase if remote re-focus is a deployment requirement.

James Everett

Perspective based on aggregated IPSD and affiliated engineering team experience.

The NDE-8704-RXL is a solid choice for outdoor perimeter work where environmental durability and focal-length flexibility matter. The varifocal 5.9–13mm lens eliminates the classic SKU-multiplication problem — stock one model, adjust on-site for corridor or wide-area coverage. IP66 and IK11 ratings mean this camera handles rooftop and building-facade deployments without external housings or extra labor, and 8MP resolution gives you enough pixel density for identification and forensic crop recovery at typical outdoor mounting heights.

Technical Highlights:

• H.265 Compression: Cuts storage footprint 40–60% versus H.264 without quality loss — meaningful for 24/7 recording across a dozen or more cameras on bandwidth-constrained networks or edge NVRs with limited drive capacity.
• PoE 802.3af (12.95W max): Operates safely on standard non-PoE+ infrastructure; does not force a switch upgrade. Single Ethernet run simplifies conduit planning in older buildings where separate DC power runs are problematic.
• IP66 + IK11 Combination: Seals against rain, salt spray, and dust without extra expense; withstands 11 joules of impact (IK11 standard). Real advantage in public-facing or coastal installations where maintenance calls kill project ROI.

Deployment Considerations:

• Varifocal lens adjustment is a commissioning-time task — confirm whether your installer has access to Bosch's adjustment tooling or training. If motorized focus is a requirement (remote re-focus during operation), this model does not support it; escalate to a motorized variant.
• IR illumination at 850nm is visible to some night-vision equipment and wildlife; if covert operation is a concern, evaluate a non-illuminated dome or thermal alternative.

Deploy the NDE-8704-RXL for outdoor perimeter, loading dock, and parking-structure coverage where environmental sealing and focal-length flexibility reduce maintenance overhead and simplify spare-parts planning. Skip it if you need motorized zoom or submersion-rated sealing (IP67+).

Key Specifications:
Color: White
