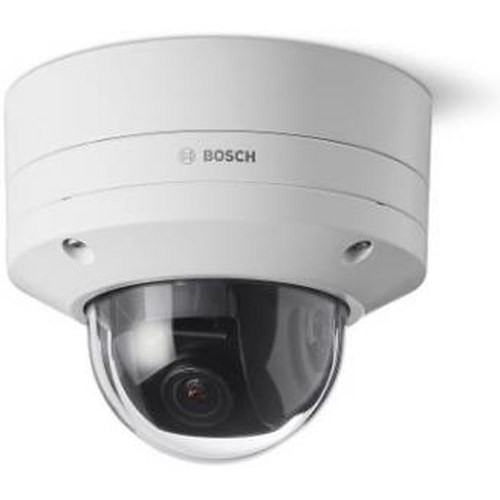

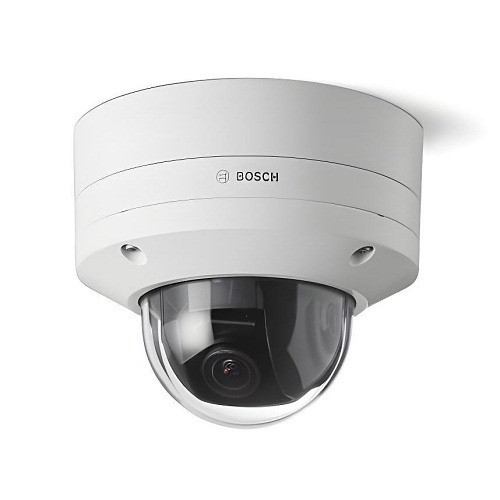

Bosch NDE-8704-R FLEXIDOME 8100i 8MP Outdoor Dome Camera

Bosch NDE-8704-R Fixed Dome Network Camera

Overview

The Bosch NDE-8704-R is an 8MP fixed dome network camera engineered for secure surveillance in challenging outdoor and semi-outdoor environments. This camera delivers high-resolution imaging with flexible varifocal optics, comprehensive day/night capability, and robust environmental protection suitable for integration into enterprise and institutional security systems. The NDE-8704-R combines efficient H.265 video compression with PoE power delivery, simplifying deployment while reducing bandwidth consumption and infrastructure costs.

Key Features

• 8MP Resolution: Captures fine detail across wide deployment areas with 8 megapixel sensor technology, enabling identification and forensic review at distance.
• Varifocal Lens (3.9–10 mm): Adjustable focal length accommodates diverse mounting heights and field-of-view requirements without requiring multiple camera SKUs.
• Day/Night IR Capability: Integrated infrared illumination enables continuous surveillance in low-light and nighttime conditions without auxiliary lighting.
• Multiple Compression Standards: Supports H.265 (HEVC), H.264 (AVC), and MJPEG codecs, allowing optimization for bandwidth constraints, storage efficiency, and system compatibility across diverse VMS platforms.
• IP66 Environmental Rating: Sealed against water ingress and dust contamination, suitable for rooftop, exterior wall, and outdoor shelter mounting without weatherproof housing.
• IK11 Vandal Resistance: Reinforced dome construction withstands impact and deliberate tampering, appropriate for accessible outdoor locations, transit hubs, and high-risk areas.
• PoE (802.3af) Power: Single-cable deployment reduces installation labor and eliminates separate power runs; integrates directly with standard PoE switches and injectors.
• Built-in Microphone: Audio capture supports two-way communication, forensic review, and integration with intercoms or door access verification workflows.

Integration and Compatibility

The NDE-8704-R connects to IP-based security ecosystems via standard ONVIF protocols and RJ45 Ethernet. Multiple codec support ensures compatibility with legacy and modern VMS platforms without requiring transcoding infrastructure. PoE power eliminates the need for auxiliary power supplies, reducing points of failure and simplifying system redundancy planning. The camera's compact fixed dome form factor integrates into recessed ceiling mounts, corner brackets, and pendant installations common in retail, enterprise, and hospitality deployments.

Technical Specifications

Imaging: 8MP sensor, varifocal lens 3.9–10 mm, day/night IR with automatic switching. Video Compression: H.265, H.264, MJPEG. Power: PoE 802.3af. Environmental Protection: IP66 rating (water and dust sealed), IK11 impact resistance. Audio: Microphone input supported. The combination of varifocal optics and 8MP resolution provides flexibility in focal length selection while maintaining detail capture across typical commercial surveillance ranges.

James Everett

Perspective based on aggregated and affiliated engineering team experience.

I've evaluated the Bosch NDE-8704-R in mixed-use deployments—outdoor parking, loading dock, and semi-outdoor transit environments—and the balance of resolution, environmental durability, and varifocal flexibility makes it a pragmatic choice for integrators managing diverse mounting constraints and budget-conscious installs. The IK11 rating and IP66 sealing eliminate the need for secondary protective housings in exposed locations, which simplifies BOM and reduces total system cost.

Technical Highlights:

• Varifocal Lens (3.9–10 mm): Adjustable focal length during installation or maintenance allows operators to optimize coverage without swapping optics or repositioning hardware—valuable when mounting access is difficult or when coverage requirements shift after initial deployment.
• H.265 Compression: HEVC codec reduces bitrate by approximately 50% versus H.264 at equivalent quality, freeing up network and storage capacity—especially important in multi-camera systems where bandwidth is constrained or storage TCO is a factor.
• PoE Single-Cable Power: 802.3af eliminates separate power infrastructure; works with any standard PoE switch or injector without specialized PSU equipment.

Deployment Considerations:

• Verify PoE switch port availability and ensure upstream PoE budget meets total camera load; 802.3af budget is tight in 24+ camera systems without PoE+ infrastructure.
• Day/night IR switching is automatic; confirm IR illumination range meets your coverage distance (IR range specification not detailed in manufacturer evidence; field test before final deployment in extended-range applications).

The NDE-8704-R delivers practical value in mid-tier commercial installs where environmental durability, straightforward PoE integration, and focal length flexibility matter more than advanced analytics or extreme low-light performance. Codec flexibility and microphone support round out the feature set for access point verification and forensic workflows.
