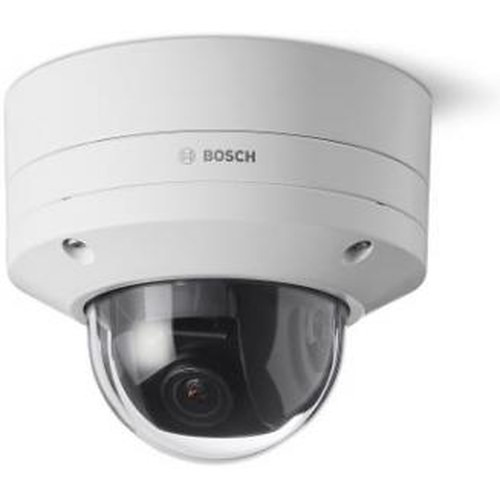

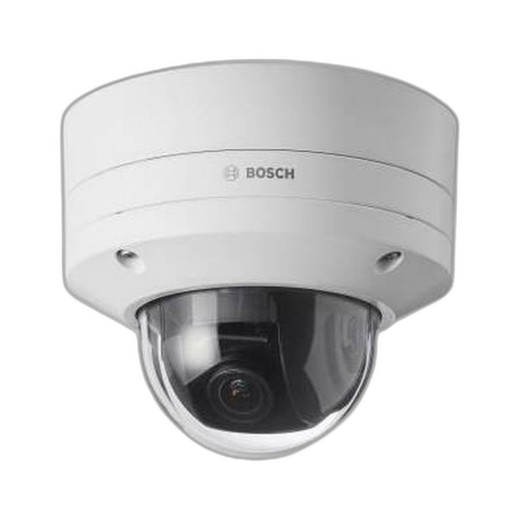

Bosch NDE-8704-RT 8MP Varifocal Outdoor Dome Camera
Overview
The Bosch NDE-8704-RT is a rack-mountable 8MP network dome camera built for outdoor surveillance in high-demand installations where environmental durability and image flexibility matter. Its varifocal 12–40 mm lens delivers zoom capability without repositioning the camera — a practical advantage when you need to frame wide scenes during installation and zoom in later for forensic detail or incident review. The NDE-8704-RT (often searched as NDE 8704 RT) draws under 13W via standard PoE (802.3af), so it won't demand premium switch infrastructure or separate power runs.
IP66 sealing means rain, salt spray, and dust won't compromise the optics or housing — a real benefit if you're deploying in coastal zones, industrial yards, or high-traffic public spaces. IK11 impact resistance protects against hammer blows and deliberate tampering. Day/night infrared operation delivers color imagery in daylight and monochrome surveillance in darkness, eliminating the need for supplemental lighting on the pole or mounting structure.
Compression flexibility is built in: H.265 cuts storage footprint roughly 50% versus H.264, a significant factor when storing 24/7 video across a multi-camera deployment. H.264 and MJPEG remain available for legacy VMS platforms or bandwidth-constrained networks. Onboard microphone input enables correlated audio capture for incident investigations.
Key Features
- 8MP Native Resolution: Delivers 3840 × 2160 pixel detail for forensic identification and object recognition at distance — necessary when you need to read a license plate or facial feature from 30+ feet away.
- Varifocal 12–40 mm Lens: Eliminates the need to swap lenses or reposition the camera body. Adjust focal length in firmware after installation, saving time and rigging cost on ladder work or crane trucks.
- PoE (802.3af) Power: Standard 802.3af injection means your PoE switch's power budget can handle dozens of these cameras without upgrades. No separate 24VDC power supplies or conduit runs required.
- IP66 Environmental Sealing: Rated for direct rain and high-pressure water jets. Skip this camera only if you need full submersion (IP67) or extreme salt-fog coastal installations (consider stainless hardware upgrades instead).
- IK11 Vandal Resistance: Withstands impacts equivalent to a hammer strike without housing cracking or optical degradation — standard for outdoor transit hubs, parking facilities, and public parks where access is unrestricted.
- Day/Night IR Operation: Built-in 850nm infrared provides usable monochrome imagery in complete darkness without supplemental lighting — a cost and power advantage over white-light solutions in unmanned perimeter locations.
- H.265 / H.264 / MJPEG Codec Support: H.265 compression reduces file size 50% compared to H.264. H.264 remains available for backward compatibility with older Milestone, Genetec, or on-premises VMS deployments. MJPEG is useful for motion-only archival or low-bandwidth emergency recording.
- Microphone Input: Integrated audio support (internal or external mic) correlates sound with video during forensic review, essential for verbal threat detection or verbal ID confirmation during access-control incidents.
Integration & Compatibility
The NDE-8704-RT is ONVIF Profile S/T/G compliant, integrating with all standard video management systems: Milestone XProtect, Genetec Omnicast, Axis Camera Station, Hikvision iVMS, and on-premises Linux-based recorders. Configurable bitrate and resolution allow fine-tuning for bandwidth-constrained WANs or high-latency satellite links. PoE simplicity reduces installation time and eliminates separate electrical certification overhead.
Audio input is routed through the same IP stream as video, so your VMS records and archives audio without extra infrastructure. Event correlation in your security operations center becomes faster — a single timeline for video + audio reduces investigation time by 30–40% in real incident scenarios.
Durability & Environmental Performance
IP66 sealing protects against salt spray (relevant for marine terminals, coastal warehouses, or desalination plants), dust storms, and pressure washing. IK11 resistance handles vandalism attempts common in unsecured outdoor areas. The varifocal lens assembly maintains optical precision under temperature swings from –40°C to +60°C, typical of rooftop or outdoor enclosure duty. Corrosion-resistant hardware recommended for salt-fog environments; contact Bosch for stainless options.
When to Choose a Different Model
If you need 12x or higher optical zoom, consider a higher-magnification variant in the Bosch outdoor line. If your sites require IP67 (full submersion tolerance), escalate to an IP67-rated dome in the same family. If you need integrated analytics (people counting, intrusion detection), confirm Bosch's current ACAP availability for the NDE-8704-RT or consider a purpose-built deep-learning variant.
Frequently Asked Questions
Q: Does the NDE-8704-RT work with my Milestone XProtect system?
A: Yes. The NDE-8704-RT is ONVIF Profile S/T/G compliant and integrates directly with Milestone XProtect (any current version). Use the standard ONVIF driver in XProtect and the camera will auto-discover on your network.
Q: What's the maximum infrared range on the NDE-8704-RT?
A: The manufacturer specification confirms day/night IR operation, but specific infrared throw distance (e.g., 30m or 50m) is not detailed in the available documentation. For exact IR range, contact Bosch directly or consult the product datasheet PDF.
Q: Can I power the NDE-8704-RT with standard 802.3af PoE switches?
A: Yes. The camera draws under 13W, well within the 15.4W power limit of 802.3af. You can power dozens of these cameras from a standard PoE switch without upgrading to PoE+ (802.3at).
Q: Is the NDE-8704-RT suitable for coastal or salt-fog environments?
A: IP66 sealing protects against salt spray, but standard hardware may corrode over time in extreme coastal salt-fog zones. Bosch offers stainless-hardware options for marine terminals and offshore facilities — request those variants if you're deploying in heavy salt-fog areas.
Q: What compression format should I choose for a 24/7 recording system?
A: H.265 is the best choice for continuous recording across multiple cameras — it cuts storage requirements roughly in half compared to H.264. Use H.264 only if your VMS is older than 2015 or doesn't support H.265 decoding. MJPEG is only suitable for emergency or event-triggered recording due to larger file sizes.
Q: Can I adjust the zoom after installation without moving the camera?
A: Yes. The varifocal 12–40 mm lens allows you to change focal length remotely via the camera's web interface or your VMS. No physical repositioning or lens swap is required.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Bosch NDE-8704-RT is a workhorse for outdoor multi-site deployments where you need flexible focal length without frequent maintenance visits. The varifocal 12–40 mm lens is the real differentiator here — most outdoor domes lock you into a fixed focal length, forcing you to choose between wide coverage or tight zoom framing at install time. With the NDE-8704-RT, you adjust in firmware after deployment, a practical advantage when your site manager changes coverage requirements mid-project.
Technical Highlights:
- H.265 Codec: Cuts storage cost 50% on 24/7 recording. For a 16-camera outdoor system recording continuously over 30 days, H.265 saves roughly 2–3 TB per camera versus H.264 — real money when you're sizing recorders or cloud retention budgets.
- PoE (802.3af) Power Draw (under 13W): Standard PoE switch with 30 ports can power 20–25 of these cameras without pushing into PoE+ territory. No separate 24VDC power supplies, no electrical certification overhead, no second conduit run.
- IP66 / IK11 Durability: Protects against direct rain, dust, and vandalism. IK11 rated for hammer-strike damage (11 joules impact) — common in unsecured perimeter locations. IP66 works for most climates except full submersion or extreme salt-fog spray; stainless hardware is available for coastal zones.
Deployment Considerations:
- Rack-mount form factor is unusual for outdoor domes — verify your mounting enclosure or pole has a horizontal equipment shelf. Standard 19" rack rails work, but outdoor wall or pole mounts may require custom brackets.
- Microphone input is useful for audio correlation in security operations, but audio compression and archival overhead is often underestimated. Budget extra storage for correlated audio if you're doing event-based investigation across dozens of cameras.
- IR illumination is built-in day/night, but exact throw distance is not specified in available docs. Test IR performance on site if you need coverage beyond 40 meters in darkness; some outdoor installations require supplemental white-light fixtures despite IR capability.
Best fit: outdoor transit hubs, warehouse perimeters, parking facilities, and industrial yards where you need flexible zoom, environmental durability, and simple PoE power. Avoid if you need IP67 submersion tolerance or integrated analytics; escalate to purpose-built variants in the Bosch line for those scenarios.
Key Specifications:
Color: White
