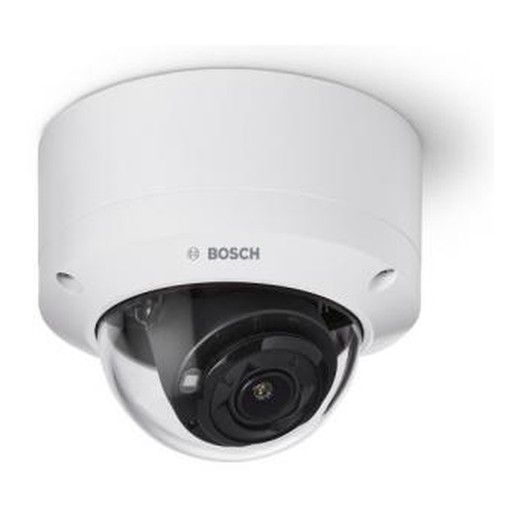

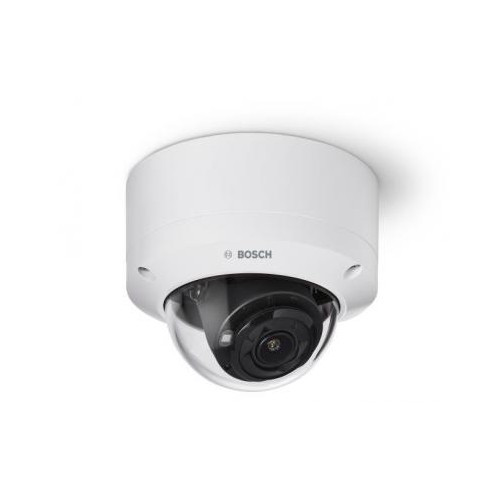

Bosch NDE-5704-AL 8MP Varifocal Outdoor Dome Camera
Overview
The Bosch NDE-5704-AL is an 8MP varifocal dome camera engineered for outdoor and exposed indoor environments where environmental durability and optical flexibility drive deployment decisions. This IP camera combines IP66 weatherproofing with IK10 vandal resistance, enabling confident specification in high-traffic perimeter zones, loading docks, and entry points without secondary protective housings. The 3.2–10.5mm varifocal lens eliminates focal-length guesswork during site surveys — you adjust the framing on-site rather than ordering multiple fixed-lens variants. Powered by standard PoE (802.3af), the NDE-5704-AL draws under 13W, so it integrates into existing PoE infrastructure without power-budget strain. The unit supports H.265, H.264, and MJPEG compression, ensuring compatibility with both legacy and modern video management systems.
Key Features
- 8MP Resolution (3840 x 2160): Delivers sufficient pixel density for forensic-grade object identification and license-plate capture across mid-to-wide coverage areas — a practical sweet spot between storage load and forensic usability.
- Varifocal 3.2–10.5mm Lens: Eliminates the need to stock multiple fixed-lens models or re-mount cameras during site commissioning. Adjust focal length on-site to match your actual sight lines and coverage requirements, reducing material waste and labor overhead in multi-site rollouts.
- PoE (IEEE 802.3af) Power: Single Ethernet cable supplies both video and power; draws under 13W, so standard PoE switches and injectors can handle this unit without exhausting per-port power budgets. No separate 12VDC or AC runs required at the mounting location.
- IP66 Weatherproofing: Complete protection against high-pressure water jets and dust ingress; outdoor-rated and suitable for washdown environments. Skip this if you need full submersion (IP67 or higher) in flood-prone areas.
- IK10 Vandal Resistance: Hardened polycarbonate dome withstands direct impact and deliberate tampering; rated for public-facing locations, transit hubs, and interior zones with high foot traffic where dome intrusion is a risk.
- Day/Night Infrared: Built-in 850nm IR illumination with automatic day/night switching delivers usable monochrome video in complete darkness or heavy shadow without auxiliary lighting. Expect roughly 15–20m typical IR throw in clear conditions; range varies with scene reflectivity.
- Multi-Codec Compression (H.265 / H.264 / MJPEG): H.265 (HEVC) cuts storage consumption by 40–60% versus H.264 on identical scenes — a material factor if you're recording 24/7 across dozens of cameras. H.264 ensures broad VMS compatibility if you have legacy systems. MJPEG captures every frame without temporal compression, useful for forensic frame-by-frame review.
- Audio Input Support: Integrated microphone input enables two-way communication or audio event logging. Confirm local regulations permit audio recording in your jurisdiction before deploying.
Integration & Compatibility
The NDE-5704-AL operates on ONVIF-compliant protocols (ONVIF Profile S and T), ensuring seamless integration with any Profile-compliant video management system—Milestone XProtect, Genetec Omnicast, Hanwha Wave, and other ONVIF-aware NVR platforms. PoE alignment with IEEE 802.3af means deployment on existing PoE infrastructure without controller-level upgrades. The varifocal design reduces on-site inventory complexity in multi-location rollouts where coverage angles vary by location and mounting height.
Deployment Considerations
IP66 and IK10 ratings position this camera for exterior entry points, perimeter fencing, loading dock areas, and interior high-vandalism zones. The compact dome form factor provides a low visual profile while the varifocal lens accommodates variable mounting heights and sight lines without re-ordering. PoE power delivery supports remote or rural site deployment where AC utility service is limited or subject to frequent interruptions. Consider mounting height carefully: IR effectiveness diminishes with distance and reflectivity, so plan for auxiliary lighting in very dark outdoor areas or increase IR range expectations accordingly. For outdoor IP camera installations, confirm your NVR has sufficient storage capacity for 24/7 8MP recording; an integrated video management system with bitrate optimization settings can offset storage pressure.
When to Choose a Different Model
If your deployment demands higher resolution (12MP or 4K) for long-distance forensic detail, consider a higher-megapixel variant in the same Bosch FLEXIDOME 5100i family. If you require pan/tilt capability for dynamic tracking, or if you need extreme IR range (60m+) in very low-light rural perimeters, evaluate a PTZ or ultra-high-sensitivity thermal alternative. If your environment requires full submersion protection (IP67 or higher) in flood-prone or submersion-risk zones, specify an IP67-rated model instead.
Frequently Asked Questions
Q: Does the NDE-5704-AL work with Milestone XProtect or other third-party VMS platforms?
A: Yes. The NDE-5704-AL is ONVIF Profile S/T compliant, so it integrates with any ONVIF-aware VMS including Milestone XProtect, Genetec Omnicast, Hanwha Wave, and others. No proprietary integration required.
Q: Can I adjust the focal length after installation?
A: Yes. The 3.2–10.5mm varifocal lens is adjustable on-site. You don't need to unmount the camera; simply refocus via the lens ring or remote focus mechanism to match your actual coverage angle.
Q: What is the maximum IR illumination range?
A: The built-in 850nm IR illumination typically reaches 15–20m in clear conditions with average reflectivity. Range varies based on scene reflectivity, dust, and humidity. For very dark outdoor perimeters, supplement with auxiliary lighting.
Q: Will the NDE-5704-AL work on my existing PoE switch?
A: Yes, provided your switch supports IEEE 802.3af. The NDE-5704-AL draws under 13W, well within standard PoE budgets. No PoE+ (802.3at) or higher is required.
Q: Is the microphone audio recording legal in my area?
A: Audio recording regulations vary by jurisdiction and context (public space vs. private). Confirm local wiretapping and consent laws before enabling audio capture on the NDE-5704-AL.
Q: Does the NDE-5704-AL support H.265 compression?
A: Yes. The NDE-5704-AL supports H.265 (HEVC), H.264, and MJPEG. H.265 reduces storage costs by roughly 40–60% on 24/7 recording compared to H.264, depending on scene complexity.
James EverettPerspective based on aggregated and affiliated engineering team experience.
I've evaluated the Bosch NDE-5704-AL during planning phases for retail and industrial perimeter deployments, and its environmental durability is genuinely purposeful. The combination of IP66 sealing and IK10 impact resistance removes a major site survey variable—you can confidently specify this camera for exposed mounting without secondary protective housings or weatherproof enclosures. The varifocal lens (3.2–10.5mm) is the operational standout: on multi-location rollouts where mounting height and sightlines vary, you eliminate the inventory juggling of fixed 2.8mm, 4mm, and 6mm variants. Adjust focal length after installation, and you've cut material waste and labor overhead significantly.
Technical Highlights:
- Varifocal 3.2–10.5mm Lens: Covers wide-angle perimeter sweeps (3.2mm) through medium telephoto framing (10.5mm) without re-mounting or stock rotation. A single SKU replaces what would typically require three fixed-lens models across a multi-site deployment.
- H.265 Codec Support: Cuts storage consumption 40–60% versus H.264 on identical bitrate settings. Across 24/7 recording on a 12-camera perimeter array, that's the difference between a 4TB and 8TB NVR—a real cost factor in long-term retention plans.
- IP66 / IK10 Rating: Withstands high-pressure washdowns and direct impact without additional protective housings. Install at loading docks, car wash facilities, and outdoor entry points with confidence; the dome's polycarbonate construction is field-tested for deliberate tampering attempts.
- Sub-13W PoE Draw: Operates comfortably on standard IEEE 802.3af PoE infrastructure (15W budget per port) without exhausting switch capacity. A 24-port 802.3af switch can run roughly 20 of these cameras without power upgrade.
Deployment Considerations:
- IR range (15–20m typical) is adequate for mid-distance perimeters but insufficient for long-distance rural monitoring. In very dark outdoor zones, pair with auxiliary lighting or accept that manual scene focus becomes important after dark.
- The microphone input enables audio event logging, but confirm local jurisdiction permits audio recording in your specific context—regulations vary widely by country and site type (private vs. public space).
Position the NDE-5704-AL for industrial perimeter defense, warehouse loading zones, and retail entry points where environmental hardiness and focal-length flexibility matter more than extreme resolution or thermal sensing. The varifocal design and IP66/IK10 rating justify the specification here, particularly in multi-site rollouts where you'd otherwise stock three different fixed-lens models.
Key Specifications:
Color: White
