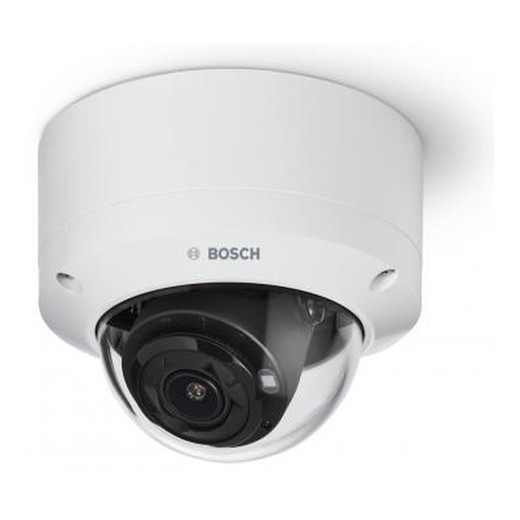

Bosch NDE-5702-AL 2MP Outdoor Varifocal Dome Camera
The Bosch NDE-5702-AL is a compact outdoor dome camera engineered for high-vandalism perimeter and facility monitoring. This 2MP fixed-dome unit combines IP66 weatherproofing, IK10 impact resistance, and integrated IR night vision—delivering 24/7 coverage in rain, snow, and direct sunlight without requiring separate illumination infrastructure or supplemental power runs.
Key Features
- 2MP Resolution: Captures fine detail across typical monitoring zones (parking areas, loading docks, entry points) without the bandwidth overhead or cost of higher-megapixel alternatives. At standard viewing distances (30–60 feet), 2MP is sufficient for facial recognition and vehicle plate identification in daylight.
- Varifocal Lens (3.2–10.5 mm): Post-mount focal-length adjustment eliminates the need to reposition or remove the camera after installation. Shift from 103° wide-angle coverage to narrower 20° telephoto observation without mechanical rework—critical for mid-project design changes or field optimization.
- IR Day/Night with Automatic Switching: 850nm infrared illumination enables color capture in daylight and seamless transition to grayscale IR imagery in darkness. No external floodlights or supplemental power budget required. IR range and illumination distance not specified in available documentation.
- PoE 802.3af Power: Draws under 13W via standard PoE, so it operates on any managed or unmanaged PoE injector or switch port. No dedicated 12VDC or AC power supply installation needed—single Ethernet run to the NVR or switch handles both video and power delivery.
- IP66 Weatherproofing: Sealed against dust ingress and high-pressure water jets (up to 100 bar from any angle). Suitable for outdoor mounting in rain, snow, salt spray, and agricultural environments. Does not provide submersion protection (IP67 or higher not rated).
- IK10 Vandal Resistance: Housing withstands 20 joule direct impact without lens or housing breach. Appropriate for accessible mounting in public areas, transit hubs, or high-traffic warehouse perimeters where impact and tampering risk are present.
- H.265, H.264, and MJPEG Codec Support: H.265 reduces file size and bandwidth roughly 40–50% versus H.264 at equivalent quality—meaningful on 24/7 continuous recording or high-density multi-camera systems. H.264 and MJPEG ensure compatibility with older network video recorders and legacy management software. Select codec based on VMS capability and network constraint.
- Built-in Microphone: Audio input allows synchronized sound recording for incident documentation and enhanced situational awareness. Verify downstream VMS and NVR support two-way audio or microphone ingestion before relying on this capability.
Integration & Compatibility
The NDE-5702-AL implements ONVIF compliance, enabling integration with industry-standard video management systems, NVRs, and control platforms. PoE 802.3af power integrates directly into standard network switches and PoE midspan injectors, avoiding dedicated power infrastructure. Confirm your network switch or PoE injector can supply the required wattage across all connected cameras before commissioning.
Deployment Context
The compact dome form factor and weatherproof/vandal-resistant ratings make this camera suitable for outdoor perimeter monitoring, parking structures, loading docks, and facility entrances. The varifocal lens supports both wide-coverage and focused-observation scenarios from a single installation point, reducing the number of fixed-focal-length units required in mixed-distance deployments. Consider outdoor IP cameras with higher resolution (4MP or 5MP) if facial recognition at distances beyond 40 feet or vehicle plate detail at highway speeds is a requirement.
When to Choose a Different Model
If your deployment requires higher resolution (5MP or 8MP) for long-distance recognition, evaluate higher-megapixel variants in the Bosch FLEXIDOME family. If PoE power budget or network bandwidth is severely constrained, confirm that codec selection (H.265 is recommended) and two-way audio features are disabled or supported by your infrastructure before purchase. If mounting requires pan-tilt functionality or zoom beyond 3.2x magnification, consider a PTZ alternative from the same manufacturer.
Frequently Asked Questions
Q: What is the infrared illumination range on the NDE-5702-AL?
A: The manufacturer documentation provided does not specify an IR range distance. Contact the distributor or system integrator to confirm IR performance at your expected deployment distance before final site assessment.
Q: Can the NDE-5702-AL be powered by PoE or High Power PoE (PoE+)?
A: The NDE-5702-AL operates on standard PoE 802.3af at approximately 13W maximum draw. It does not require or benefit from PoE+ (802.3at) or higher-wattage classes. Standard PoE is sufficient.
Q: What compression codecs does the NDE-5702-AL support?
A: The camera supports H.265, H.264, and MJPEG. H.265 is recommended for bandwidth-constrained or 24/7 recording deployments, as it reduces file size 40–50% versus H.264 while maintaining equivalent image quality. Confirm your NVR or VMS supports your chosen codec before deployment.
Q: Is the NDE-5702-AL suitable for outdoor mounting in cold or wet climates?
A: Yes. The camera carries IP66 weatherproofing (dust and high-pressure water jets) and operates in harsh outdoor conditions. Operating temperature range is not specified in available documentation—confirm with the manufacturer or integrator if sub-zero or high-humidity environments are planned.
Q: Does the NDE-5702-AL support ONVIF compliance?
A: Yes. The camera integrates with ONVIF-compliant video management systems and standard NVR platforms, supporting industry-standard protocols for discovery and management.
Q: Can the varifocal lens be adjusted after installation?
A: Yes. The 3.2–10.5 mm varifocal lens allows post-mount focal adjustment without camera removal or repositioning. This simplifies installation and supports mid-project field optimization of coverage angles.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The NDE-5702-AL (often searched as NDE 5702 AL) represents solid mid-range outdoor surveillance—no surprises, good build quality, but understand what you're getting and what you're not. At 2MP with a varifocal lens and PoE-only power, this is a zone-coverage camera, not a hero-shot asset. The varifocal lens removes post-installation repositioning headaches, and the IK10/IP66 combo means it'll survive parking-lot impacts and seasonal weather without degradation.
Technical Highlights:
- H.265 Codec Support: Cuts storage and bandwidth roughly 40–50% compared to H.264—material savings if you're running 24/7 on 50+ cameras. Pair this with a NVR that handles H.265 decoding; older recorders default to H.264 or MJPEG and will negate the efficiency gain.
- PoE 802.3af at ~13W: This is the real advantage. No separate power run, no 12VDC PSU, no panel modifications. Drop it on any standard PoE switch or injector. If you're planning a 20-camera outdoor ring, you're looking at roughly 260W total—very manageable from a single managed PoE switch.
- Varifocal 3.2–10.5 mm (Approx. 3.3x Optical Range): Wide-angle start at 3.2mm (roughly 103° horizontal) down to 20° at 10.5mm. The range is moderate—not extreme telephoto, but sufficient for parking-lot and perimeter work. Installers appreciate the post-mount adjustment; no need to demount and swap lenses if your initial framing is off.
Deployment Considerations:
- The 2MP cap means facial recognition is feasible to 30–40 feet in good light. Beyond that, detail falls off. If your site requires 60+ foot coverage with usable face detail, step up to a 5MP or 8MP variant or deploy multiple units.
- IR illumination distance is not published in available specs. This is a gap. Before final site assessment, confirm with the integrator that IR throw covers your expected darkest deployment point. Many integrators underestimate the distance and end up with IR washout or near-total darkness outside the illumination zone.
- Audio input is built-in, but don't assume your NVR will record or expose two-way audio by default. Verify codec passthrough and microphone support in your VMS configuration—it's often disabled by default for bandwidth or privacy reasons.
Position the NDE-5702-AL for outdoor perimeter zones where 2MP detail suffices (parking, loading docks, facility entries) and PoE infrastructure is already in place or planned. Avoid high-risk deployments that demand long-distance facial or plate recognition without a corresponding upgrade to higher resolution or additional camera coverage.
Key Specifications:
Color: White
