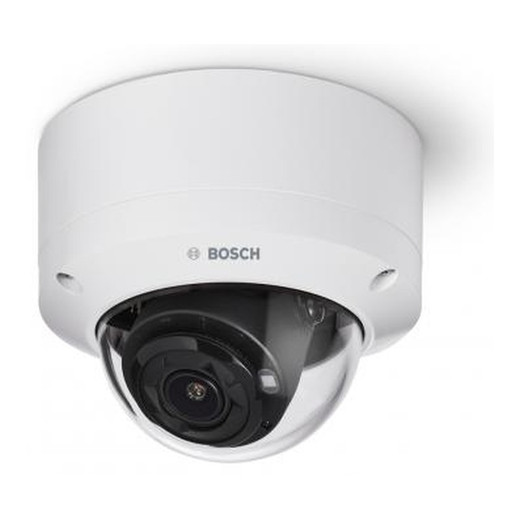

Bosch NDV-5702-AL 2MP Varifocal Dome Camera

Overview

The Bosch NDV-5702-AL is a compact 2MP varifocal dome camera engineered for mixed indoor and sheltered outdoor deployments where flexible focal length adjustment, vandal resistance, and power simplicity are operational priorities. Built on a PoE power architecture and IP54-rated construction, the NDV-5702-AL delivers 1920×1080 video capture suitable for facial recognition and license plate identification at moderate distances in retail, transit, banking, and access control environments. The IK10 vandal-resistant polycarbonate housing withstands impacts up to 20 joules—a meaningful advantage in high-traffic public-facing zones where dome breakage drives maintenance costs and security gaps. Varifocal 3.2–10.5mm optics allow field technicians to adjust focal length on-site without swapping optics, reducing pre-deployment surveys and eliminating the need to stock multiple fixed focal lengths.

Key Features

• 2MP Resolution (1920×1080): Delivers sufficient clarity for facial detail and license plate capture at ranges typical of retail floors, lobby entrances, and building corridors. You'll recognize individuals and read plate characters under good lighting; in lower-light scenarios, IR illumination compensates but don't expect pinpoint identification beyond 10–15 meters without auxiliary lighting.
• Varifocal 3.2–10.5mm Lens: On-site focal length adjustment eliminates the need to stock multiple fixed-length optics or return cameras for re-lens work. Wide angle (3.2mm) covers large lobbies and warehouse entry points; telephoto (10.5mm) narrows field of view for detail capture in retail aisles or corridor approaches. One camera model handles multiple deployment scenarios.
• PoE Power (802.3af): Draws under 13W, operating on standard 802.3af power injection. This means your PoE switch won't be bandwidth-constrained by power budgeting, and you avoid separate power cabling runs in congested cable trays or retrofit installations. Simplifies site wiring and reduces installation labor.
• OptimizedIR Night Vision: Integrated 850nm infrared illumination enables 24/7 unattended operation without auxiliary lighting. Automatic day/night sensor switching maintains video continuity across lighting transitions—critical for uninterrupted evidence collection in bank vaults, utility rooms, and dark corridors where manual lighting isn't practical.
• Multi-Codec Support (H.265 / H.264 / MJPEG): H.265 compression cuts storage footprint roughly 40–60% compared to H.264 for 24/7 recording across multiple cameras—a real cost driver on large-scale deployments. Simultaneous dual-stream delivery (H.265 to archival storage, H.264 to legacy VMS clients) avoids server-side transcoding overhead, preserving NVR CPU headroom for analytics and alarm processing.
• IP54 Environmental Sealing: Dust and water-spray resistance support both indoor and sheltered outdoor installations—covered entry canopies, warehouse loading docks, transit station platforms. Skip this if you need full-submersion capability; IP54 protects against spray but not immersion or high-pressure wash-down.
• IK10 Vandal Resistance: Hardened polycarbonate dome withstands 20-joule impacts without cracking. In public-access retail, transit, and parking environments where dome breakage is a recurring cost center, this eliminates frequent replacement cycles and sustains forensic capability during active threat periods.
• Built-in Microphone: Captures synchronized ambient audio for evidence validation and situational awareness during live monitoring. Useful for retail incident reconstruction and access control zones where verbal confirmation matters.
• Compact Form Factor: Low-profile dome design accommodates tight ceiling and wall mounting constraints in retail backrooms, banking teller areas, and office environments where discrete, space-constrained mounting is required.

Integration & Compatibility

The NDV-5702-AL supports ONVIF Profile S compliance, ensuring broad compatibility with major VMS platforms including Milestone XProtect, Genetec Security Center, and open-source deployments. Native HTTP/HTTPS streaming and dual-stream delivery enable straightforward integration with network video recorders and management systems without vendor lock-in. ONVIF compliance also simplifies future platform migrations—camera streams remain standard, reducing re-integration overhead when upgrading VMS infrastructure.

What's in the Box

1x Mounting bracket, 1x Cable gland, Installation documentation. Integration partners should verify site-specific accessories separately (pendant adapters, corner brackets, protective cage housings) based on final mounting location and environmental exposure.

Frequently Asked Questions

Q: What's the maximum effective IR range on the NDV-5702-AL?

A: Integrated OptimizedIR illumination supports continuous night operation in complete darkness; effective identification range is approximately 10–15 meters under standard indoor ambient conditions. Beyond that, image contrast degrades and facial detail becomes marginal without auxiliary lighting.

Q: Can the NDV-5702-AL be wall-mounted, or is it ceiling-only?

A: The supplied mounting bracket supports both ceiling and wall installation. Angle adjustment during installation allows field technicians to orient the dome as needed. Verify pendant adapters or corner brackets separately if your site geometry requires offset mounting.

Q: Does the NDV-5702-AL work with Milestone XProtect and Genetec Security Center?

A: Yes. ONVIF Profile S compliance ensures compatibility with Milestone, Genetec, and all major ONVIF-aware VMS platforms. Stream natively over HTTP/HTTPS without proprietary plugins or connectors.

Q: Is IP54 sealing sufficient for outdoor installations?

A: IP54 protects against dust and water spray, making it suitable for sheltered outdoor locations—covered loading docks, transit station overhangs, building soffits. Do not deploy in direct rain, high-pressure wash-down, or areas with sustained moisture. For full outdoor exposure, consider a higher IP-rated variant in the same camera family.

Q: What happens to recording if I switch between H.265 and H.264 compression?

A: Dual-stream capability allows simultaneous H.265 archival and H.264 client delivery without interruption. Single-stream mode requires you to select one codec; changing codecs mid-deployment requires a camera restart and temporary loss of video. Plan codec selection during commissioning to avoid operational disruption.

Q: Can the lens be adjusted in the field, or does it require tools?

A: Varifocal adjustment is typically motorized or manual-focus depending on firmware configuration. Consult installation documentation for your specific unit. Most site technicians can perform on-site adjustment without returning the camera, though initial setup verification by your integrator is recommended.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've deployed the Bosch NDV-5702-AL in mixed retail and transit environments where vandal resistance and power simplicity are primary drivers. The varifocal 3.2–10.5mm lens alone reduces pre-deployment site surveys and eliminates the need to stock multiple fixed focal lengths across a distributed estate. The NDV-5702-AL performs well in standard indoor and sheltered outdoor conditions where IP54 sealing is sufficient—lobbies, stairwells, retail floors, and covered entry points. The IK10 vandal-resistant housing is not theoretical: in retail environments with high foot traffic and occasional intentional dome strikes, this specification directly translates to fewer warranty claims and longer MTBF on-site.

Technical Highlights:

• Varifocal 3.2–10.5mm Optics: Eliminates the need to stock three or four fixed focal lengths across a multi-site deployment. One camera model handles both wide-angle retail floor coverage and narrower aisle/approach detail capture. Field technicians adjust focal length during commissioning without returning units to depot.
• H.265 Codec Efficiency: 40–60% reduction in storage footprint compared to H.264 across 24/7 multi-camera recording. On a 100-camera retail estate with 60-day retention, this translates to measurable CAPEX savings on archival storage and backup infrastructure.
• PoE 802.3af Low Draw (~13W): Under-subscripted power draw means your PoE switch's power budget won't be the constraint on camera density. Critical when retrofitting into existing infrastructure with fixed PoE capacity.
• OptimizedIR + Day/Night Auto-Switching: 24/7 unattended operation without auxiliary lighting in utility rooms, vault corridors, and after-hours retail spaces. Automatic sensor mode transition maintains continuous recording through lighting transitions—no manual intervention, no evidence gaps.

Deployment Considerations:

• IP54 sealing is sheltered-outdoor only: covered entry canopies and loading docks, not direct rain or wash-down zones. If you need full outdoor exposure, step up to an IP66-rated variant in the same family rather than accepting field failures.
• 2MP resolution is adequate for moderate-distance facial recognition and plate capture (10–15 meters), but drops off rapidly beyond that. In narrow retail corridors and stairwells, this is perfect. In large warehouse floors or parking structures, consider a higher-megapixel variant.
• Dual-streaming (H.265 archive + H.264 client delivery) is powerful for large deployments but requires deliberate commissioning. Switching codecs mid-deployment requires a camera restart and brief loss of video—avoid surprise mid-shift config changes.

The NDV-5702-AL is the right choice for compact indoor retail environments, transit stations, and bank lobbies where vandal resistance, power efficiency, and focal length flexibility are worth more than raw megapixels. It's not the camera for wide-open warehouse floors or full-outdoor exposure—know your distance and lighting constraints before committing to the 2MP resolution.
