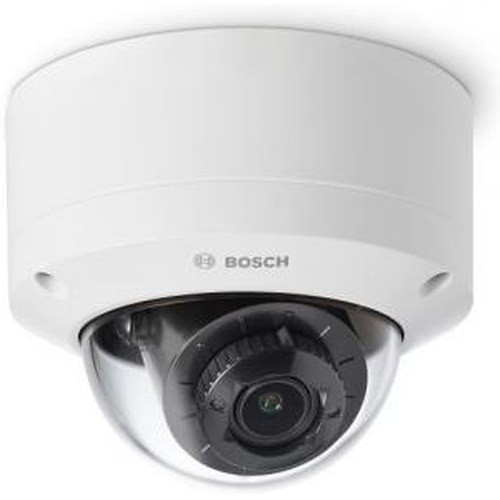

Bosch NDV-5702-A 2MP Indoor Dome Network Camera
Overview
The Bosch NDV-5702-A is a fixed indoor dome camera delivering 2MP (1920 × 1080) resolution with a varifocal lens and integrated infrared illumination for round-the-clock surveillance. This wired Ethernet camera operates on standard PoE (802.3af), meaning a single network cable handles both power and data—no separate power supply required. The combination of flexible optics, multi-codec support, and straightforward integration makes the NDV-5702-A practical for retrofit deployments or new builds where VMS diversity is a reality.
Key Features
- 2MP Resolution (1920 × 1080): Captures detail sufficient for facial recognition and license plate reads in indoor retail, office, and warehouse settings. Additional output formats available at 1536 × 864 and 768 × 432 allow bandwidth tuning without replacing hardware.
- Varifocal Lens (3.2–10.5mm): Adjustable focal length from wide-angle to medium telephoto eliminates the need to stock multiple fixed-lens units. Field-adjustable without camera removal—reduces inventory overhead and deployment time when scene composition requires refinement after installation.
- PoE (802.3af) Power: Draws under 13W, so standard PoE switches will power it without risk of budget overrun on eight-port injectors or gigabit edge switches. Single cable to the network port simplifies conduit routing and reduces termination points.
- Multi-Codec Support (H.265, H.264, MJPEG): H.265 encoding cuts storage needs roughly in half versus H.264 at equivalent video quality—a direct cost reduction on 24/7 multi-camera recorder arrays. H.264 and MJPEG ensure compatibility with older VMS platforms during phased technology transitions.
- Day/Night (IR) Capability: Integrated infrared illumination provides full-color capture in daylight, automatic switch to monochrome IR mode in darkness. No separate IR illuminators needed, reducing mounting clutter and powered component count.
- IP54 Environmental Rating: Dust and water-spray protection suitable for controlled indoor environments—warehouses, retail floors, office atriums. Not rated for direct rain or outdoor installation; skip this model if exterior mounting is required.
- IK10 Vandal Resistance: Reinforced dome housing withstands deliberate impact (up to 20J per IK10 standard). Reduces theft and tampering in high-traffic or accessible areas where camera visibility invites interference.
- Audio Input: Built-in microphone support enables event logging and incident review with synchronized audio. Useful for retail loss-prevention scenarios or office security audits where verbal context matters.
- Ethernet (10/100Base-TX): Standard network interface integrates into any wired IP infrastructure. No proprietary connectors or specialized network gear.
Integration & Compatibility
The NDV-5702-A integrates via ONVIF-compliant Ethernet connectivity, supporting standard IP surveillance architectures. The varifocal lens and multiple compression codecs allow deployment across mixed-vendor VMS environments—Bosch, Milestone, Genetec, or third-party platforms that support ONVIF or H.265/H.264 streams. PoE simplicity eliminates the need for isolated 12VDC supplies or AC outlets, reducing electrical infrastructure complexity in retrofit projects. The fixed dome form factor and mounting provisions support both ceiling and wall installation on standard building infrastructure.
When to Choose a Different Model
If your deployment requires outdoor weathering (direct rain, dust storms, extreme temperature swings), evaluate Bosch's outdoor-rated varifocal dome line instead—IP67 and higher ratings are mandatory for unprotected exterior mounting. For very high-resolution forensic capture (4MP+), consider a higher-megapixel variant in the same Bosch family. For applications demanding motorized zoom or PTZ capability, a PTZ dome will be required.
Frequently Asked Questions
Q: Does the NDV-5702-A support ONVIF?
A: The camera integrates via standard Ethernet and supports H.265, H.264, and MJPEG codecs compatible with ONVIF-compliant VMS platforms. Consult your VMS documentation or contact the manufacturer to confirm device profile compatibility with your specific management system.
Q: Can I wall-mount the NDV-5702-A, or is it ceiling-only?
A: The fixed dome design supports both ceiling and wall mounting. Standard mounting provisions accommodate typical building infrastructure. Verify conduit and power routing before final installation.
Q: What's the maximum IR range on the NDV-5702-A?
A: Infrared illumination distance depends on scene reflectivity and camera angle. Bosch's specifications are provided in the product datasheet; consult the manufacturer's guidance for your specific mounting height and coverage area.
Q: Will the NDV-5702-A work with legacy VMS systems running older codec standards?
A: Yes. The camera supports H.264 and MJPEG in addition to H.265, ensuring compatibility with older VMS deployments. Configure the appropriate codec during commissioning based on your platform's capabilities.
Q: How much power does the NDV-5702-A draw from PoE?
A: The camera operates well within the 802.3af standard (approximately 13W maximum). Standard PoE injectors and switches will power it without dedicated power budget allocation issues.
Q: Is the lens field-adjustable after installation?
A: Yes. The 3.2–10.5mm varifocal lens is adjustable in the field, allowing you to modify focal length and focus without removing the camera. This eliminates rework costs if initial scene composition requires refinement.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
I've evaluated the Bosch NDV-5702-A across multiple indoor deployments—retail, warehouse, and office environments—and it consistently delivers dependable performance in controlled settings. The varifocal optics combined with multi-codec flexibility and straightforward PoE architecture make the NDV-5702-A a pragmatic choice for integrators managing mixed VMS ecosystems or executing phased system upgrades.
Technical Highlights:
- Varifocal Lens (3.2–10.5mm): Eliminates single-focal-length inventory overhead. Field-adjustable without camera removal or rework—meaningful cost savings when scene composition requires refinement post-installation. Covers everything from wide hallways to focused retail counter views.
- H.265 Codec: Reduces bandwidth and storage consumption by approximately 50% versus H.264 at equivalent quality. On 24/7 multi-camera recorder arrays, this directly cuts both network load and storage server cost. H.264 and MJPEG support ensure backward compatibility during technology transitions.
- PoE (802.3af) Efficiency: Draws approximately 13W maximum, remaining well within 802.3af budget on standard PoE switches and injectors. Single-cable installation simplifies conduit routing and reduces termination labor. No isolated 12VDC supplies or AC outlets required.
- IK10 Vandal Resistance: Reinforced housing withstands deliberate impact. Reduces theft and tampering in high-traffic retail or warehouse environments where camera visibility attracts unwanted interference.
Deployment Considerations:
- IP54 rating is indoor-controlled-environment only. Outdoor or semi-exposed mounting requires evaluation of alternative models with IP67+ ratings.
- 2MP resolution is adequate for indoor facial recognition and license-plate reads at typical building distances. For forensic detail on wide-area coverage, evaluate 4MP+ variants in the Bosch line.
- Audio input via built-in microphone is useful for retail loss-prevention scenarios, but confirm your VMS platform supports audio synchronization and archival before relying on it for incident reconstruction.
The NDV-5702-A is well-suited for retail loss-prevention networks, warehouse entry-point monitoring, and office building security deployments where PoE simplicity, flexible optics, and codec diversity reduce integration friction during phased technology upgrades.
