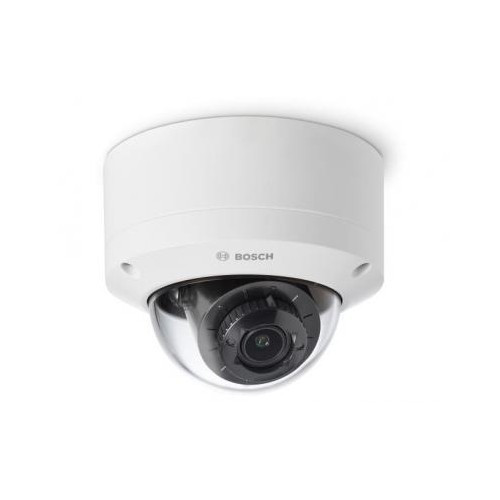

Bosch NDE-5702-A 2MP Outdoor Vandal Dome Camera
Overview
The Bosch NDE-5702-A is a compact 2MP outdoor dome engineered for high-impact environments where durability and optical flexibility are non-negotiable. The IK10 vandal-resistant enclosure and IP66 environmental rating mean the camera withstands both environmental exposure and deliberate physical tampering without degradation. The varifocal 3.2–10.5 mm lens allows field-of-view adjustment during installation—you configure the focal length on-site rather than returning to swap hardware or deploy multiple SKUs. Standard PoE (802.3af) power keeps installation simple: one cable delivers both video and power, eliminating the need for auxiliary AC mains or UPS provisioning at the camera location. This combination makes the NDE-5702-A well-suited to outdoor public spaces, facility perimeters, and transit environments where impact resistance and environmental durability are baseline requirements.
Key Features
- 2MP Resolution: Delivers 1920 × 1080 clarity sufficient for general surveillance, identity verification at medium range (10–15 feet), and forensic review of incidents. Acceptable for wide-area monitoring; upgrade to 5MP or 8MP variants if facial recognition at distance or fine detail on large expanses is required.
- Varifocal Lens (3.2–10.5 mm): On-site focal length adjustment means you avoid the expense and scheduling friction of site revisits. Installers optimize coverage for mixed sightlines—parking structures, building entries, and corridor intersections all benefit from this flexibility. Eliminates the need for multiple SKU inventory.
- IK10 Vandal Resistance: Rated to withstand high-impact abuse (20 joules, equivalent to a sledgehammer strike). Critical for unsheltered public areas, transit hubs, and high-traffic zones where deliberate tampering is a real risk. The optics and housing survive the hit; the camera stays online.
- IP66 Environmental Rating: Complete protection against dust ingress and heavy water jet spray. Direct mounting under eaves or in covered outdoor positions is safe; full submersion still requires IP67 or higher. No secondary weatherproofing enclosures needed for rain, salt spray, or seasonal runoff.
- Day/Night IR Capability: Integrated infrared illumination enables continuous surveillance in low-light and zero-light conditions. The unit automatically switches to IR mode at dusk, extending detection capability 24/7 without auxiliary lighting infrastructure—a cost and installation advantage in rural or unlit perimeter deployments.
- H.265, H.264, and MJPEG Compression: Multi-codec support ensures compatibility with legacy and current-generation video management systems. H.265 encoding cuts bitrate roughly 40–60% versus H.264 at equivalent quality—meaningful on 24/7 multi-camera recorders where storage and network bandwidth are constrained. Motion-JPEG remains an option for systems that require high frame-rate or forensic-grade archival.
- Built-in Microphone: Audio capture enables environmental sound logging and two-way voice communication where the VMS platform supports it. Correlates audio and video events for incident investigation.
- PoE (802.3af) Power: Draws under 13 watts, so it operates safely on standard 802.3af PoE infrastructure without straining your switch's power budget. No separate power supply or outdoor-rated UPS required at the camera.
Integration & Compatibility
The NDE-5702-A is ONVIF-compliant and integrates with standard network video management platforms. Multi-codec output (H.265, H.264, MJPEG) ensures compatibility across Milestone, Genetec, Axis Camera Station, and other ONVIF-aware VMS environments. The varifocal lens and microphone are software-controllable in most platforms, allowing remote zoom and audio enable/disable post-deployment. PoE power eliminates integration complexity—no AC trenching, no conduit runs, no local power conditioning.
Deployment Considerations
Deploy the NDE-5702-A outdoors where impact resistance is essential: public plazas, building entries, parking structures, transit stations, and facility perimeters. The varifocal lens is particularly valuable when sightlines vary—you set the focal length once during installation rather than scheduling revisits. The IP66 + IK10 combination is required for unsheltered or high-exposure positions; sheltered eave mounting works equally well. The day/night IR extends detection into unlit zones, making the camera suitable for 24/7 surveillance without supplemental lighting. If you need wider dynamic range in high-contrast outdoor scenes (sun and shadow simultaneously), confirm that your VMS supports WDR post-processing; the NDE-5702-A does not include integrated WDR electronics.
When to Choose a Different Model
If your deployment requires higher resolution (facial recognition at distance, license plate capture, or fine detail on large areas), consider a higher-megapixel variant in the Bosch outdoor dome line. If you need faster pan-tilt-zoom coverage of wide areas, a PTZ camera in the FLEXIDOME IP range is more appropriate. If mounting indoors (conference rooms, interior corridors), an indoor dome variant eliminates the cost and bulk of the vandal-resistant enclosure.
Frequently Asked Questions
Q: Does the NDE-5702-A support two-way audio?
A: The camera includes a built-in microphone for audio capture and environmental sound logging. Two-way voice communication (speaker output) depends on VMS platform support and whether the system is configured to enable it. Confirm with your VMS vendor before specifying the feature in a SLA.
Q: What is the IR illumination range?
A: The integrated infrared illumination supports night surveillance; the exact range depends on scene reflectivity and lens focal length setting. Verify effective range with the manufacturer's detailed IR performance curves in the datasheet or request a sample in your actual deployment environment.
Q: Can I adjust the lens remotely after installation?
A: The varifocal lens is typically adjusted manually on-site during commissioning. Most VMS platforms do not support remote focal-length changes via the network; confirm with your system integrator if remote zoom is a requirement.
Q: Is the NDE-5702-A NDAA Section 889 compliant?
A: Compliance status is not stated in the available evidence. Contact the manufacturer or your reseller for current NDAA or TAA certification if federal procurement is required.
Q: What is the maximum frame rate at 2MP?
A: Frame rate specifications are not detailed in the current evidence. Refer to the manufacturer datasheet or contact Bosch support for exact frame-rate performance at 2MP resolution.
Q: Will the NDE-5702-A work with my existing ONVIF VMS?
A: Yes. The NDE-5702-A is ONVIF-compliant and supports H.264, H.265, and MJPEG, so it integrates with any ONVIF-aware platform (Milestone, Genetec, etc.). Confirm codec support in your specific VMS version before deployment.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed dozens of outdoor domes in public-facing environments, and the NDE-5702-A's combination of IK10 impact resistance and varifocal optics makes it a practical choice for facilities that can't afford frequent maintenance cycles. The 3.2–10.5 mm varifocal lens eliminates the need to make focal-length decisions before you're on-site and actually seeing the sightlines—that alone saves budget and schedule friction on mixed-coverage deployments like parking structures and campus perimeters.
Technical Highlights:
- Varifocal 3.2–10.5 mm Lens: On-site adjustment prevents the cost and downtime of returning to swap fixed lenses. Especially valuable in installations where lighting, building placement, or setback distances vary.
- IK10 Vandal Rating + IP66 Environmental Sealing: This combination means the camera survives both weather exposure and deliberate high-impact abuse without secondary enclosures or protective cages. Deploy it unshielded in high-traffic or high-risk outdoor zones.
- H.265 Codec: 40–60% bitrate reduction versus H.264 translates to lower storage costs and reduced network load on 24/7 multi-camera deployments. Meaningful savings at scale (50+ cameras).
- PoE (802.3af) at ~13W: Operates on standard PoE infrastructure without straining switch power budgets. No AC conduit runs or outdoor UPS provisioning required.
Deployment Considerations:
- IR Performance: Day/night IR extends coverage into unlit zones, but verify actual range in your environment before committing. Reflectivity and lens setting matter; request a field trial if night detection distance is mission-critical.
- 2MP Limitation: 2MP is sufficient for general surveillance and mid-range identity verification (10–15 feet), but inadequate for facial recognition at distance or license plate capture on wide-area deployments. Plan upgrades to 5MP or 8MP variants if forensic detail becomes a requirement.
- WDR Absence: The NDE-5702-A does not include integrated WDR electronics. If your deployment involves simultaneous high-contrast scenes (sun and deep shadow), you'll rely on post-processing WDR in the VMS—confirm platform capability before design approval.
The NDE-5702-A is a solid fit for outdoor public-area surveillance, transit hubs, facility perimeters, and parking structures where durability and installation flexibility outweigh the need for ultra-high resolution. It is not the choice for facial recognition at distance or for deployments requiring integrated wide-dynamic-range electronics.
Key Specifications:
Color: White
