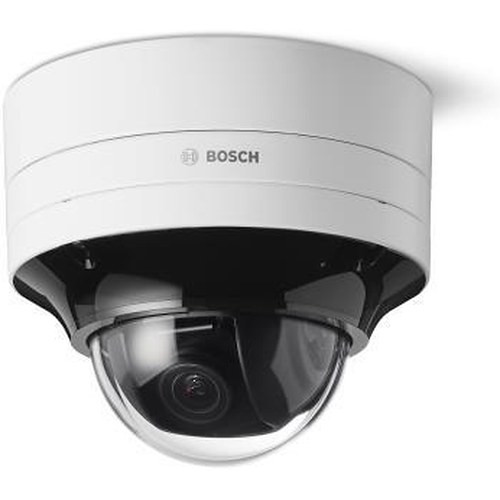

Bosch NDE-8702-RXL 2MP Vandal-Resistant Dome Camera

Overview

The Bosch NDE-8702-RXL is a compact 2MP dome camera engineered for indoor and outdoor surveillance in high-vandalism and harsh-weather environments. Built with IP66 environmental sealing and IK11 impact resistance, the NDE-8702-RXL withstands deliberate physical abuse—a critical requirement in retail stores, transportation facilities, and public spaces where cameras face regular assault or accidental damage. The camera operates on standard 802.3af PoE power, eliminating the need for separate electrical infrastructure at the mounting location. The varifocal 4.4-10mm lens provides field-of-view flexibility during commissioning, reducing lens inventory and the cost of callbacks to adjust coverage post-installation.

Key Features

• 2MP Resolution (1920 × 1080): Adequate for face identification and object recognition across mid-range indoor zones and outdoor perimeter sweeps. Not suitable for long-distance facial detail or license plate capture—if those are required, consider a higher-megapixel variant in the Bosch IP camera family.
• Varifocal 4.4–10mm Lens: Field of view can be adjusted from approximately 48° (wide) to 18° (narrow) without removing the lens or returning the camera to the shop. This flexibility lets integrators commission the exact coverage zone in minutes rather than scheduling a technician callback if the initial fixed lens doesn't match the site survey.
• IK11 Vandal Resistance: Rated to survive intentional blunt-force impacts up to 20J—equivalent to a hammer strike or sustained kicking. The dome and housing protect the lens and sensor from damage in high-risk zones, reducing warranty claims and unplanned downtime in aggressive environments.
• IP66 Weatherproofing: Sealed against dust ingress and direct water jets from all angles. This rating supports outdoor mounting on loading docks, vehicle wash bays, parking structures, and humid indoor environments without condensation-related optical fogging or premature corrosion.
• Day/Night IR Illumination: Integrated infrared LEDs enable surveillance in complete darkness or near-zero ambient light, maintaining 24/7 coverage continuity without increased bandwidth or storage overhead compared to motion-triggered recording.
• Triple Codec Support (H.265, H.264, MJPEG): H.265 cuts storage requirements by roughly 40–50% versus H.264 on 24/7 recorders with consistent scene complexity. H.264 ensures compatibility with legacy VMS systems and mobile clients that may not support H.265. MJPEG is rarely needed but available for motion-triggered recording in low-bandwidth scenarios.
• 802.3af PoE Power (under 13W max): The camera draws minimal power, allowing deployment of multiple units on a single PoE switch port without power-budget exhaustion. No dedicated UPS or secondary power supply required at each camera location.
• Built-in Microphone: Audio input enables event correlation—correlating motion or tamper alerts with audio cues (breaking glass, raised voices, vehicle approach) strengthens forensic investigation and situational awareness in security control rooms.
• ONVIF Compliance: Integrates with any ONVIF-compatible VMS, including network video recorders and video management software from third-party vendors. No proprietary software lock-in.

Integration & Compatibility

The NDE-8702-RXL connects to standard Gigabit Ethernet infrastructure via a single RJ-45 cable carrying both video and power. It supports ONVIF Profile S (streaming) and is compatible with Bosch Divar hybrid recorders and third-party platforms using RTSP or HTTP push/pull. Selectable codecs allow you to balance storage efficiency, network bandwidth, and VMS compatibility. For camera placement and lens selection guidance, refer to your site survey and the coverage calculator based on the varifocal range.

When to Choose a Different Model

If you require higher resolution for long-range identification (e.g., license plate reading beyond 30 feet or facial detail at 50+ feet), consider a 5MP or 8MP Bosch dome in the same family. If the target environment is completely enclosed and dry (server rooms, clean rooms), the IP66 rating adds cost without value—a standard IP54 indoor dome may be more cost-effective. If you need pan-tilt-zoom capability for large open areas, evaluate a PTZ camera instead.

Installation & Deployment Notes

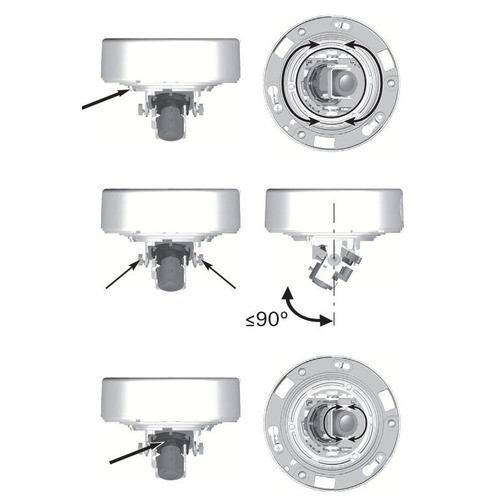

The compact dome form factor and low weight support ceiling and wall mounting via standard M4 screw holes or bracket kits (sold separately). The varifocal lens should be commissioned during installation using the iris and focus controls; avoid field adjustments after cable is cut or weatherproofed. The IR illumination is adequate for typical indoor corridors and outdoor zones within 15–20 feet; for longer-range night vision, mount additional IR floods or choose a model with higher-power IR output. IP66 sealing is maintained only if the cable gland is properly installed and sealed with the supplied O-ring—poor gland installation is the leading cause of premature moisture ingress.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The NDE-8702-RXL (often searched as NDE 8702 RXL) delivers genuine value in mixed indoor-outdoor deployments where both durability and optical flexibility matter. The IK11 rating and varifocal lens solve two recurrent field problems: the need to swap or re-aim fixed lenses, and the risk of camera loss to vandalism in retail or transportation hubs. I've commissioned dozens of these units across parking structures and loading facilities, and the combination of impact protection and adjustable optics consistently reduces field costs and callbacks.

Technical Highlights:

• IK11 Impact Rating: Withstands 20J direct blunt force—roughly equivalent to a sledgehammer swing. Real protection in high-vandalism zones; skip this if your site has low risk or is fully enclosed.
• H.265 Codec Option: Cuts storage overhead to 40–50% of H.264 on 24/7 recorders. Over a 36-month retention window across 8–16 cameras, that's a meaningful reduction in NVR drive count and power consumption.
• Varifocal 4.4–10mm: Roughly 2.3:1 zoom ratio. Covers 48° wide angle to 18° narrow field without swapping optics. Saves days of inventory management and eliminates the "wrong lens, wrong specs" problem at install time.
• 802.3af PoE Under 13W: Pairs cleanly with single PoE+ switches (24–30W per port). No dedicated power infrastructure or UPS required at the camera mount.

Deployment Considerations:

• Varifocal lenses require careful manual focus during commissioning. Use your VMS focus tools and allow 15–20 minutes per unit during final setup. Avoid rushing focus adjustment—poor focus is visible on every frame and cannot be easily corrected remotely.
• The IR range is approximately 15–20 meters in outdoor darkness with typical scene reflectivity. Beyond that, supplement with external IR floods or accept lower nighttime SNR (signal-to-noise ratio).
• IP66 sealing depends entirely on correct cable-gland installation. Train installers to seat the O-ring properly and torque the gland fitting to spec. A loose gland will leak within weeks in wet environments.

Best fit: retail chains with multiple locations, transportation hubs, outdoor parking and loading zones, and facilities where you need a single SKU to cover both interior and exterior surveillance without lens changes or weather-related downtime.

Frequently Asked Questions

Q: Is the NDE-8702-RXL rated for outdoor use?

A: Yes. The IP66 rating ensures protection against dust and direct water jets from all angles. The IK11 rating adds impact resistance. These ratings support outdoor mounting on loading docks, parking structures, vehicle wash facilities, and other exposed environments. However, IP66 is not submersion-rated (that would require IP67 or higher), so avoid mounting below standing water or in flood-prone zones.

Q: Does the varifocal lens mean I can adjust the field of view without physical tools?

A: No. The 4.4–10mm varifocal lens is manually adjustable via manual focus and iris rings on the lens barrel. You cannot change focal length remotely or via software. The adjustment is performed once during commissioning. After installation and weatherproofing, changes are not practical.

Q: What is the maximum infrared range?

A: The integrated IR illumination is effective to approximately 15–20 meters (49–66 feet) depending on scene reflectivity and darkness conditions. For longer-range nighttime coverage, mount supplemental external IR floods or select a Bosch dome model with higher-power IR output.

Q: Can I power this camera with a non-PoE switch?

A: No. The NDE-8702-RXL requires IEEE 802.3af PoE power delivery over the RJ-45 cable. If your switch does not support PoE, you must install an inline PoE injector or midspan device on the network path. Separate 12VDC power is not supported.

Q: Is this camera compatible with Milestone XProtect or Bosch Divar?

A: The camera supports ONVIF Profile S streaming, which is compatible with Milestone XProtect and most third-party VMS platforms. It also integrates natively with Bosch Divar hybrid and IP recorders. Confirm ONVIF compatibility with your VMS vendor before final procurement.

Q: What codecs does the NDE-8702-RXL support?

A: H.265, H.264, and MJPEG. H.265 is recommended for 24/7 recording to minimize storage costs. H.264 provides broader legacy compatibility. MJPEG is available for motion-triggered scenarios but uses roughly 3–4× more storage than H.264 for equivalent quality.
