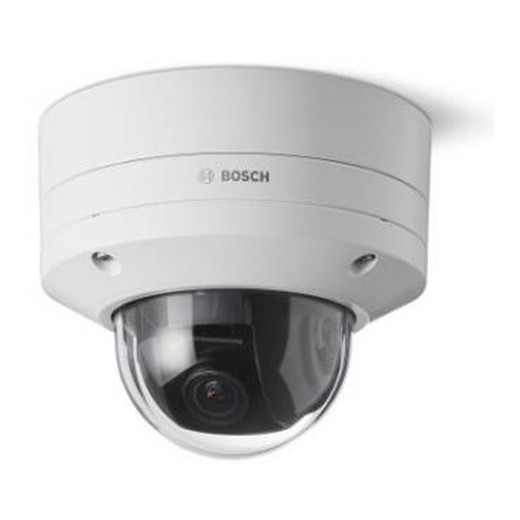

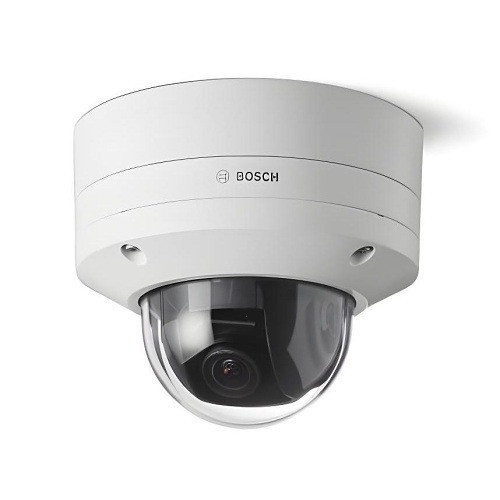

Bosch NDE-8702-RX FLEXIDOME 8100i – X series 2MP Outdoor Dome Camera

Bosch NDE-8702-RX Vandal-Resistant Dome Camera

Overview

The Bosch NDE-8702-RX is a compact, surface-mounted dome camera engineered for indoor and outdoor deployments where durability and weather resistance are required. This 2MP fixed-dome camera combines IP66-rated environmental protection with IK11 vandal resistance, making it suitable for transit facilities, retail environments, and open-air installations. The camera operates on standard PoE (802.3af) power, simplifying installation and eliminating the need for dedicated power infrastructure. With day/night capability through integrated infrared and a varifocal 4.4-10mm lens, the NDE-8702-RX adapts to varied scene requirements without requiring lens replacement.

Key Features

• 2MP Resolution: Delivers clear, detailed 1920×1080 video suitable for identification and situational awareness in general surveillance applications.
• Varifocal 4.4-10mm Lens: Field of view flexibility enables deployment in wide-area coverage or narrow corridor scenarios without camera repositioning.
• IP66 Environmental Protection: Sealed construction resists dust ingress and high-pressure water jets, meeting requirements for outdoor mounting and wet environments.
• IK11 Vandal Resistance: Engineered mechanical durability withstands impact and deliberate interference, reducing downtime in high-risk deployment zones.
• Day/Night Infrared Imaging: Integrated IR illumination captures video in zero-light conditions, enabling 24/7 monitoring without requiring external lighting.
• Multi-Codec Compression: H.265, H.264, and MJPEG codec support optimizes bandwidth and storage utilization across diverse network and archival requirements.
• Built-in Microphone: Audio input supports incident documentation and two-way communication scenarios where voice context enhances investigative value.
• PoE Power (802.3af): Single-cable deployment reduces installation cost and simplifies infrastructure integration with standard PoE switches and midspan injectors.

Integration & Compatibility

The NDE-8702-RX operates as an ONVIF-compatible IP camera, integrating with major VMS platforms and third-party management systems via standard protocols. The multi-codec output strategy ensures compatibility with legacy H.264-based infrastructure while supporting modern H.265 deployments for bandwidth optimization. Firmware-based configuration permits integration with existing Bosch control systems and third-party ONVIF-compliant platforms. The compact form factor and IP66/IK11 rating accommodate both indoor ceiling mount and outdoor wall-mounted applications without enclosure modification.

Typical Deployment Applications

The Bosch NDE-8702-RX addresses surveillance requirements in transit stations, parking structures, retail environments, and educational facilities where weather exposure and vandal risk necessitate robust hardware. The varifocal lens and 2MP resolution balance scene coverage and detail capture for identification-class applications. Integration with PoE infrastructure reduces total cost of ownership in network-connected surveillance architectures, while the IK11 vandal rating eliminates the need for protective enclosures in public-access areas.

James Everett

Perspective based on aggregated and affiliated engineering team experience.

During integration planning for a multi-site retail deployment, the Bosch NDE-8702-RX proved to be a practical choice where both environmental durability and installation simplicity were non-negotiable. The varifocal lens eliminates the need for multiple SKUs across different mounting scenarios, and the IP66/IK11 combination reduces ongoing maintenance overhead in outdoor and semi-protected zones.

Technical Highlights:

• Codec Flexibility: H.265, H.264, and MJPEG support permits bandwidth optimization without sacrificing compatibility with mature VMS deployments or legacy archival systems.
• Mechanical Durability: The IK11 rating and sealed IP66 enclosure mean no protective dome replacement or housing repair following weather exposure or minor impact events—critical for reducing operational disruption.
• Single-Cable Power: PoE 802.3af operation eliminates conduit runs for separate 24VAC or 12VDC, reducing installation labor and infrastructure complexity in retrofit scenarios.

Deployment Considerations:

• Confirm PoE switch or midspan capacity before wide-scale rollout; while 802.3af is standardized, budget allocation across multiple cameras requires verified power budget planning.
• The varifocal 4.4-10mm range provides flexibility, but pre-deployment site surveys ensure optimal lens positioning before ceiling or wall mount installation.
• Microphone audio is supported; verify that local privacy regulations and facility policies permit audio recording before enabling on-camera audio features.

The NDE-8702-RX delivers reliable performance in high-wear environments where both weather resistance and impact durability matter. Its standard PoE power and ONVIF compliance keep integration straightforward, while the multi-codec output strategy provides path flexibility as surveillance infrastructure evolves.
