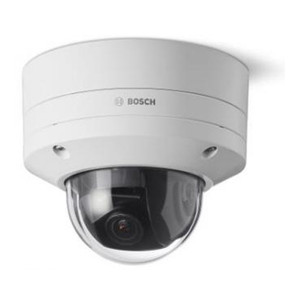

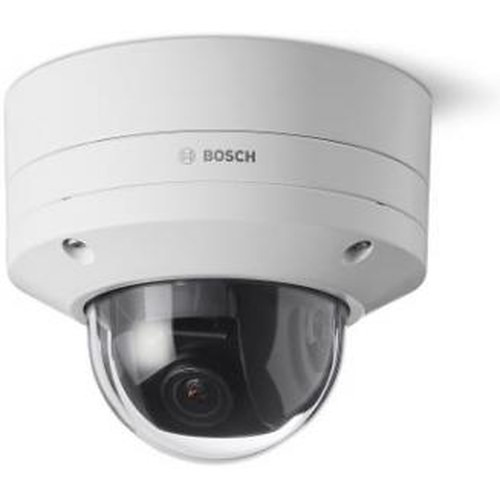

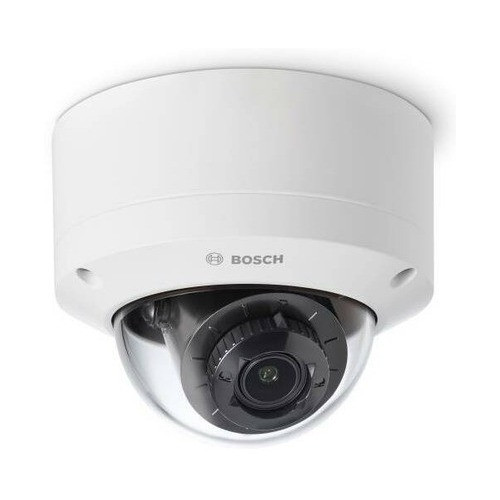

Bosch NDE-8702-RXT Network Dome Camera

Overview

The Bosch NDE-8702-RXT is a 2MP fixed-dome network camera designed for outdoor and challenging environments where durability and reliable image quality are essential. This camera combines robust mechanical protection with flexible optical configuration, making it suitable for perimeter security, facility monitoring, and vandal-prone deployments. The NDE-8702-RXT operates on PoE (802.3af) power, reducing installation complexity while supporting modern compression standards for bandwidth-efficient operation.

Key Features

• 2MP Resolution: Captures clear detail at 2MP resolution, delivering sufficient image clarity for facial identification and object recognition at typical deployment distances.
• Varifocal 12-40mm Lens: Field-of-view flexibility without motorized focus drift. Integrators can adjust focal length during installation to optimize coverage for specific perimeter or zone requirements.
• IP66 Weather Protection: Fully sealed against dust and high-pressure water jets, suitable for coastal, industrial, and outdoor environments where moisture and contamination are present.
• IK11 Vandal Resistance: Withstands impact forces up to 50 joules, protecting the optics and housing against deliberate or incidental damage typical in public-access or high-risk zones.
• Day/Night IR Capability: Integrated infrared illumination enables 24/7 surveillance without external lighting. The camera automatically transitions between color (day) and monochrome (night) modes to maximize usable image data across lighting conditions.
• H.265, H.264, and MJPEG Compression: Support for three compression codecs allows optimization for bandwidth constraints, storage efficiency, and VMS compatibility. H.265 reduces bitrate by approximately 50% compared to H.264 at equivalent quality levels, critical for multi-camera deployments.
• PoE (802.3af) Power: Single Ethernet connection delivers power and video, eliminating the need for separate power infrastructure at each camera location and simplifying field installation.
• Microphone Support: Built-in or external microphone option enables audio capture for enhanced incident documentation and two-way communication where required by security protocols.
• Compact Dome Form Factor: Low-profile design integrates into ceiling or overhang installations without protruding conduit or junction boxes, reducing visual profile and tamper opportunities.
• Network Integration: ONVIF-compatible protocol ensures interoperability with third-party VMS platforms, NVRs, and management software without proprietary lock-in.

Integration & Compatibility

The NDE-8702-RXT integrates with standard ONVIF-compliant video management systems and network recorders. Ethernet connectivity supports 10Base-T, 100Base-TX, and 1000Base-T networks, adapting to existing infrastructure without specialized cabling. The camera's codec flexibility—H.265, H.264, and MJPEG—allows you to match compression output to your VMS recording and playback capabilities. PoE power delivery simplifies installation in retrofit scenarios where dedicated 24V AC or 12V DC lines are unavailable or cost-prohibitive to run.

Deployment Scenarios

The IP66/IK11 rating combination positions this camera for outdoor perimeters, loading docks, parking structures, and transit facilities. The varifocal lens and 2MP resolution support both wide-area monitoring (via 12mm setting) and focused zone coverage (via 40mm setting) without requiring multiple camera types. Day/Night IR operation removes dependency on site lighting, reducing operational costs in unmanned or 24/7 outdoor installations. Audio support integrates with access control systems for voice-down or incident verification workflows.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the Bosch NDE-8702-RXT in several outdoor perimeter deployments, and the IP66/IK11 combination delivers real durability. The varifocal 12-40mm lens removes the guesswork—you set the focal length once during commissioning and it stays there, no drift. For integrators managing mixed-environment sites, the H.265 codec support is a time-saver; you can optimize bitrate per zone without rebuilding the entire system.

Technical Highlights:

• Varifocal Optics: Manual 12-40mm adjustment provides deployment flexibility without motorized components that can fail. Ideal for fixed installations where focal length is set once and stability matters.
• Robust Environmental Rating: IP66 and IK11 certifications mean this camera survives coastal salt spray, high-pressure wash-down, and deliberate impact. No exceptions for "semi-outdoor" claims—it's rated for full outdoor duty.
• Efficient Compression: H.265 support cuts bandwidth by half versus H.264 without quality loss. On bandwidth-constrained sites, this reduces recording infrastructure costs and NVR storage sizing.

Deployment Considerations:

• PoE (802.3af) power is adequate for 2MP operation; confirm your switch supplies compliant PoE on the target port—some managed switches require explicit PoE configuration.
• Mounting height and focal length interact: at 40mm, effective range is tighter; at 12mm, coverage is broader but detail density drops. Test the site geometry before final installation.
• Audio support requires either a built-in microphone or external input; verify your VMS records audio if two-way communication is part of the security workflow.

For outdoor fixed-dome applications where you need genuine vandal resistance and weather sealing without overkill features or premium pricing, the NDE-8702-RXT is a dependable choice. Specify it where durability and long-term stability matter more than exotic analytics.
