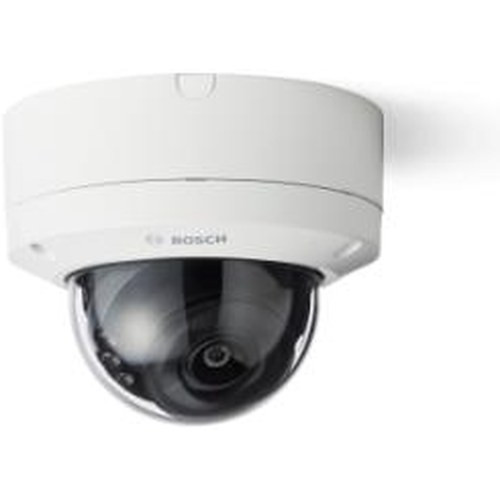

Bosch NDE-3703-AL Outdoor Dome Camera with Varifocal Lens
The Bosch NDE-3703-AL is a 5MP compact dome camera engineered for fixed outdoor surveillance deployments requiring environmental durability and flexible focal-length coverage. Built around a varifocal 3.3–10.2 mm lens, the NDE-3703-AL delivers identification-class detail in general perimeter monitoring and entry-point applications. The camera integrates native H.265, H.264, and MJPEG compression, allowing you to match codec choice to your network recording infrastructure—H.265 cuts storage overhead roughly in half compared to H.264 on 24/7 continuous recording, a meaningful advantage if you're running dozens of cameras on constrained storage budgets. Power delivery via single PoE (802.3af) keeps installation straightforward: a single Cat5e or Cat6 run replaces the need for both network and separate power cabling.
Key Features
- 5MP Resolution (2592 × 1944) — Provides pixel density suitable for facial identification and vehicle plate recognition in typical outdoor distances (10–30 meters), balancing detail capture against bandwidth and storage requirements.
- Varifocal Lens (3.3–10.2 mm) — Field-adjustable zoom eliminates the need to swap optics or remount the camera when coverage areas shift. Wide-angle framing (3.3 mm) suits larger perimeter zones; narrow telephoto (10.2 mm) pulls identification detail from distance without moving hardware.
- Day/Night IR with Automatic Switching — Integrated 850nm infrared illumination enables full-motion capture in complete darkness, with automatic filtering between day and night modes. No manual mode switching required for 24/7 unattended operation.
- IP66 Environmental Sealing — Rated for direct rain, water spray, and dust ingress. Install with confidence in wet environments (rain, spray, carwash adjacency), but note that IP66 excludes full submersion—applications requiring underwater mounting need IP67 or higher ratings.
- IK10 Vandal Resistance — Impact-rated housing withstands 20-joule strikes (equivalent to a steel ball dropped from 1.5 meters). Protects against accidental contact and deliberate tampering in accessible outdoor locations.
- PoE (802.3af) Power Delivery — Draws under 13W maximum, staying within standard 802.3af budgets (15.4W per port). Eliminates the need for local 12VDC supplies or AC outlets, reducing installation cost and simplifying troubleshooting on multi-camera deployments.
- Efficient Compression Options — H.265 support reduces bitrate 40–60% relative to H.264 at equivalent quality. H.264 and MJPEG modes ensure compatibility with legacy VMS platforms and edge recorders that lack H.265 decoding, avoiding expensive transcoding operations.
- Integrated Microphone Input — Supports two-way audio communication and event-triggered audio logging. Useful for perimeter monitoring where you need to correlate audio events with motion or intrusion detection, though note that audio licensing and privacy laws vary by jurisdiction.
Integration & Compatibility
The NDE-3703-AL implements ONVIF Profile S support, enabling plug-and-play integration with third-party VMS platforms including Milestone XProtect, Genetec, and open-source NVR systems. Native triple-codec output (H.265/H.264/MJPEG) avoids transcoding overhead on systems with mixed codec support. Microphone input streams audio alongside video for synchronized event logging without separate audio infrastructure.
Deployment Considerations
The varifocal design allows post-installation focal adjustment without physical reinstallation, reducing site visits when initial coverage assessments change. IP66 and IK10 ratings make this camera suitable for outdoor perimeter, parking structures, and entry gates where weather durability and impact protection are mandatory. PoE power keeps installation to single-cable runs on standard Cat5e/Cat6 infrastructure, simplifying both initial deployment and future remediation. The 3.3–10.2 mm range covers most fixed outdoor applications; if your site requires wide-area scanning with motorized zoom, consider a higher-power PTZ variant instead. For environments with extreme cold (-40°C or below) or high heat (above 60°C), verify operating-temperature ratings against your climate zone before deployment.
Frequently Asked Questions
Q: What's the maximum infrared range on the NDE-3703-AL?
A: The integrated IR illumination supports full-motion video in complete darkness. Effective range and visibility distance depend on scene reflectivity and lens focal length; narrow telephoto (10.2 mm) pulls detail from greater distance than wide-angle (3.3 mm). Manufacturer documentation does not specify an absolute distance figure, so field testing in your lighting conditions is recommended.
Q: Can I adjust the focal length after installation?
A: Yes. The varifocal lens allows you to adjust focal length (3.3–10.2 mm) from the front of the dome without removing the camera or accessing internal optics. This simplifies coverage fine-tuning if initial layouts require adjustment.
Q: Is the NDE-3703-AL compatible with Milestone XProtect or Genetec?
A: The camera supports ONVIF Profile S, enabling integration with most third-party VMS platforms including Milestone XProtect and Genetec. Consult the specific VMS version's compatibility list to confirm codec support (H.265, H.264, or MJPEG) for your deployment.
Q: Does PoE (802.3af) power draw affect my switch power budget?
A: The NDE-3703-AL draws under 13W maximum, well within 802.3af limits (15.4W per port). On a typical 48-port managed PoE switch with 380W total power budget, you can safely deploy 25+ cameras without straining the power supply, though real-world budgets depend on port count and switch model.
Q: Can I use this camera indoors as well as outdoors?
A: Yes. The IP66/IK10 ratings and compact dome form factor are suitable for both outdoor and indoor environments. Indoor deployments benefit from the sealed optics and night-vision capability in low-light zones (lobbies, stairwells, back-of-house areas).
Q: What VMS codecs does the NDE-3703-AL support?
A: The camera natively encodes H.265, H.264, and MJPEG, allowing you to select the codec that best matches your VMS platform and storage constraints. H.265 reduces storage roughly 50% compared to H.264 at equivalent quality; H.264 offers broader legacy compatibility; MJPEG provides simplest decoding on any platform.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have evaluated the Bosch NDE-3703-AL during the planning phase for an outdoor perimeter surveillance retrofit. The combination of IP66 sealing, IK10 impact resistance, and varifocal optics makes this dome a practical choice for facilities that require weather protection and field-adjustable coverage without frequent replacement or re-provisioning. The PoE constraint (802.3af, under 13W) is a fair trade-off for installations where power budgets are ample and cable runs are within standard limits.
Technical Highlights:
- Varifocal 3.3–10.2 mm Lens: Eliminates the need to stock multiple fixed-lens cameras or schedule site revisits when coverage priorities shift. Adjust focal length at the dome face without tools—a time-saver in retrofit scenarios.
- H.265 Codec Support: Cuts storage overhead roughly 50% versus H.264 on 24/7 recording. At 5MP resolution, a typical outdoor perimeter with 8–12 cameras can often fit 30 days of retention on a single 4TB NVR drive instead of two—meaningful savings on multi-camera recorder hardware.
- IP66 / IK10 Durability: IP66 handles direct rain and spray without worry; IK10 absorbs accidental bumps and deliberate contact without optics damage. Deploy with confidence in parking structures, loading docks, and perimeter zones where physical stress is routine.
Deployment Considerations:
- PoE power is constrained to 802.3af (15.4W maximum per port). If your site requires PoE+ or PoE++ (higher-power models with motorized lenses or larger sensors), plan for a different camera family or dedicated injectors.
- Infrared range is scene-dependent and not published as an absolute distance. Plan site survey time to validate IR coverage in your specific lighting conditions before final installation.
- Microphone input requires careful attention to local privacy and recording-consent laws. Verify regulations in your jurisdiction before enabling audio capture.
The NDE-3703-AL is well-suited for retail, warehouse, and industrial perimeter deployments where outdoor durability, simple power infrastructure, and flexible focal-length adjustment take priority over ultra-wide coverage or extreme zoom capability. Its compact form factor and sealed dome housing pair well with managed PoE switches and multi-channel NVRs in distributed surveillance architectures. If your perimeter spans large unobstructed areas or requires rapid pan-tilt-zoom tracking, a PTZ variant may be more appropriate; for fixed-coverage zones with known distance and lighting, the NDE-3703-AL delivers reliable identification-class detail at low total cost.
Key Specifications:
Color: White
