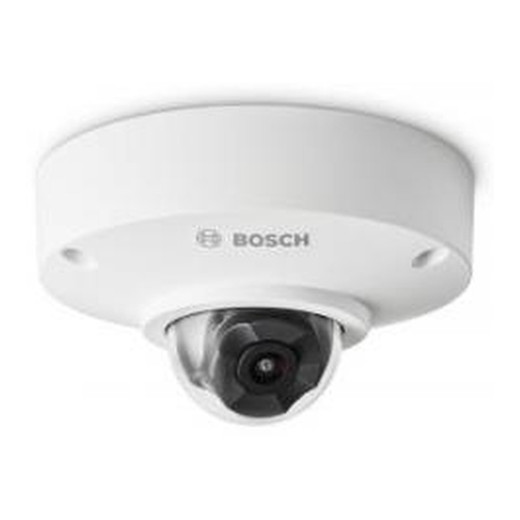

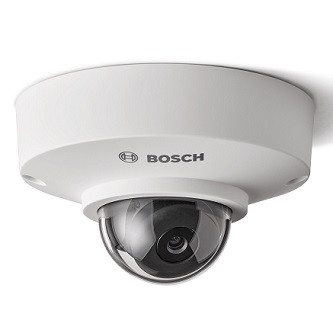

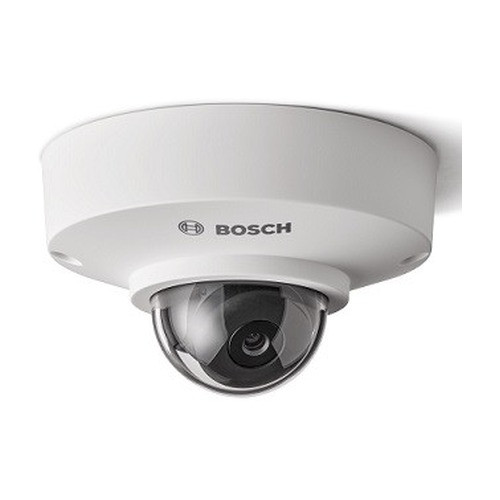

Bosch NUE-3703-F02 5MP Varifocal Outdoor Dome Camera
Overview
The Bosch NUE-3703-F02 (often searched as NUE 3703 F02) is a 5MP varifocal network dome designed for outdoor and mixed indoor/outdoor deployments where environmental durability and flexible focal-length coverage matter. It captures 5 megapixels with H.265, H.264, and MJPEG codec options—your choice depending on whether you prioritize storage efficiency or broad platform compatibility. The entire camera runs on standard PoE (802.3af), meaning a single Ethernet cable delivers both data and power; no auxiliary power supply, no separate circuit required. IP66 weatherproofing and IK10 vandal resistance allow deployment in exposed, high-traffic, or unsupervised locations without worry about rain, dust, or accidental impact damage. Built-in infrared and a mechanical day/night filter support round-the-clock surveillance without supplemental lighting.
Key Features
- 5MP Resolution: Delivers 2592 × 1944 pixel capture, sufficient for facial identification and license-plate recognition at typical security distances—important when forensic-quality video matters more than ultra-wide coverage.
- Varifocal Lens (motorized adjustment): Focal length adjusts in the field without swapping optics, reducing inventory burden and cutting installation time when coverage area isn't fixed at design time. You adjust zoom and focus once and leave it; no continuous refocusing overhead.
- H.265 + H.264 + MJPEG Codec Support: H.265 cuts storage demand roughly 40–60% versus H.264 on modern NVRs—a real factor when recording 24/7 across dozens of cameras. H.264 remains the safe default for legacy systems. MJPEG works anywhere but bloats bandwidth and storage if you're running continuous recording.
- PoE (802.3af) Power: Draws under 13W, so it won't strain a typical managed PoE switch's power budget. One cable eliminates separate power infrastructure—meaningful savings in retrofit projects where running new electrical is costly or infeasible.
- IP66 Weatherproofing: Direct rain, heavy spray, and dust ingress won't penetrate the housing. This is outdoor-grade; if you need full submersion, IP67 is the next step up, but that's rarely needed for mounting locations.
- IK10 Vandal Resistance: Rated to withstand 20J impact (roughly a sledgehammer swing or a thrown brick). Deploy without guards in publicly accessible parking areas, transit stations, or retail environments where casual or deliberate damage is a real risk.
- Day/Night IR Capability: Integrated infrared (850nm) and mechanical filter provide round-the-clock surveillance without dedicated supplemental lights. No supplemental lighting means lower operating cost and no light pollution issues in sensitive environments.
- Built-in Microphone: Audio capture is available for incident correlation, two-way intercom workflows, or evidence recording. Audio codec selection depends on your VMS—confirm support before deploying if audio is critical to your use case.
- Dome Form Factor: Compact dome profile reduces visual clutter compared to bullet cameras and supports 360° mounting flexibility on ceilings, walls, and corner installations without reorienting the entire camera body.
- ONVIF Compatibility: Standards-based IP camera integrates with any ONVIF-compatible VMS (Milestone, Genetec, Hanwha Smartvue, etc.) and third-party NVRs without proprietary plugins or transcoding layers.
Integration & Compatibility
The NUE-3703-F02 operates as a standards-compliant IP camera and integrates seamlessly with IP camera ecosystems supporting ONVIF Profile S or T. Multi-codec output ensures backward compatibility with legacy systems requiring MJPEG while enabling bandwidth-efficient H.265 streams on modern infrastructure. Microphone input integrates into communication and event-triggered recording workflows within most major VMS platforms. The varifocal lens and PoE power design reduce field commissioning time and support rapid deployment across multi-site security programs. Network connectivity is 10Base-T/100Base-TX Ethernet—standard enterprise-grade infrastructure, no special switching required.
Environmental & Operational Specifications
The camera is designed for mixed indoor/outdoor deployment. IP66 protection guards against rain, spray, and airborne dust in canopies, eaves, and exterior walls; IK10 mechanical durability makes it appropriate for unsupervised access areas. IR day/night operation supports continuous surveillance regardless of ambient light conditions. Operating temperature range accommodates most climates, though extreme cold or heat should be verified against your specific environment. Powered entirely via PoE switches, the NUE-3703-F02 integrates into enterprise network infrastructure without dedicated electrical circuits, reducing installation cost and complexity in retrofit projects and new-build deployments alike.
When to Choose a Different Model
If you need higher resolution for forensic detail over longer distances, consider a higher-megapixel variant within the Bosch camera lineup. If your site has no PoE infrastructure and running 12VDC power is simpler, look for non-PoE variants. If you require fully autonomous analytics (deep learning-based object detection or license-plate capture) on-board the camera, verify whether this model supports your VMS's analytics extension—the NUE-3703-F02 is a standard capture device and relies on backend VMS intelligence for event rules. For indoor-only deployments in dust-free environments, an indoor-rated dome may reduce cost. Consult a network video recorder selection guide if you're building a multi-camera system and need to size storage and bandwidth correctly.
Frequently Asked Questions
Q: Does the NUE-3703-F02 work with Milestone XProtect or Genetec Security Center?
A: Yes. The camera is ONVIF Profile S/T compatible, so it integrates with any major VMS supporting those standards—Milestone XProtect, Genetec Security Center, Hanwha Smartvue, and most third-party NVRs. Audio codec support may depend on VMS configuration, so confirm your platform's audio input requirements before deployment.
Q: What's the maximum infrared range?
A: The integrated IR is optimized for typical security distances (roughly 20–30 meters depending on scene reflectivity and ambient light). Consult the manufacturer's detailed spec sheet for precise range under your specific conditions. If you need longer IR throw, consider mounting supplemental external illuminators.
Q: Can I wall-mount the NUE-3703-F02, or is it ceiling-only?
A: Dome form factor supports flexible mounting—ceiling, wall, or corner installation. Orientation doesn't affect the camera's optical performance. Mounting hardware and template availability depend on your selected bracket kit; confirm compatibility with the mounting system you choose.
Q: Is the varifocal lens adjustment motorized or manual?
A: The lens is motorized, allowing remote focus and zoom adjustment through the camera's web interface or VMS. This eliminates the need for physical access to the camera after installation if you need to fine-tune coverage.
Q: How much power does the NUE-3703-F02 draw via PoE?
A: The camera draws approximately 12.95W maximum via 802.3af PoE, well within the 15.4W per-port budget of standard PoE injectors and managed switches. This means you can reliably deploy multiple units on a single 60W PoE switch without power starvation.
Q: Does the built-in microphone support two-way audio?
A: The camera includes a built-in microphone for audio input. Two-way audio (microphone + speaker) support depends on your VMS platform and whether you pair it with an external speaker or use the VMS's intercom features. Verify your system's audio I/O capabilities before specifying two-way workflows.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The NUE-3703-F02 is a straightforward pick if you're retrofitting outdoor coverage into an existing PoE infrastructure and want to avoid auxiliary power runs. The 5MP resolution and motorized varifocal lens handle variable coverage areas without requiring multiple SKUs in your spares locker. H.265 support will cut your storage footprint noticeably if your NVR supports it—run the math before you buy if multi-camera 24/7 recording is your baseline.
Technical Highlights:
- Varifocal Motorized Lens: Adjust focal length remotely via VMS or web interface post-installation; no return visits to physically refocus if site conditions shift or coverage area needs fine-tuning.
- H.265 Codec: Storage reduction of 40–60% versus H.264 depending on scene complexity—material savings over 12–36 months of continuous recording on a 50-camera deployment.
- PoE (802.3af) at ~13W: Won't exhaust a standard 60W PoE switch's power budget; you can deploy 4–5 units per switch without worry, simplifying network design in retrofit scenarios.
- IK10 Impact Rating: Handles unsupervised outdoor locations where vandalism or accidental strike risk is real; protects your capex from preventable damage.
Deployment Considerations:
- IR range is optimized for 20–30 meter coverage. If your site requires longer throws, budget for supplemental lighting or accept lower nighttime identification quality.
- Audio input is available, but two-way intercom workflows require VMS support and external speaker hardware—don't assume bidirectional audio just because the mic is built-in.
- Varifocal adjustment is motorized but not autonomous; you must manually set it once during commissioning. No autofocus behavior—focus stays where you set it.
Position the NUE-3703-F02 in mixed-use outdoor deployments—parking structures, building perimeters, warehouse loading docks—where PoE power is already in place, vandalism resistance is important, and forensic-quality 5MP capture is sufficient. It's not the right choice if you need 8MP+ resolution or fully autonomous edge analytics, but it's solid value for standard surveillance at scale.
