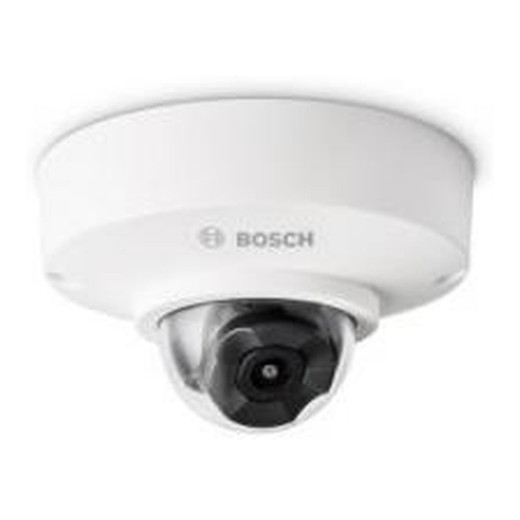

Bosch NUV-3703-F04 5MP Varifocal Indoor Dome Camera
Overview
The Bosch NUV-3703-F04 is a 5MP fixed dome engineered for indoor deployments where focal-length flexibility and physical durability matter equally. Operating on standard PoE (802.3af) power, this varifocal dome delivers H.265, H.264, and MJPEG codec options to adapt to different network and storage constraints. The combination of day/night imaging, IK08 vandal resistance, and compact dome form factor makes it well-suited for IP camera deployments in retail environments, educational facilities, and other high-traffic interiors where post-installation coverage adjustment and impact tolerance are operational requirements. Explore the Bosch camera lineup for additional coverage options.
Key Features
- 5MP Resolution (2560×1920): Captures sufficient detail for forensic review and facial recognition at moderate distances—meaningful in retail loss-prevention and facility access-control applications where scene documentation is primary.
- Varifocal Lens Design: Manual focal-length adjustment post-installation eliminates the need for lens replacement if coverage zones shift or viewing angles require fine-tuning. Reduces hardware SKU overhead and shortens commissioning time, particularly in retrofit scenarios where exact field-of-view cannot be predicted before mount.
- H.265 Compression: Reduces bitrate to approximately 50% of H.264 at equivalent quality—a direct cost lever when storage is bandwidth-constrained or 24/7 local recording is required. H.264 and MJPEG support preserve compatibility with legacy NVR systems and edge-recording devices.
- PoE (802.3af) Power: Single-cable installation means no separate power drops at the camera location. Power draw stays within 13W peak, allowing deployment on standard PoE injectors or PoE-enabled switches without straining power budgets—critical in retrofit jobs where infrastructure is shared.
- Day/Night Imaging with IR: Integrated IR illumination enables continuous operation through lighting transitions. IR range supports extended night coverage, reducing reliance on external lighting and improving 24-hour operational cost.
- Built-in Microphone: Single audio input channel supports two-way communication and ambient sound capture. Useful for incident correlation when video alone is insufficient to establish event context.
- IK08 Vandal Rating: Withstands 5-joule impact (1.6 kg steel ball dropped from 62.5 cm height). Qualifies the unit for high-contact environments—retail floor, school hallways, public transit hubs—where accidental or intentional physical contact is foreseeable.
- Compact Dome Form Factor: Low-profile ceiling or wall-mount design minimizes visual obtrusiveness in customer-facing or educational spaces where camera presence must remain discrete.
Integration & Compatibility
The NUV-3703-F04 operates on ONVIF standards, ensuring integration with ONVIF-certified systems including Milestone XProtect, Genetec Security Center, and other enterprise VMS platforms. Standard PoE power delivery works with any 802.3af-compliant injector or switch port. Varifocal adjustment is manual—no motorized zoom control. The network switch you select must carry the PoE budget for camera count; confirm per-port ratings before deployment.
Deployment Considerations
The varifocal lens makes this model well-suited for facilities where focal length cannot be locked down at specification time—multipurpose retail spaces, education buildings with evolving layouts, or retrofit installations where mount location and viewing distance are confirmed during installation rather than design phase. IK08 durability positions it for interior high-traffic or high-risk areas; skip this model if you need submersion-rated protection (IP67) or outdoor environmental resistance. H.265 compression becomes operationally significant in bandwidth-limited networks or where local storage retention is cost-sensitive. Consult a camera selection guide to confirm varifocal flexibility aligns with your site layout and VMS recording policy.
Frequently Asked Questions
Q: Is the NUV-3703-F04 rated for outdoor use?
A: No. This is an indoor dome camera. The IK08 rating protects against impact but does not provide weatherproofing. For outdoor deployments, consider a higher IP-rated variant in the Bosch dome line.
Q: Does the NUV-3703-F04 support motorized zoom?
A: No. The varifocal lens is manually adjusted during installation. Once mounted and focused, focal length is fixed for that deployment. If dynamic zoom control is required, you will need a motorized zoom or PTZ model.
Q: What VMS platforms are compatible with the NUV-3703-F04?
A: The NUV-3703-F04 supports ONVIF protocols, making it compatible with ONVIF-certified systems such as Milestone XProtect, Genetec Security Center, and many other enterprise platforms. Confirm ONVIF support with your VMS vendor before purchase.
Q: How much power does the NUV-3703-F04 consume?
A: Peak power draw is within 802.3af budget (maximum ~13W). Standard PoE injectors and PoE-enabled network switches will power this camera without special infrastructure.
Q: What compression formats does the NUV-3703-F04 support?
A: H.265, H.264, and MJPEG. H.265 delivers roughly 50% bitrate reduction versus H.264 at equivalent quality, which is beneficial for bandwidth-constrained or long-retention recording scenarios.
Q: Can the NUV-3703-F04 be wall-mounted, or is it ceiling-only?
A: The dome form factor supports both ceiling and wall mounting. Mounting hardware and orientation options depend on the bracket and installation kit used—consult the installation guide for your specific mount type.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
I evaluated the Bosch NUV-3703-F04 during a retail retrofit where store layout and camera sightlines required post-installation adjustment. The varifocal lens proved operationally valuable—technicians could dial in focal length without returning to stock or substituting hardware. The IK08 vandal rating is genuine practical value in high-traffic retail and education settings where a cart or a student climbing near the dome is foreseeable.
Technical Highlights:
- H.265 Compression: Cuts storage footprint roughly in half versus H.264 at equivalent quality. On a 24/7 multi-camera NVR with 30-day retention, this directly reduces storage expansion frequency and cost per gigabyte recorded.
- 5MP Resolution with 2560×1920 capture: Adequate for forensic facial review and merchandise loss-prevention at distances up to 15–20 feet with optimal lighting. Beyond that range, resolution degradation becomes noticeable for identification.
- PoE (802.3af) at ~13W peak draw: Allows dense deployments on standard PoE infrastructure—you can power multiple NUV-3703-F04 units from a single 60W or 95W PoE switch without oversubscription. No separate power infrastructure required at each camera mount.
- Manual varifocal adjustment: No motorized zoom means no electronic drift, no servo control complexity—what you focus during commission is what you get for the camera's lifetime. Simplifies troubleshooting and reduces firmware dependencies.
Deployment Considerations:
- IR range is useful for 24-hour operation but limited compared to larger domes or dedicated IR arrays. In absolute darkness beyond ~15–20 feet, visible light becomes preferable to IR for forensic clarity.
- Manual varifocal means no in-field zoom correction after install. If viewing angles must change post-deployment, you'll return to the mount and refocus—plan your lens position carefully during commissioning.
- The 13W power ceiling is tight if you add features like heaters or external IR boosters. Account for peak consumption before adding power-hungry accessories to the same PoE circuit.
The NUV-3703-F04 is the right pick for retail, school, and commercial interiors where IK08 durability, manual varifocal flexibility, and PoE simplicity outweigh the need for motorized zoom or outdoor-grade environmental ratings. It avoids oversizing infrastructure for single-camera power or VMS capacity, and the H.265 support means you scale recording retention without NVR expansion.
