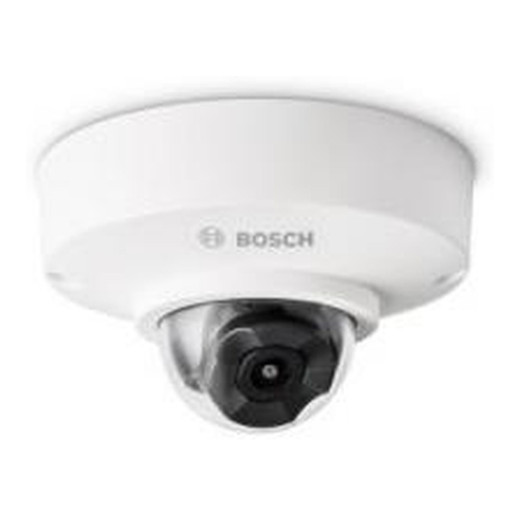

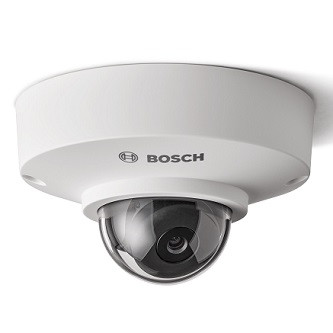

Bosch NUV-3702-F04H 2MP Varifocal Indoor Dome Camera
Overview
The Bosch NUV-3702-F04H is a 2MP varifocal dome camera designed for flexible indoor surveillance where focal length adjustment on installation eliminates the need for multiple fixed-lens SKUs. Powered by single PoE (802.3af), the camera draws under 13W, so it won't strain your network switch's power budget—no separate power supply needed. The NUV-3702-F04H supports H.265, H.264, and MJPEG compression, allowing you to optimize bitrate based on your network constraints and VMS platform. Built-in microphone enables audio capture for two-way communication and incident verification without additional modules.
Key Features
- 2MP (1920×1080) Resolution: Delivers adequate facial detail at typical indoor distances (6–12 feet) and general motion detection at greater ranges—sufficient for entry points, lobbies, corridors, and retail spaces without the bandwidth overhead of 4MP or higher.
- Varifocal Lens (Adjustable Focal Length): Field-of-view flexibility during commissioning means you size one camera model to cover multiple coverage scenarios. Reduces SKU proliferation and installation labor compared to buying multiple fixed-lens variants.
- H.265 Primary Codec: Reduces storage and bandwidth consumption roughly 40–60% compared to H.264 on identical scenes—a meaningful saving when recording 24/7 across dozens of cameras. H.264 and MJPEG fallback ensure compatibility with legacy VMS platforms and edge devices that don't support H.265 yet.
- PoE (802.3af) Power Delivery: Single network cable carries both video and power. No separate 12VDC or AC runs required. Operates within standard enterprise switch budgets (typical PoE switches budget 15.4W per port; this camera draws under 13W max).
- Day/Night IR with Integrated Illumination: Automatic switching between color and monochrome as light levels drop. Built-in IR LED provides usable video in complete darkness—useful for parking structures, loading zones, and perimeter monitoring where supplemental lighting isn't practical.
- IK08 Vandal Rating: Rated for impact protection against deliberate tampering and environmental stress. IK08 qualifies this camera for exposed outdoor mounting, high-traffic public areas, and semi-controlled interior spaces where physical contact is likely.
- Built-in Microphone: Audio input enables event-triggered recording, environmental monitoring, and incident correlation within VMS platforms that support audio capture. No external audio interface required.
- ONVIF Compliance: Integrates with standards-based network video recorders, video management systems, and IP security platforms without proprietary codec or protocol dependencies.
Integration & Compatibility
The NUV-3702-F04H connects to any ONVIF-compliant IP camera management ecosystem—Milestone XProtect, Axis Camera Station, Bosch VMS, and others. Multiple compression codec support (H.265, H.264, MJPEG) prevents transcoding overhead on the NVR; the camera streams its chosen codec directly, reducing CPU load on your recording appliance. PoE power operates within standard enterprise switch budgets, enabling deployment across existing network infrastructure. Microphone audio integrates with VMS recording and event correlation features. Standard ceiling and wall mount points accommodate typical access-point and corridor installations.
Deployment Considerations
The varifocal lens requires field focus adjustment during installation to match your intended coverage area. Budget time for optical focus verification during commissioning, especially in temperature-variable outdoor or unheated spaces where lens focus can drift over seasonal cycles. The 2MP sensor is appropriate for general surveillance and motion detection; if you require tight facial recognition or license-plate capture at distances greater than 15 feet, evaluate higher-megapixel variants in the same Bosch camera line.
The IK08 rating supports exposed outdoor mounting, but verify that your installation environment doesn't require IP67+ submersion protection (IK08 protects against impact but not sustained water immersion). IR range is effective indoors and for nearby exterior coverage; if you need 50m+ IR throw, consider turret or bullet form factors with external IR illuminators.
When to Choose a Different Model
If your deployment requires fixed focal length to simplify alignment and reduce commissioning time, choose a fixed-lens variant in the same Bosch camera family. If you need 4MP or higher resolution for detailed facial recognition or license-plate clarity at distance, upgrade to a higher-megapixel dome within the Bosch line. If you need outdoor operation with IP67 full sealing (e.g. rain-soaked conditions or washdown environments), evaluate an outdoor IP camera rated for full submersion.
Frequently Asked Questions
Q: What is the maximum infrared range on the NUV-3702-F04H?
A: The built-in IR illumination is optimized for indoor and near-perimeter coverage. Exact range depends on scene reflectivity and infrared sensitivity settings, but expect effective usable video in complete darkness up to 20–30 feet in typical indoor conditions. For longer-range nighttime coverage (40m+), consider external IR illuminators or cameras designed for perimeter surveillance.
Q: Does the NUV-3702-F04H work with my existing Milestone XProtect or Axis Camera Station system?
A: Yes. The camera is ONVIF-compliant and supports standard H.265, H.264, and MJPEG codecs. It integrates with any ONVIF-capable VMS platform without special drivers or plugins.
Q: Can I wall-mount the NUV-3702-F04H, or is it ceiling-only?
A: The dome form factor supports both ceiling and wall mounting. Standard mounting brackets accommodate typical indoor installation configurations. Verify bracket compatibility with your wall or ceiling structure and vibration tolerance.
Q: How much power does the NUV-3702-F04H draw, and will it work on a standard PoE switch?
A: Maximum power draw is under 13W via 802.3af PoE. Standard enterprise PoE switches budget 15.4W per port minimum, so this camera will not overload your switch. No supplemental power injector required.
Q: Is the varifocal lens difficult to adjust during installation?
A: Field focusing is a manual lens adjustment (typically a focus ring or adjustment knob) that requires visual verification during commissioning. Plan for 10–15 minutes per camera to dial in focus and confirm coverage. In temperature-variable environments, focus may drift seasonally and require periodic re-verification.
Q: Does the NUV-3702-F04H support two-way audio?
A: Yes. The built-in microphone captures audio for incident verification and environmental monitoring. If your VMS platform supports audio input, you can also integrate a speaker or amplifier for two-way communication (verify your VMS and network audio codec support with your system integrator).
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
The NUV-3702-F04H is a no-frills, spec-sensible choice for indoor environments where you need focal-length flexibility without the complexity (or cost) of motorized zoom. The H.265 codec payoff is real—expect 40–60% storage reduction compared to H.264 on 24/7 recording, which compounds across a multi-camera deployment. PoE draw under 13W means you don't burn switch capacity on this model.
Technical Highlights:
- H.265 Codec: Bitrate reduction of 40–60% versus H.264 translates directly to smaller NVR storage footprints and lower egress bandwidth on bandwidth-constrained networks. H.264 and MJPEG fallbacks prevent VMS compatibility surprises.
- PoE (802.3af) Draw Under 13W: No power-budget conflicts on standard enterprise switches. You can deploy this camera on existing PoE infrastructure without supplemental injectors or recabling.
- Varifocal Lens with Manual Field Adjustment: Eliminates the need to stock multiple fixed-lens SKUs—one model covers wide to medium FOV ranges. Focus verification during commissioning is not expensive, but don't skip it; seasonal thermal drift in unheated spaces can degrade focus over time.
- IK08 Vandal Rating + Day/Night IR: Built-in IR illumination means you don't need external lighting for nighttime corridor, loading zone, or semi-outdoor perimeter coverage. IK08 handles casual vandalism and environmental impacts; don't rely on it for high-abuse public spaces.
Deployment Considerations:
- 2MP is adequate for motion detection and general facial recognition at 6–12 feet; beyond that or for license-plate clarity, you'll want 4MP or higher. Plan your coverage footprints and verify pixel density before committing to this resolution.
- Varifocal lenses require field focus during commissioning. Budget time for optical alignment, and plan periodic re-verification in temperature-variable environments (unheated rooms, outdoor overhangs, etc.) where thermal expansion can shift focus.
- IR range is indoor-optimized; don't expect 50m+ nighttime throw. For deep-perimeter or long-range outdoor coverage, add external IR illuminators or choose a different form factor.
The NUV-3702-F04H is well-suited for retail corridors, office lobbies, access points, and indoor perimeter zones where PoE power availability is a given, and focal flexibility simplifies installation. It's not the choice if you need fixed focus for speed-of-deployment or 4MP+ detail for forensic facial recognition—but for general-purpose indoor surveillance with modern compression and audio, it delivers solid value without overengineering.
