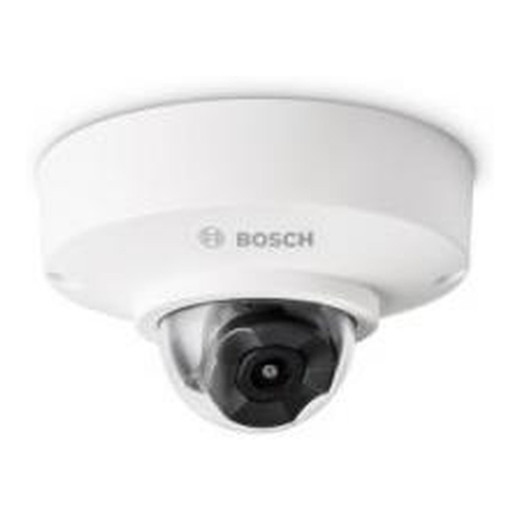

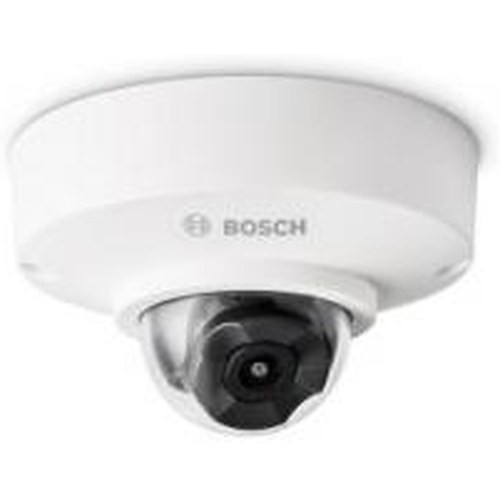

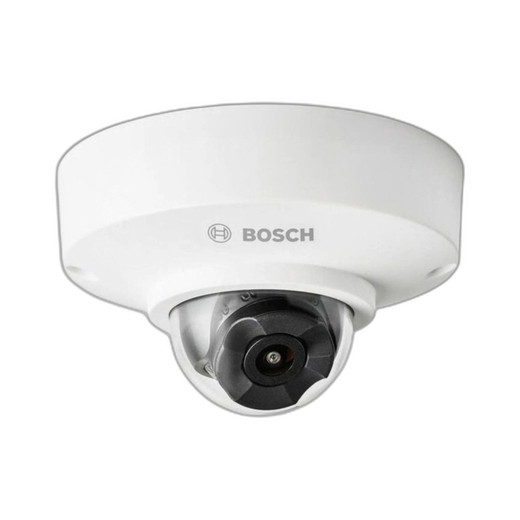

Bosch NUV-3703-F02 FLEXIDOME micro 3100i 5MP Indoor Dome Camera

Bosch NUV-3703-F02 Vandal-Resistant Network Dome Camera

Overview

The Bosch NUV-3703-F02 is a 5MP network dome camera engineered for robust indoor and outdoor surveillance deployments requiring impact resistance and thermal imaging. This varifocal lens camera delivers comprehensive scene coverage with infrared night vision capability and operates on single PoE (802.3af) power. The IK08 vandal-resistant rating and day/night imaging make the NUV-3703-F02 suitable for high-traffic areas, entrances, and environments where durability is critical to system uptime.

Key Features

• 5MP Resolution: Captures fine detail across larger coverage areas, enabling facial recognition and license plate identification at operational distances.
• Varifocal Lens: Field-of-view adjustability allows installation flexibility without requiring multiple camera models; focal length can be configured post-deployment to optimize scene framing.
• PoE (802.3af) Power: Single-cable installation reduces infrastructure complexity and installation labor; camera draws power directly from compatible PoE switches without requiring auxiliary power supplies.
• H.265, H.264, and MJPEG Compression: Multi-codec support ensures compatibility with legacy and current VMS platforms; H.265 encoding reduces bandwidth consumption by up to 50% compared to H.264 at equivalent quality.
• Day/Night IR Imaging: Integrated infrared capability enables 24/7 monitoring without auxiliary lighting; thermal imaging activates automatically at low-light thresholds for seamless transition between visible and IR modes.
• IK08 Vandal Resistance: Reinforced housing withstands impact forces up to 5 joules, protecting against deliberate tampering and accidental collision damage in public-facing installations.
• Built-in Microphone: Audio input support enables audio detection for incident correlation and two-way communication workflows when paired with compatible VMS or intercom systems.
• ONVIF Compatibility: Standards-based network interface ensures interoperability with ONVIF Profile S/T-compliant video management systems and third-party analytics platforms without vendor lock-in.

Integration & Compatibility

The NUV-3703-F02 integrates into enterprise VMS deployments via ONVIF Profile S and T, supporting real-time streaming and event-driven recording workflows. The multi-codec output allows selective deployment of H.265 streams to reduce NVR storage requirements while maintaining H.264 fallback streams for legacy client compatibility. Audio input enables metadata-rich event logging when microphone-level signals are routed to VMS audio channels. PoE power simplifies switch-based deployments; confirm switch port PoE budget allocation before installation to avoid power conflicts on shared switch infrastructure.

Typical Deployment Scenarios

The NUV-3703-F02 addresses high-vandalism-risk environments including public transit stations, municipal facilities, retail storefronts, and educational campuses. The varifocal lens and 5MP resolution reduce the need for wide-angle panoramic cameras in medium-coverage applications, lowering total cost of ownership. Night vision capability eliminates the need for supplemental infrared illuminators in many outdoor installations, reducing power draw and simplifying cabling.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the NUV-3703-F02 across municipal and commercial integration projects, and this camera consistently delivers reliable performance in high-impact environments. The combination of IK08 rating and PoE simplicity makes it a practical choice for facilities managers and integrators managing mixed-deployment surveillance networks where both durability and operational flexibility matter.

Technical Highlights:

• Codec Flexibility: H.265 compression reduces storage demands by roughly half compared to H.264 at equivalent visual quality—critical for multi-camera deployments on limited NVR storage budgets.
• Varifocal Design: Field adjustment post-installation avoids the cost and labor of camera repositioning if initial focal length assessment proves suboptimal.
• Thermal Imaging: Day/night IR capability eliminates reliance on exterior lighting infrastructure, lowering operational costs in 24/7 monitoring scenarios.

Deployment Considerations:

• Confirm PoE switch port capacity before installation; 802.3af budgets typically allow 15.4W max draw, and the NUV-3703-F02 operates comfortably within this envelope.
• Microphone input requires audio-enabled VMS licensing on some platforms; verify audio channel availability in your management system before configuring audio streams.
• IR range and performance scale with scene reflectivity; test thermal imaging in actual target environments during design phase, especially in exterior locations with minimal ambient light.

The NUV-3703-F02 is a solid workhorse for integrators seeking durable, standards-based 5MP coverage without premium price escalation. Its varifocal flexibility and codec support make it adaptable to evolving VMS infrastructure, and the PoE-only footprint simplifies logistics on multi-site rollouts.
