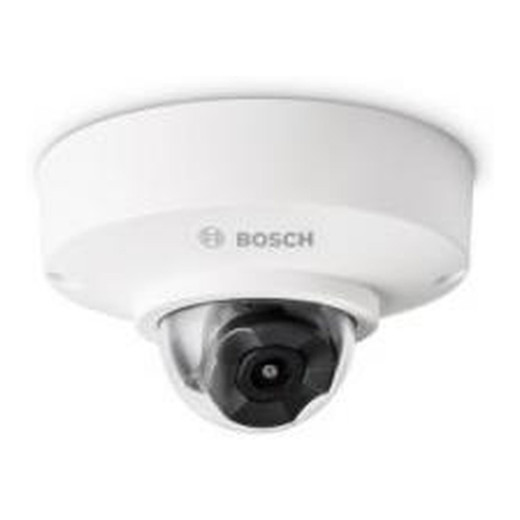

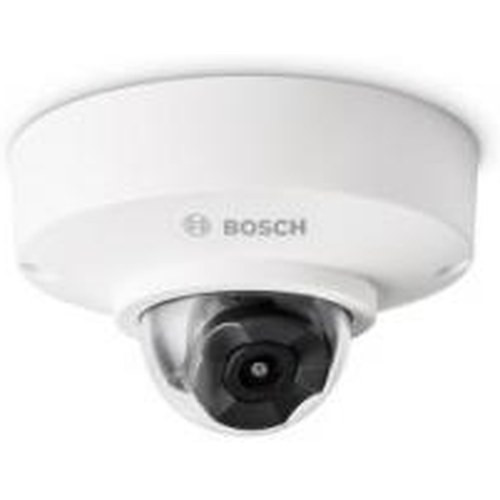

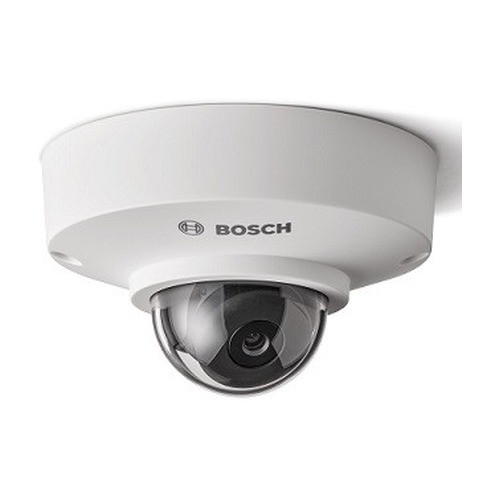

Bosch NUV-3703-F06 FLEXIDOME micro 3100i 5MP Indoor Dome Camera

Bosch NUV-3703-F06 5MP Varifocal Network Dome Camera

Overview

The Bosch NUV-3703-F06 is a compact, vandal-resistant dome camera designed for surveillance deployments requiring variable focal length and 24/7 monitoring. This 5MP camera delivers flexible framing through its varifocal lens, efficient bandwidth management via H.265 compression, and day/night capability with integrated infrared illumination. The NUV-3703-F06 operates on PoE (802.3af) power, eliminating the need for separate power infrastructure at the camera location.

Key Features

• 5MP Resolution: Captures clear detail across wide and medium focal lengths, suitable for corridors, perimeter monitoring, and general surveillance zones.
• Varifocal Lens: Adjustable focal length allows field-of-view customization during installation without requiring multiple camera models.
• H.265 & H.264 Compression: Dual codec support enables efficient storage and bandwidth optimization. H.265 reduces file size by up to 50% compared to H.264 while maintaining quality. MJPEG option available for legacy system compatibility.
• Day/Night Infrared: Integrated IR illumination enables surveillance in complete darkness. Automatic switching between color mode (day) and monochrome mode (night) ensures continuous monitoring without manual intervention.
• IK08 Vandal Resistance: Rugged housing withstands impact and environmental stress, appropriate for accessible mounting locations and high-traffic areas.
• PoE Power (802.3af): Single Ethernet connection supplies both video data and power, simplifying cable runs and reducing installation labor.
• Built-in Microphone: Audio support enables two-way communication and ambient sound capture for enhanced situational awareness.
• Compact Dome Form Factor: Discreet profile reduces visual prominence while providing 360-degree viewing angles in wide mounting positions.

Integration & Compatibility

The NUV-3703-F06 integrates with ONVIF-compliant VMS platforms, NVR systems, and access control ecosystems supporting standard video over IP protocols. H.265 and H.264 codec support ensures compatibility with both modern and legacy recording infrastructure. Audio input via the built-in microphone supports event-triggered recording and synchronized multi-camera installations.

PoE power delivery simplifies integration with standard Gigabit Ethernet switches and PoE injectors. Network administrators should verify switch power budgeting before deployment, as aggregate camera power draw must not exceed available PoE allocation.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've deployed the Bosch NUV-3703-F06 in mixed indoor/outdoor surveillance projects, and the varifocal design consistently reduces the need for redundant fixed-lens models. The IK08 rating provides genuine impact resistance without requiring external housing, which matters for accessible mounting heights and public-facing installations.

Technical Highlights:

• Codec Flexibility: H.265 compression is essential in bandwidth-constrained networks. On a 100 Mbps uplink, the NUV-3703-F06 running H.265 at 5MP can operate comfortably alongside other cameras without network saturation.
• Infrared Performance: Day/night switching is automatic and reliable. The integrated IR ensures usable footage in zero-light conditions without requiring external illumination infrastructure.

Deployment Considerations:

• Verify PoE power availability before specification. 802.3af supplies 15.4W maximum; confirm your switch or injector supports the camera's peak draw.
• Position the varifocal adjustment during commissioning. Once focal length is set, document the lens position to avoid accidental shifts during maintenance.

The NUV-3703-F06 is a reliable choice for integrators prioritizing adaptability and durability. The combination of varifocal flexibility, IK08 vandal resistance, and efficient H.265 compression makes it suitable for education, retail, hospitality, and municipal surveillance deployments.
