Bosch MICRO DOME 5MP HDR 56 6MM - NUV-3703-F06-GOV

Bosch NUV-3703-F06-GOV 5MP Micro Dome Camera – 6mm Fixed Lens, NDAA/TAA Compliant

Overview

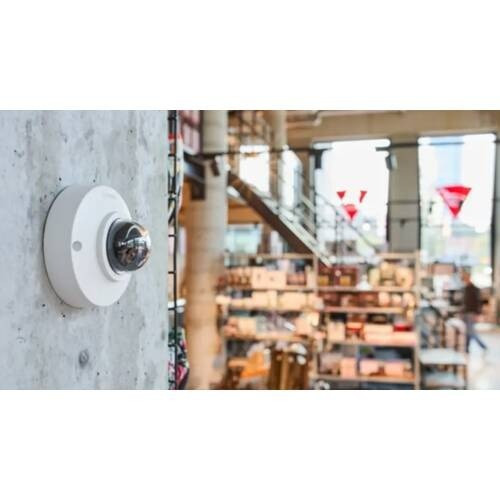

The Bosch NUV-3703-F06-GOV is a 5MP micro dome camera purpose-built for government and enterprise deployments where NDAA Section 889 and TAA compliance are non-negotiable procurement requirements. At 110mm wide and 230g, it mounts flush to ceilings or wall surfaces without calling attention to itself — a meaningful consideration in lobbies, courtrooms, secure corridors, or any environment with aesthetic or code-driven constraints. The 6mm fixed focal length delivers a 56.1° horizontal field of view, which targets medium-width interior zones: individual corridors, elevator lobbies, entry vestibules, and controlled-access hallways where you need face-grade detail rather than panoramic coverage. Explore the full Bosch IP camera lineup to see the broader micro dome and fixed dome family.

Key Features

• 5MP / 2592×1944 Resolution: At roughly 5 megapixels, you get enough pixel density to crop and identify faces at moderate distances without storing 4K streams. The 4:3 native aspect ratio maximizes vertical coverage — useful when subjects are standing at a door or desk rather than moving horizontally across a wide scene.
• 6mm Fixed Lens, F1.9 Aperture: The 56.1° horizontal and 39.2° vertical field of view is calibrated for 10–15ft wide corridors and entry areas. The F1.9 aperture lets in meaningful light at low-lux conditions without requiring supplemental IR, making it viable in dim but not pitch-dark spaces.
• H.265/HEVC Compression: H.265 cuts bandwidth and storage roughly in half versus H.264 at equivalent quality — on a 32- or 64-channel NVR running 24/7, that translates directly into fewer drives or longer retention windows. H.264 is retained for compatibility with legacy VMS recorders that haven't moved to HEVC decoding.
• PoE IEEE 802.3af Class 3, 3.2–4.5W: Drawing under 4.5W peak, this camera operates within standard 802.3af budget allocations with substantial headroom. A 150W PoE switch can realistically power 30+ of these cameras without straining per-port budgets — no PoE+ switch required. See our PoE switch category for compatible infrastructure.
• IK08 Impact Rating: IK08 means the camera housing withstands 5 joules of impact — the equivalent of a 1.7kg mass dropped from 300mm. For a compact dome, that's meaningful vandal resistance in public-access or semi-public areas without requiring a full vandal-dome housing.
• -40°C to 55°C Operating Range: The wide thermal envelope covers everything from unheated server rooms and cold-storage corridors to sun-exposed indoor atriums. Very few micro domes carry a -40°C lower bound — this makes it viable in unheated utility spaces without a heated enclosure.
• Pan 0–355° / Tilt 0–75° / Roll 0–355° Adjustment: Three-axis physical adjustment at install time lets you dial in the field of view without mechanical aiming aids. For ceiling drops at irregular angles or off-axis mounting, this range eliminates most horizon-tilt problems you'd otherwise have to correct in software.
• Local Storage: Up to 2TB via SD/SDXC: Onboard microSD supports SDHC up to 32GB and SDXC up to 2TB. That's a real edge-recording option for network-failover scenarios — if the VMS NVR loses connectivity, the camera continues recording locally. For government deployments with strict continuity-of-operations requirements, this matters. Pair with a compatible Bosch NVR for centralized management.
• ONVIF Profiles S, G, T, M: All four major ONVIF profiles mean this camera integrates with virtually any current-generation ONVIF-conformant VMS without a manufacturer-specific driver. Profile G adds edge storage management; Profile T adds H.265 and metadata; Profile M extends metadata for analytics. You're covered regardless of which VMS platform the end-user is standardized on.
• NDAA/TAA + Full Compliance Stack: The NUV-3703-F06-GOV carries NDAA Section 889 compliance, TAA compliance, plus CE, FCC, UL, WEEE, RCM, VCCI, UKCA, and CMIM certifications. For federal, state, and DoD-adjacent procurement, this is the compliance checklist most program officers require. No additional compliance review burden for the integrator.

Integration & Compatibility

ONVIF Profile S, G, T, and M conformance means the NUV-3703-F06-GOV integrates without proprietary drivers into Milestone XProtect, Genetec Security Center, Avigilon Control Center, Hanwha Wisenet WAVE, and any other ONVIF-conformant platform. Profile T adds H.265 stream negotiation; Profile G enables VMS-driven edge storage management so you can pull recordings off the onboard SD card remotely through the VMS interface. For deployments running Bosch Video Management System (BVMS), native integration unlocks camera-side configuration without leaving the VMS UI. Surface mounting is the native installation method; wall and ceiling junction boxes are separate accessories. Review our camera selection guide for help matching lens focal length to coverage requirements across multi-camera site plans.

Frequently Asked Questions

Q: Is the NUV-3703-F06-GOV NDAA Section 889 compliant?

A: Yes. The NUV-3703-F06-GOV is listed as NDAA and TAA compliant per the manufacturer's compliance certification data. It also carries UL, FCC, CE, RCM, VCCI, UKCA, CMIM, and WEEE certifications.

Q: What PoE standard does the NUV-3703-F06-GOV require?

A: The camera operates on standard IEEE 802.3af (PoE), Class 3, drawing between 3.2W and 4.5W. It does not require 802.3at (PoE+), so it works on any standard PoE switch without special power allocation.

Q: What VMS platforms is the NUV-3703-F06-GOV compatible with?

A: The camera supports ONVIF Profiles S, G, T, and M, making it compatible with any ONVIF-conformant VMS including Milestone XProtect, Genetec Security Center, and Bosch BVMS. Manufacturer-specific integrations may offer additional configuration options beyond the ONVIF baseline.

Q: Does the NUV-3703-F06-GOV support local storage?

A: Yes. The camera includes a microSD card slot supporting SDHC cards up to 32GB and SDXC cards up to 2TB. This enables local edge recording for network-failover or continuity-of-operations scenarios.

Q: What is the field of view for the NUV-3703-F06-GOV?

A: With the 6mm fixed focal length lens, the camera delivers a 56.1° horizontal and 39.2° vertical field of view. This is best suited for medium-width corridors, entry vestibules, and controlled-access hallways rather than wide open spaces.

Q: Can the NUV-3703-F06-GOV be used in cold-storage or unheated environments?

A: Yes. The operating temperature range is -40°C to 55°C (-40°F to 131°F), which covers unheated utility spaces and cold-storage corridors without requiring a separate heated enclosure.

Karl Wilson

The NUV-3703-F06-GOV sits in a narrow category: a sub-5W, sub-250g micro dome that legitimately qualifies for NDAA and TAA procurement without forcing a trade-off on image quality. The 5MP 2592×1944 native resolution at 4:3 aspect ratio is the spec I'd highlight to a program manager — you're getting more vertical pixel coverage than a 16:9 sensor of similar resolution, which matters for capturing faces and badges at doorways rather than just tracking horizontal movement across a corridor.

Technical Highlights:

• F1.9 Aperture at 6mm: For a fixed-lens micro dome, F1.9 is notably fast — it pulls in roughly 60% more light than an F2.4 equivalent, which is the difference between a usable image and a degraded one in dim but not pitch-dark corridors without supplemental IR.
• IK08 at 110mm Diameter: Most cameras this small carry IK06 or no IK rating at all. IK08 at 5 joules means it can take a direct hit from a standard office item without compromising the housing — relevant for semi-public government facilities where you can't afford camera downtime.
• 3.2–4.5W 802.3af Class 3: The actual measured draw matters for multi-camera switch budgets. At 4.5W peak, a 30-port 150W PoE switch powers 33 of these cameras at maximum load — the math works cleanly for large government floor deployments where you're daisy-chaining VLANs across 48-port switches.

Deployment Considerations:

• The 6mm fixed focal length is not adjustable — measure your corridor width and camera mounting height before committing. At a standard 9ft ceiling height, the 56.1° HFOV covers roughly 9–10ft at floor level, which is right for single corridors but insufficient for open offices or lobbies requiring wider coverage without camera overlap.
• No IP weather rating is listed in the evidence — this is an indoor-only camera despite the wide thermal range. Do not specify it for outdoor or semi-outdoor installations without verifying enclosure requirements separately.

The NUV-3703-F06-GOV is the right call for multi-floor federal office or courthouse installations where every camera on the procurement list needs to pass NDAA/TAA review and the project budget is PoE-switch-constrained. The 4.5W ceiling and ONVIF Profile G support make it straightforward to deploy at scale on standard 802.3af infrastructure with edge-recording failover enabled at the VMS level.
