Bosch MICRO DOME 5MP HDR 56 6MM IP66 IK10 - NUE-3703-F06-GOV

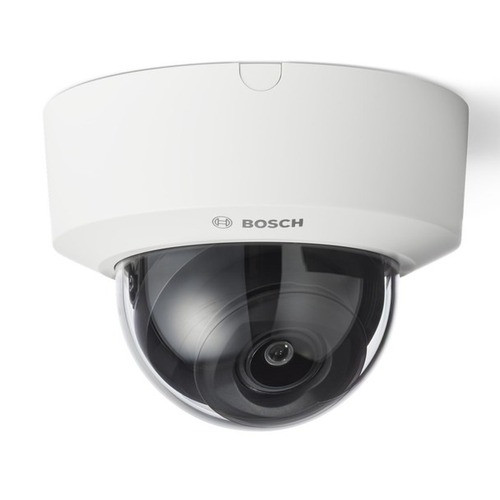

Bosch NUE-3703-F06-GOV 5MP HDR Micro Dome Camera

Overview

The Bosch NUE-3703-F06-GOV is a 5MP outdoor-rated micro dome built for government, education, and commercial deployments where compact form factor, impact resistance, and regulatory compliance are non-negotiable. At 123mm x 69.2mm and 480g, it mounts discreetly on ceilings and soffits without drawing attention — yet the IK10 vandal rating means it can take a serious hit without giving up the scene. NDAA Section 889 and TAA compliance make it a direct procurement path for federal and state agency projects. The 6mm fixed lens delivers a 56.1° horizontal field of view, squarely positioned for corridor monitoring, lobby coverage, and interior perimeter zones at mid-range distances. Explore the full Bosch surveillance line for dome, bullet, and PTZ variants across the same platform.

Key Features

• 5MP Resolution at 30 fps: At full 5-megapixel output, you're capturing enough pixel density to crop and digitally zoom in post-incident without losing evidentiary detail — meaningful in lobbies or intersections where subject distance varies.
• 120dB Wide Dynamic Range: A 120dB dynamic range handles scenes with simultaneous deep shadow and bright exterior light — glass-front lobbies, entryways, and perimeter doors with direct sun exposure — without blowing out the bright zone or losing the dark zone. This is the spec that keeps faces readable at a backlit entrance.
• IP66 Ingress Protection: IP66 seals the optics and electronics against driving rain and high-pressure wash-down. Suitable for covered exterior mounting — loading docks, building overhangs, covered walkways — without requiring an additional housing.
• IK10 Vandal Resistance: IK10 is the highest impact rating in the IEC standard, rated for a 20-joule strike. In practice, this means the dome can withstand deliberate blunt-force attacks that would crack or dislodge a standard dome — relevant anywhere the camera is within physical reach of occupants.
• H.265/HEVC Compression: H.265 cuts bitrate requirements roughly in half compared to H.264 at equivalent quality — on a 24/7 five-megapixel stream, that difference compounds fast across multi-channel NVR storage. Configure your network video recorder to take full advantage of the codec savings.
• PoE 802.3af at 3.2–4.5W: Drawing 3.2–4.5W, this camera sits well within 802.3af's 15.4W budget — one of the more power-efficient 5MP domes in the outdoor IP camera category. It won't strain a midrange PoE switch budget, and no separate power injector or power supply is required. Review your PoE switch allocation before deploying at scale.
• -30°C to 50°C Operating Range: The temperature envelope covers harsh winter installations without a heater accessory — down to -30°C (-22°F), this unit stays operational where many standard outdoor domes require supplemental heating. Upper bound of 50°C handles rooftop and attic-adjacent mounting in warm climates.
• ONVIF Profile S, G, M, T: Four ONVIF profiles mean this camera integrates cleanly with the broad ecosystem of VMS platforms — Profile G covers on-camera recording, Profile T covers H.265 and metadata streaming, Profile M covers analytics metadata. You're not locked into a proprietary NVR ecosystem.
• AES 256 / TLS 1.2 Encryption + PKI x.509: Enterprise-grade encryption with certificate-based authentication means this camera fits inside a zero-trust network architecture. TLS 1.2 secures the management channel; AES 256 protects the video stream. Relevant for any deployment subject to cybersecurity audits or FedRAMP-adjacent requirements.
• 2TB Internal Storage: On-camera storage up to 2TB provides resilient edge recording — footage survives a network outage or upstream NVR failure without a gap in the timeline. Useful as primary storage in bandwidth-constrained sites or as a redundant layer in high-security deployments.
• Pan 0–355° / Tilt 0–75° / Roll 0–355° Adjustment: Wide installation adjustment ranges let you wall-mount or ceiling-mount and still dial in the exact scene framing — the 355° pan and roll mean you're not fighting the mount orientation to center the field of view.
• NDAA & TAA Compliant: The NUE-3703-F06-GOV carries both NDAA Section 889 and TAA compliance — confirmed in the regulatory certification list alongside CE, FCC, UL, and others. This clears federal procurement and GSA schedule requirements without a waiver process.

Integration & Compatibility

ONVIF conformance across Profiles S, G, M, and T provides broad VMS compatibility — Milestone, Genetec, Hanwha Wisenet WAVE, and most enterprise platforms support these profiles natively. IPv4/IPv6 dual-stack networking, SNMP monitoring, and HTTPS management fit cleanly into enterprise IT infrastructure. The CVBS analog output (1.0 Vp-p / 75 ohm) provides a legacy monitoring path if needed. Encryption via TLS 1.2 and AES 256 with PKI x.509 certificate support aligns with government network security requirements. The 10/100BASE-T Ethernet interface is standard — verify your switch port supports 802.3af if you're running the camera at maximum load.

Frequently Asked Questions

Q: Is the Bosch NUE-3703-F06-GOV NDAA Section 889 compliant?

A: Yes. The NUE-3703-F06-GOV is listed as NDAA-compliant in its regulatory certification set, alongside TAA compliance, making it eligible for federal and state government procurement.

Q: What PoE standard does the NUE-3703-F06-GOV require?

A: The camera supports both IEEE 802.3af and 802.3at PoE, drawing between 3.2W and 4.5W. Standard 802.3af is sufficient — no PoE+ switch is required, though 802.3at is also accepted.

Q: What is the minimum illumination for the NUE-3703-F06-GOV?

A: The camera's color sensitivity is rated at 0.15 lux, indicating usable color imaging in low-light environments such as dimly lit corridors or parking structures with minimal ambient lighting.

Q: Does the NUE-3703-F06-GOV support on-camera recording?

A: Yes. The camera supports internal storage up to 2TB and is ONVIF Profile G conformant, which covers on-camera edge recording — useful as a redundant recording layer or for sites with limited network bandwidth to a central NVR.

Q: What VMS platforms is the NUE-3703-F06-GOV compatible with?

A: The camera conforms to ONVIF Profiles S, G, M, and T, providing compatibility with the broad range of enterprise VMS platforms that support these profiles, including Milestone XProtect, Genetec Security Center, and others. Specific integration should be verified with your VMS vendor's compatibility list.

Q: Can the NUE-3703-F06-GOV be used outdoors?

A: Yes. The camera carries an IP66 rating for dust and rain protection, an IK10 vandal resistance rating, and an operating temperature range of -30°C to 50°C, making it suitable for covered exterior and exposed outdoor installations in most climates.

Jerry Tildsen

The NUE-3703-F06-GOV is the model I reach for when a government integrator needs a compact 5MP dome that ships NDAA and TAA-clean out of the box and doesn't require a heated housing even in a northern climate — that -30°C lower operating limit covers the majority of continental US outdoor installations without any supplemental heating hardware, which is a real cost and reliability factor on multi-camera exterior deployments.

Technical Highlights:

• 120dB Dynamic Range: At 120dB, this camera handles the hardest lighting scenarios in government and institutional buildings — glass lobbies, security checkpoints with mixed indoor/outdoor exposure — without requiring manual WDR tuning per-camera. That's meaningful at scale across a multi-building campus deployment.
• 3.2–4.5W PoE Draw: For a 5MP dome, that power envelope is notably lean. On a 24-port 802.3af switch with a 185W budget, you can run 40+ of these cameras without exceeding the switch's power ceiling — a real advantage when designing large-scale government facility installations on existing network infrastructure.
• AES 256 + TLS 1.2 + PKI x.509: Certificate-based authentication and AES 256 stream encryption give this camera a credible answer to a cybersecurity audit. It's not just NDAA hardware compliance — the encryption stack holds up under a zero-trust network architecture review, which is increasingly a procurement requirement at the federal level.

Deployment Considerations:

• The 6mm fixed lens gives you a 56.1° horizontal field of view — well suited for corridors, single-door coverage, and focused interior zones, but not the right call for wide open spaces like gymnasiums or large atriums where you'd want a wider angle or a multi-sensor unit.
• The 10/100BASE-T Ethernet interface is the one spec to watch on new infrastructure builds — gigabit switch ports are standard today, but the camera will negotiate to 100Mbps. Not a throughput problem at this bitrate, but worth noting if your switch configuration has per-port speed enforcement policies.

This camera is the right fit for federal building access control chokepoints, secured corridor surveillance in courthouses or government campuses, and any multi-site deployment where the procurement team needs NDAA and TAA documentation without a lengthy exception process. The NUE-3703-F06-GOV (often searched as NUE 3703 F06 GOV) delivers the compliance stack and environmental ratings that government and education projects require in a form factor that doesn't dictate a specific mounting solution.
