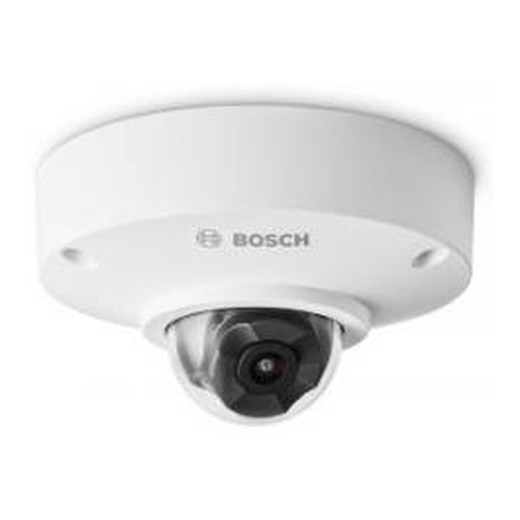

Bosch NUE-3703-F04 5MP Varifocal Dome Network Camera

Overview

The Bosch NUE-3703-F04 is a compact dome network camera engineered for secure surveillance in demanding indoor and outdoor environments. This 5MP camera combines PoE power efficiency with rugged construction to deliver reliable day/night monitoring across distributed security deployments. The varifocal lens design and H.265 compression support flexible field-of-view configuration while minimizing bandwidth consumption across your network infrastructure.

Key Features

• 5MP Resolution: Captures detailed video at 2592 × 1944 pixel resolution for forensic-grade image quality in standard lighting and low-light conditions
• Varifocal Lens: Adjustable focal length enables field technicians to customize the viewing angle during installation without requiring lens replacement
• PoE Power (802.3af): Single Ethernet connection delivers both power and data, reducing installation complexity and cable infrastructure requirements
• IP66 Rating: Sealed construction protects against water jets and dust ingress, supporting outdoor mounting in rain, wash-down, and coastal environments
• IK10 Vandal Resistance: Reinforced dome housing withstands impacts up to 20 joules, meeting the security requirements for accessible mounting locations in public spaces and transit facilities
• Day/Night Infrared: Integrated IR illumination enables continuous monitoring through darkness without external lighting, with automatic switching based on ambient light detection
• Multi-Codec Support: H.265, H.264, and MJPEG compression options optimize for bandwidth constraints, storage efficiency, and VMS compatibility across legacy and modern platforms
• Built-in Microphone: Audio capture enables two-way communication workflows and on-scene event correlation during incident investigation

Technical Specifications

The NUE-3703-F04 operates on PoE (802.3af) power, eliminating the need for dedicated 24VAC or 12VDC supplies at the camera location. Video output supports H.265 primary compression for bandwidth-constrained networks, with H.264 and MJPEG fallback for interoperability. The camera's 5MP sensor captures full resolution at standard frame rates suitable for continuous recording and motion-triggered retention workflows. Infrared illumination provides extended range day/night capability without requiring external IR spotlights. The varifocal lens allows focal length adjustment post-installation, reducing the need for return visits during commissioning.

Durability ratings reflect deployment in challenging environments: IP66 sealing protects against external moisture and particulate contamination, while IK10 rating indicates the housing can absorb direct physical impact without structural failure. These ratings position the NUE-3703-F04 for use in outdoor perimeter surveillance, vehicle inspection lanes, dock areas, and indoor high-traffic security checkpoints where both environmental exposure and human contact are likely.

Integration & Compatibility

The camera supports standard ONVIF protocols for seamless integration with third-party Video Management Systems (VMS) platforms commonly deployed across enterprise security networks. Ethernet connectivity via PoE simplifies deployment to existing network infrastructure without requiring separate power conditioning equipment. Audio input enables real-time monitoring and post-event investigation workflows in applications requiring environmental sound correlation with video events.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Bosch NUE-3703-F04 during several perimeter and outdoor access point deployments. This camera balances compact form factor with the durability specs needed for vandal-prone environments. The varifocal lens and PoE simplicity make field commissioning straightforward, and the IK10 rating gives confidence in high-traffic locations.

Technical Highlights:

• Compression Flexibility: H.265 codec significantly reduces storage and bandwidth requirements compared to H.264, while H.264 and MJPEG options ensure backward compatibility with legacy VMS deployments
• Vandal-Resistant Design: The IK10 rating means you can mount this camera in accessible areas without protective cages, reducing installation cost and improving sightlines
• Weather Sealing: IP66 protection supports outdoor installation in rain and wash-down environments where competing fixed-dome models would require enclosures

Deployment Considerations:

• Plan IR illumination range expectations: the Day/Night capability supports low-light operation, but outdoor scenes with distant targets may still benefit from supplemental lighting for forensic-grade recognition
• Verify your network switch PoE budget before deploying multiple NUE-3703-F04 units; confirm 802.3af availability across your distribution and confirm no PoE+ requirement

The NUE-3703-F04 is well-suited for operations requiring a compact, durable outdoor camera without PTZ complexity. The combination of vandal resistance and IP66 sealing makes it a dependable choice for perimeter, parking, and facility access applications.
