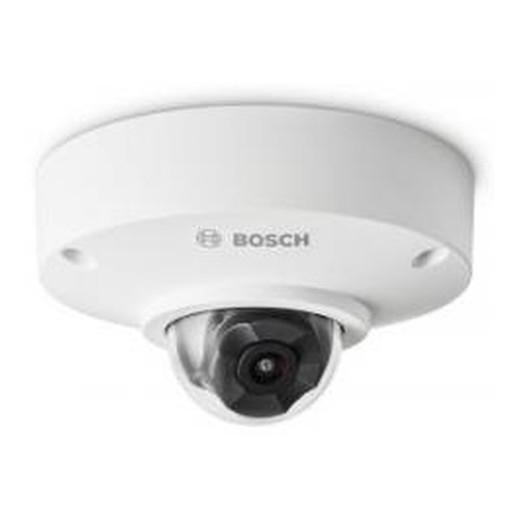

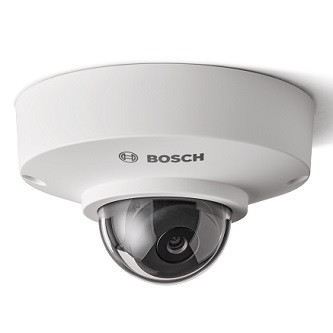

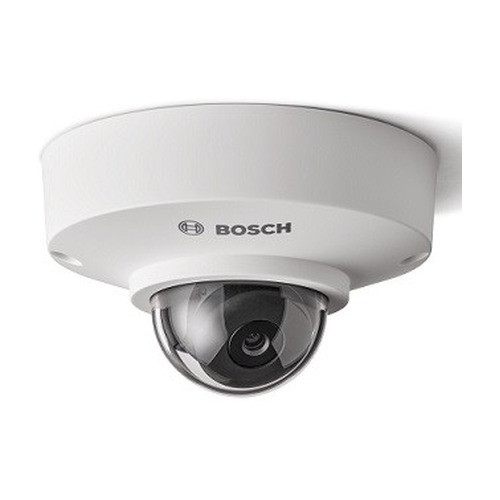

Bosch NUE-3702-F04 FLEXIDOME micro 3100i 2MP Outdoor Dome Camera

Bosch NUE-3702-F04 Network Dome Camera

The Bosch NUE-3702-F04 is a compact 2MP network dome camera engineered for mixed indoor/outdoor surveillance environments requiring weatherproof construction and vandal resistance. Built on the FLEXIDOME micro 3100i platform, this camera delivers HD video capture with varifocal lens flexibility, integrated infrared illumination, and multiple compression formats to balance bandwidth and image quality across diverse network infrastructures.

Overview

The NUE-3702-F04 combines fixed dome form factor with varifocal optics, allowing field adjustability for focal length optimization without camera replacement. The camera operates on standard Power over Ethernet (PoE, 802.3af), eliminating dedicated power runs and simplifying installation in retrofit and new construction scenarios. Full day/night capability with integrated IR delivers consistent performance across low-light and nighttime conditions.

Key Features

• 2MP Resolution: Captures 1920 × 1080 video suitable for perimeter monitoring, entry/exit points, and mid-range coverage applications
• Varifocal Lens: Field-adjustable focal length enables precise framing for specific deployment angles without requiring lens swaps
• Day/Night IR: Integrated infrared illumination and mechanical IR cut filter enable seamless operation across full 24-hour cycles with automatic low-light switching
• IP66 Weatherproof Rating: Sealed against high-pressure water jets and dust ingress, suitable for outdoor mounting and exposed installations
• IK10 Vandal Resistance: Hardened dome housing withstands impact up to 20 joules, exceeding typical tamper-resistant requirements for public-facing deployments
• Multiple Compression Codecs: Supports H.265, H.264, and MJPEG encoding, enabling bandwidth optimization and multi-platform codec compatibility across legacy and modern VMS infrastructure
• PoE Powered: 802.3af compliance eliminates separate 12V power supplies, reducing cabling and power distribution complexity
• Built-in Microphone: Audio capture capability supports audio verification and two-way communication workflows without external audio modules
• Compact Dome Form Factor: Low-profile housing minimizes visual intrusion while providing 360-degree environmental viewing capability

Integration and Deployment

The NUE-3702-F04 integrates with Bosch Video Security Center (BVSC) and third-party ONVIF-compatible VMS platforms, supporting broad ecosystem compatibility. The camera's PoE power model reduces total cost of ownership by consolidating power and network on single-run Cat5e/Cat6 cabling. H.265 codec support ensures efficient storage utilization on NAS and DVR/NVR systems with bandwidth constraints. Audio support via built-in microphone enables integrated audio event recording and verification without separate conduit runs for analog audio.

Deployment in parking structures, building entrances, loading docks, and outdoor perimeter zones leverages the IP66/IK10 durability ratings. Fixed dome mounting simplifies sightline planning while varifocal adjustment post-installation reduces field service callbacks. Day/night IR operation delivers consistent facial recognition and license plate capture across operational hours without supplemental lighting infrastructure.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Bosch NUE-3702-F04 during planning phases for several mixed-use properties, and it occupies a practical middle ground in the compact IP dome category. The varifocal lens eliminates field service trips for focal length adjustments, and the IP66/IK10 ratings handle real-world weather and tampering pressures without overspecifying beyond requirement. The model number NUE-3702-F04 corresponds to the micro 3100i platform, which has proven reliable in outdoor perimeter and entry-point deployments over multiple seasons.

Technical Highlights:

• Varifocal Optics: Post-installation focal length adjustment reduces truck rolls and installation planning overhead compared to fixed-lens alternatives
• Codec Flexibility: H.265 primary encoding with H.264 and MJPEG fallback ensures compatibility across legacy DVR systems and modern NVR platforms without transcoding penalties
• Full Day/Night: Integrated IR with mechanical filter switches automatically; no external IR arrays or lighting infrastructure required

Deployment Considerations:

• PoE 802.3af power draw is modest; verify switch port availability for high-density deployments to avoid midspan injector proliferation
• IP66 rating handles outdoor environmental exposure, but long-term UV exposure on plastic dome lens may require periodic cleaning to maintain image clarity in high-dust environments
• Audio capture via built-in microphone is useful for verification workflows but sensitive to wind noise on exposed mounting locations; consider windscreen accessories for perimeter installations

The NUE-3702-F04 delivers solid 2MP HD performance with practical durability and codec support suited to small-to-mid-scale multi-site deployments. Integration with Bosch ecosystem platforms and ONVIF compliance keeps options open for mixed-vendor environments. It's a workhorse camera that doesn't over-promise on analytics or sensor performance but performs reliably in its intended weatherproof dome application class.
