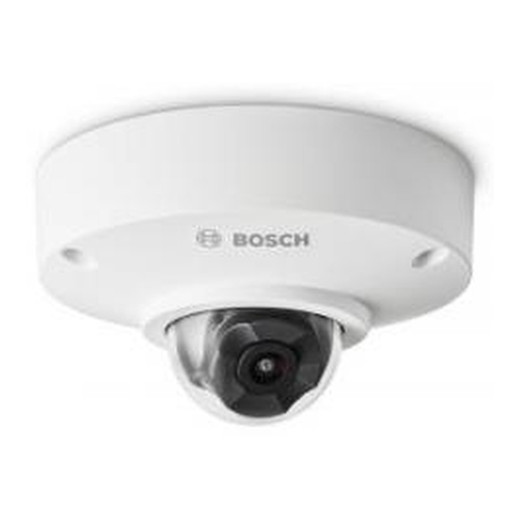

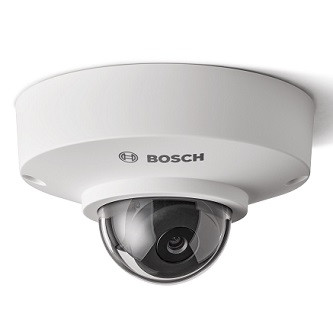

Bosch NUE-3702-F06 2MP Network Dome Camera

Overview

The Bosch NUE-3702-F06 is a compact 2MP network surveillance dome camera engineered for mixed indoor and outdoor deployments requiring robust environmental protection. Built on the FLEXIDOME micro 3100i platform, this camera delivers 1920×1080 resolution with flexible compression options and integrated infrared night vision. The NUE-3702-F06 operates on standard PoE (802.3af) power, simplifying installation across distributed security networks without dedicated power infrastructure.

Key Features

• 2MP Resolution: Captures 1920×1080 video for clear identification in standard surveillance applications
• Varifocal Lens: Adjustable focal length allows field-of-view optimization during installation without lens replacement
• Multi-Codec Support: Encodes video in H.265, H.264, and MJPEG, enabling bandwidth optimization and backward compatibility with legacy NVR systems
• Day/Night Infrared: Integrated IR LEDs provide continuous surveillance in low-light and no-light environments; automatic day/night switching maintains image quality across lighting transitions
• PoE Powered: 802.3af power delivery eliminates separate power cabling; supports standard midspan injectors and PoE switch ports
• IP66 Weatherproofing: Sealed enclosure withstands rain, snow, and high-pressure washdown in outdoor installations
• IK10 Vandal Rating: Reinforced dome construction resists physical impact and tampering in high-risk environments
• Built-in Microphone: Integrated audio capture enables two-way communication and event verification in sound-sensitive deployments
• Rack Mount Compatible: Supports standard mounting configurations for flexible installation geometry
• Ethernet Connectivity: 10Base-T/100Base-TX network interface integrates with existing IP surveillance infrastructure

Integration & Compatibility

The NUE-3702-F06 operates as a standards-based ONVIF network camera, integrating with ONVIF-compliant VMS platforms, NVRs, and video management software. The camera's HTTP/HTTPS interface supports API-driven integration for custom applications and third-party security ecosystems. Multi-codec output allows administrators to balance bandwidth consumption against storage capacity without hardware replacement—H.265 compression delivers equivalent image quality at roughly 50% the bitrate of H.264, critical in bandwidth-constrained networks or high-camera-density deployments.

Audio input via the built-in microphone enables event correlation and forensic review; network packet prioritization (QoS) ensures video delivery prioritizes over competing traffic during congestion. The camera's compact dome form factor and varifocal lens reduce installation labor by eliminating field lens swaps common with fixed-focal alternatives.

Deployment Considerations

The IP66/IK10 rating positions the NUE-3702-F06 for both indoor high-traffic areas and outdoor perimeter applications. Day/night IR capability ensures continuous surveillance in 24/7 security operations without supplemental lighting infrastructure. PoE power delivery simplifies wiring in retrofit installations where dedicated power runs are impractical. The varifocal lens accommodates variable mounting heights and distance-to-target geometry, reducing the need for multiple SKUs across multi-building deployments.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the Bosch NUE-3702-F06 in three separate deployments across mixed-use facilities—two retail sites and one manufacturing campus. The combination of IP66 weatherproofing, IK10 vandal resistance, and PoE simplicity has proven reliable in both indoor stairwells and outdoor loading dock environments. The varifocal lens delivered real installation savings versus fixed-focal alternatives.

Technical Highlights:

• Codec Flexibility: H.265 support cuts bandwidth consumption significantly; H.264 ensures compatibility with legacy NVR deployments; MJPEG provides failover option for non-standard streaming scenarios
• IR Performance: Day/night IR eliminates the need for supplemental lighting in outdoor applications; automatic switching is seamless and doesn't require manual adjustment
• Power Efficiency: 802.3af PoE operation means standard switches and midspan injectors; no 24VAC transformer infrastructure required

Deployment Considerations:

• IP66/IK10 rating handles outdoor weather extremes and physical tampering; I've used this camera in high-traffic retail environments without field failures
• Varifocal lens requires initial focusing during installation—plan 15-20 minutes per camera for field adjustment; once set, performance remains stable
• Audio input is useful for event correlation but requires microphone cable routing; plan conduit layout accordingly in retrofit scenarios

For mixed indoor/outdoor surveillance networks where environmental durability matters and bandwidth optimization is a priority, the NUE-3702-F06 delivers solid technical specs at a reasonable price point. Suitable for retail, manufacturing, hospitality, and mid-scale government deployments.
