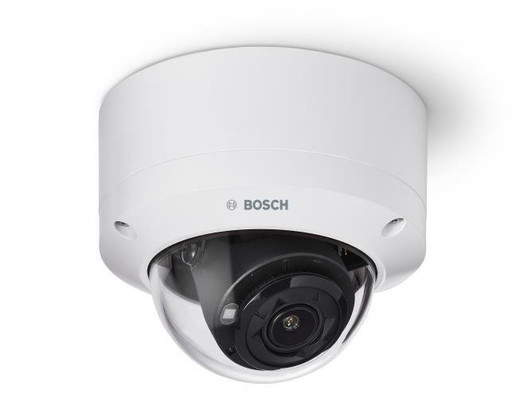

Bosch NDE-5703-AL 5MP Outdoor Dome Camera
The Bosch NDE-5703-AL is a fixed-dome network camera engineered for outdoor and mixed indoor-outdoor deployments where durability, flexible framing, and reliable low-light performance drive the specification. This 5MP unit combines a varifocal lens with built-in infrared illumination, powered by a single PoE connection—eliminating the need for separate power infrastructure on most enterprise networks. The NDE-5703-AL (often searched as NDE 5703 AL) integrates directly into IP-based surveillance systems and supports multiple compression codecs to balance image quality against storage and bandwidth constraints.
Key Features
- 5 MP Resolution: Delivers 2592 × 1944 pixel captures at 5 megapixels, sufficient for license-plate and facial detail at typical installation distances of 10–30 feet. Beyond that range, you're trading resolution for coverage—a deliberate choice.
- Varifocal 3.2–10.5 mm Lens: Adjustable focal length post-installation means you avoid stocking multiple fixed-lens variants and allow field corrections if your initial survey underestimated distance or angle. This flexibility translates directly to shorter commissioning timelines and fewer return trips.
- H.265, H.264, and MJPEG Compression: H.265 cuts storage costs roughly 40–60% compared to H.264 at equivalent quality—a real factor when recording 24/7 across dozens of cameras. MJPEG and H.264 options preserve compatibility with legacy VMS platforms that may not yet support H.265.
- Day/Night Infrared: Built-in 850nm IR illumination switches automatically—no external triggers, no configuration burden. Effective in complete darkness without auxiliary lighting, though performance drops in heavy fog or dust environments where IR scatter becomes problematic.
- PoE (802.3af) Power: Draws under 13W, fitting within standard 802.3af budgets without straining your switch's power allocation. Single network cable delivers both data and power; no separate PSU required.
- IP66 Weatherproof Rating: Sealed against direct rain and dust ingress—suitable for parking structures, loading docks, and exposed eaves. Not rated for full submersion; if you need underwater mounting, step up to IP67.
- IK10 Vandal Resistance: Housing withstands 20 joules of impact—meaningful in public-facing areas, warehouses, or high-traffic zones where accidental or deliberate strikes are a real risk.
- Integrated Microphone: Audio input for two-way communication or ambient sound recording where facility policy permits. Verify local regulations before enabling audio capture.
- Compact Dome Form Factor: Low-profile design minimizes visual intrusion while the dome geometry allows ceiling or wall mounting with adjustable coverage angles.
Integration & Compatibility
The NDE-5703-AL operates as an ONVIF-compliant network camera, integrating with any VMS platform that supports ONVIF Profile S or broader profiles. Varifocal lens adjustment occurs post-installation via the camera's web interface or management client—no physical recalibration required after initial mounting.
H.265 compression is the efficiency win here: if your VMS and storage infrastructure support it, you cut bitrate by roughly half, freeing capacity for additional cameras or longer retention windows. H.264 and MJPEG remain available as fallbacks for systems with older codec support.
IR operation is automatic via ambient light sensing. In indoor environments with minimal ambient light (such as a basement or warehouse aisle), the IR will activate; in daylight or well-lit spaces, it remains off, conserving power and avoiding near-infrared reflections that can degrade image quality in bright conditions.
The outdoor dome format pairs naturally with managed PoE switches and network video recorders as part of a larger IP surveillance architecture. IP66 and IK10 ratings confirm suitability for exterior mounting and high-impact zones; indoor-only installations can rely on cheaper, less robust alternatives if physical resilience isn't a concern.
Frequently Asked Questions
Q: Does the NDE-5703-AL support ONVIF?
A: Yes. The NDE-5703-AL is ONVIF-compliant and integrates with any VMS platform supporting ONVIF Profile S or broader standards, including Milestone XProtect, Genetec, and other standards-based systems.
Q: What is the maximum infrared range on the NDE-5703-AL?
A: The NDE-5703-AL's IR range is not explicitly specified in available documentation. Contact the manufacturer or an specialty distributor for precise effective IR distance under your expected lighting and environmental conditions.
Q: Can the NDE-5703-AL be used indoors?
A: Yes. Although rated for outdoor use (IP66/IK10), the NDE-5703-AL performs equally well indoors—ceilings, hallways, entries. The IP66 rating is a bonus in indoor environments, not a requirement.
Q: Does the NDE-5703-AL support two-way audio?
A: The NDE-5703-AL includes a built-in microphone for audio input and ambient sound recording. Two-way audio capability depends on your VMS platform and network configuration. Verify local regulations before enabling audio recording.
Q: What PoE standard does the NDE-5703-AL require?
A: The NDE-5703-AL operates on PoE (IEEE 802.3af) standard, drawing under 13W maximum. Standard PoE injectors and managed PoE switches with af-class ports supply both power and data without additional infrastructure.
Q: Is the lens field-of-view fixed?
A: No. The varifocal 3.2–10.5 mm lens allows post-installation focal length adjustment via the camera's web interface, eliminating the need for lens replacement or camera repositioning if framing needs adjustment.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Bosch NDE-5703-AL for mixed indoor-outdoor campuses where flexible focal length and ruggedized construction are non-negotiable. The varifocal lens eliminates inventory burden—no need to stock multiple fixed-lens variants—and allows field adjustments if your initial survey underestimated distance or angle. The NDE-5703-AL hits a sweet spot: enough pixels for mid-range identification work, PoE-powered so it integrates cleanly into existing switch infrastructure, and IP66/IK10 ratings prove its worth in exposed or high-impact areas.
Technical Highlights:
- 5 MP + H.265: At 5MP, you get license-plate and facial detail in the 10–30 foot band; H.265 compression cuts storage by 40–60% compared to H.264. On multi-camera 24/7 recorders, this translates to real cost savings—either longer retention windows or fewer storage drives.
- Varifocal 3.2–10.5 mm: Field adjustment post-install means no return trips to swap lenses. This is a practical advantage in large deployments where the survey isn't perfect and angle/distance tweaks are inevitable.
- 802.3af PoE at 13W max: Sub-15W draw fits comfortably in standard PoE budgets. You won't overload your switch's power supply even in dense camera clusters, and no separate PSU means simpler cable runs and fewer points of failure.
Deployment Considerations:
- IP66 protects against rain and dust, but submersion (loading dock washdown, immersion spray) requires IP67 or higher—know your environment before finalizing the spec.
- IR is automatic but performance degrades in heavy fog, dust, or rain where scatter becomes problematic. If visibility through adverse weather is critical, plan for auxiliary lighting or upgrade to a higher-megapixel camera with better low-light sensitivity.
- Audio input is available, but verify facility policy and local regulations before enabling recording—some jurisdictions require explicit notice or consent.
Position the NDE-5703-AL for outdoor perimeter coverage, loading docks, parking structure entries, and warehouse aisles where impact resistance and weather sealing justify the spec. Avoid applications requiring extreme zoom capability or AI-driven on-camera analytics; consider Bosch's higher-megapixel or specialized analytics variants for those use cases.
Key Specifications:
Color: White
