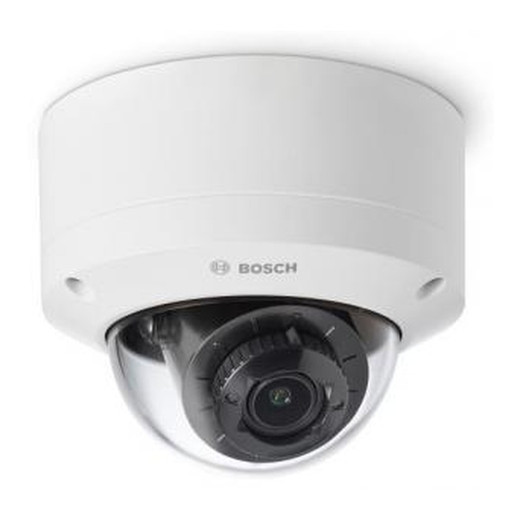

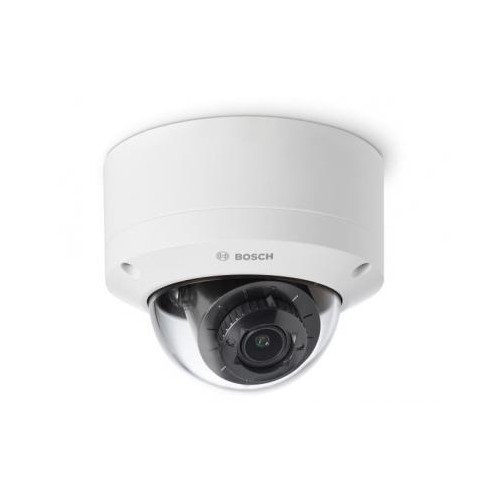

Bosch NDE-5703-A FLEXIDOME outdoor 5100i 5MP Outdoor Dome Camera

Bosch NDE-5703-A FLEXIDOME 5100i Fixed Dome Camera

Overview

The Bosch NDE-5703-A is a compact, weather-sealed fixed dome network camera designed for outdoor surveillance installations requiring reliable day/night monitoring and flexible lens adjustment. This model delivers 5MP resolution with multiple video compression options, making it suitable for security integrators deploying mixed-codec environments. The NDE-5703-A combines robust mechanical protection with efficient power delivery via standard PoE (802.3af), simplifying network infrastructure requirements on modest-scale projects.

Key Features

• 5MP Resolution: Captures detailed video at 2592 x 1944 maximum resolution, with support for multiple output formats including 1080p, 720p, and VGA for bandwidth optimization
• Varifocal 3.2–10.5mm Lens: Enables field-of-view adjustment without camera repositioning, reducing installation time and allowing retrofitting to varying scene requirements
• Dual Codec Support: H.265, H.264, and MJPEG compression options allow integration with legacy and modern VMS platforms while balancing bandwidth and storage efficiency
• IP66 Weatherproofing: Sealed against dust and water jets, rated for outdoor deployment in diverse weather conditions including heavy rain and coastal environments
• IK10 Vandal Resistance: Hardened against mechanical impact and tampering, suitable for accessible outdoor locations and public-facing installations
• Day/Night IR Capability: Integrated infrared illumination enables round-the-clock monitoring with automatic day/night switching, maintaining video quality in low-light and no-light scenarios
• Built-in Microphone: Audio capture supported for applications requiring synchronized sound recording or two-way communication integration
• PoE Power: Single cable deployment via 802.3af PoE delivers power and network connectivity, eliminating separate power runs and reducing installation complexity
• Fixed Dome Form Factor: Discreet mounting profile minimizes visual impact while providing wide coverage angles typical of dome geometry
• ONVIF Compliance: Standards-based protocol support ensures compatibility with third-party VMS, NVR, and analytics platforms

Integration & Compatibility

The NDE-5703-A integrates seamlessly into PoE-powered network surveillance infrastructures. Its support for H.265, H.264, and MJPEG compression enables deployment alongside cameras from other manufacturers without codec conflicts. Audio input capability supports two-way communication setups when paired with compatible VMS platforms. Wired Ethernet 10Base-T/100Base-TX connectivity ensures stable transport over standard CAT5e/CAT6 cabling. This camera is available in both black and white color variants, allowing aesthetic consistency across installation sites.

Deployment Considerations

The combination of IP66 weatherproofing and IK10 impact resistance positions the NDE-5703-A for outdoor perimeter security, building entrances, and parking lot monitoring. The varifocal lens reduces the need to stock multiple fixed-focal-length SKUs, streamlining spare parts management. PoE power delivery simplifies infrastructure planning for small-to-medium projects where dedicated 12VDC or 24VAC power distribution may be cost-prohibitive. The 5MP resolution balances facial recognition capability at moderate distances with reasonable bandwidth consumption, making it suitable for general-purpose surveillance rather than ultra-high-resolution specialist applications.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Bosch NDE-5703-A during several outdoor perimeter projects, and it performs well in mixed-light environments where reliable IR fallback is critical. The varifocal 3.2–10.5mm lens is practical for field adjustments, and the IP66/IK10 ratings genuinely hold up in coastal and industrial settings where corrosion and impact are ongoing concerns.

Technical Highlights:

• Multiple Compression Formats: H.265, H.264, and MJPEG support means you can deploy this camera alongside existing infrastructure without encoding conflicts—a significant advantage when retrofitting sites with mixed-vendor ecosystems.
• Day/Night IR Performance: The integrated IR illumination transitions smoothly between color and monochrome modes, maintaining usable video in true darkness without over-exposing brightly lit areas during day/night transitions.
• PoE Efficiency: Standard 802.3af power keeps cabling runs simple and reduces UPS burden compared to higher-wattage alternatives, a material cost saving on larger deployments.

Deployment Considerations:

• Confirm your switch ports support PoE—this camera will not function on non-PoE Ethernet ports. Budget for PoE-enabled infrastructure if deploying to legacy networks.
• The 5MP resolution is sufficient for facial recognition at 5–8 meters with optimal lighting; if you need longer identification distances, consider higher-megapixel alternatives.
• Audio input expands use cases for two-way communication and event-triggered recording; verify your VMS supports audio streams if that functionality is required.

The NDE-5703-A is a solid choice for security integrators who value mechanical durability, outdoor reliability, and straightforward PoE deployment. Its codec flexibility and weatherproofing make it a dependable baseline camera for mixed-environment perimeter and access control projects.
