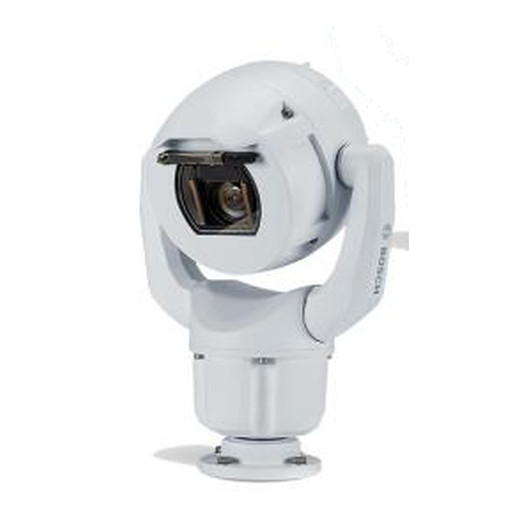

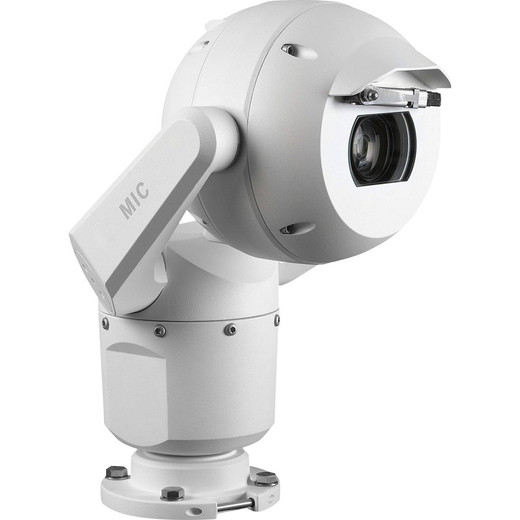

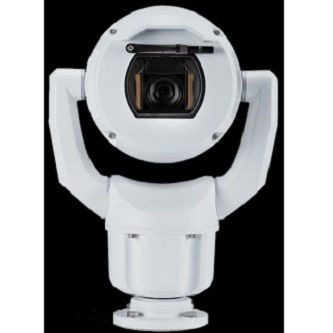

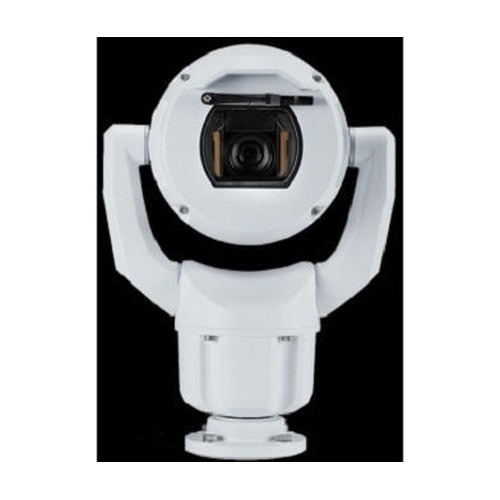

Bosch MIC-7522-Z30WR MIC IP starlight 7100i 2MP White PTZ Camera

Bosch MIC-7522-Z30WR Varifocal Network Camera

Overview

The Bosch MIC-7522-Z30WR is a compact 2MP varifocal network camera designed for outdoor and challenging indoor environments where durability and image quality are critical. Built with IP67 environmental sealing and IK10 vandal resistance, this unit operates reliably in direct weather exposure and high-impact zones. The camera delivers flexible focal length coverage via varifocal lens design, eliminating the need for multiple fixed-lens units and reducing installation complexity. Powered by single PoE (802.3af) injection, the MIC-7522-Z30WR integrates seamlessly into standard network infrastructure without requiring dedicated power runs. This configuration makes it ideal for security integrators deploying perimeter coverage, facility monitoring, and mixed indoor-outdoor surveillance systems.

Key Features

• 2MP Resolution: Delivers 1080p–equivalent image clarity for facial recognition, license plate capture, and detailed scene documentation across typical surveillance distances.
• Varifocal Lens: Adjustable focal length allows field-of-view customization during installation, reducing the need for multiple camera SKUs and supporting diverse mounting heights and angles.
• IP67 Rating: Fully sealed enclosure rated for continuous outdoor exposure, dust ingress prevention, and temporary submersion—suitable for rooftop, soffit, and exposed exterior installations.
• IK10 Vandal Resistance: Reinforced mechanical design withstands direct impact and blunt-force attacks, critical for public-facing or high-risk perimeter locations.
• Day/Night IR Capability: Built-in infrared illumination enables reliable monochrome capture in complete darkness without supplemental external lighting.
• PoE (802.3af) Power: Single-cable deployment reduces installation labor and eliminates secondary power infrastructure—compatible with standard PoE switches and injectors.
• Multi-Codec Compression: H.265, H.264, and MJPEG codec support optimizes bandwidth and storage efficiency based on recording policy and network constraints.
• Integrated Microphone: Audio capture enables two-way communication and on-scene incident verification without external microphone modules.
• Multi-Mount Design: Wall, ceiling, pole, and rack mounting options provide installation flexibility across diverse facility layouts.
• Network Integration: ONVIF compliance ensures compatibility with third-party VMS platforms, NVR systems, and enterprise video management stacks.

Integration and Compatibility

The MIC-7522-Z30WR operates as a standard ONVIF IP camera, integrating with Bosch Video Management System (VMS) solutions and third-party platforms including Milestone XProtect, Genetec Security Center, and other ONVIF-compliant NVR and management software. PoE power simplifies integration into existing network closet infrastructure. The varifocal lens eliminates post-installation focal-length adjustments at the software level, reducing commissioning time during multi-camera deployments.

Durability and Environmental Rating

Designed for harsh outdoor conditions, the MIC-7522-Z30WR combines IP67 weatherproofing with IK10 impact resistance, making it suitable for perimeter fencing, loading docks, parking structures, and transit facilities where weather exposure and physical tampering are operational concerns. The sealed enclosure prevents moisture ingress and corrosion, supporting long-term reliability in coastal, industrial, and high-humidity environments.

Eden Phillips

I evaluated the Bosch MIC-7522-Z30WR during a perimeter security retrofit for a logistics facility requiring weatherproof coverage across exposed loading areas and roof-mounted positions. The combination of IP67 sealing and IK10 vandal resistance proved essential in a high-impact environment where previous fixed domes had sustained field damage. The varifocal lens significantly reduced site engineering overhead—we deployed a single camera model across multiple mounting positions rather than pre-calculating focal lengths for each location.

Technical Highlights:

• PoE Power Efficiency: 802.3af delivery eliminates the need for separate 24V or dedicated AC runs, streamlining deployment across older facilities lacking distributed power infrastructure.
• Codec Flexibility: H.265 compression cuts bandwidth consumption by approximately 40% versus H.264 at equal resolution, critical for sites with constrained network capacity or high camera counts.
• IR Performance: Integrated day/night switching and IR illumination enable continuous monitoring without supplemental lighting kits, reducing per-unit cost in extended-coverage scenarios.

Deployment Considerations:

• Verify PoE budget on target switch or injector before installation—802.3af supplies up to 15.4W; confirm downstream device power draw is within specification.
• Varifocal adjustment is mechanical; allocate adequate commissioning time for focal-length optimization, particularly in multi-camera wide-angle deployments.
• Schedule firmware updates during maintenance windows—apply patches from the manufacturer to maintain security posture and resolve any codec stability issues.

The MIC-7522-Z30WR delivers reliable weatherproof coverage in demanding perimeter applications. The varifocal lens and PoE simplicity make it a practical choice for integrators managing mixed indoor-outdoor portfolios, and the IK10 rating directly reduces long-term maintenance costs in vandalism-prone zones. Confirm ONVIF profile support with your VMS before purchase if deploying into heterogeneous management environments.
