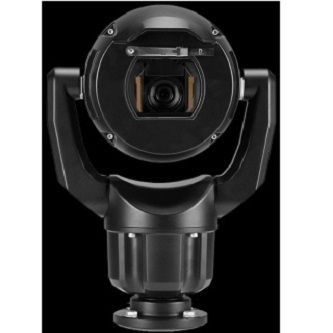

Bosch MIC-7522-Z30BR Network Surveillance Camera

Overview

The Bosch MIC-7522-Z30BR is a 2MP network surveillance camera engineered for outdoor and harsh-environment deployments. This camera delivers full HD resolution (1920 x 1080) with flexible varifocal optics and comprehensive video compression support. Powered by single PoE (802.3af), the MIC-7522-Z30BR operates with minimal infrastructure overhead while maintaining robust durability in demanding conditions. The camera combines infrared day/night capability with IP67 weatherproofing and IK10 vandal-resistant construction, making it suitable for perimeter security, facility monitoring, and applications requiring extended environmental tolerance.

Key Features

• 2MP Full HD Resolution: 1920 x 1080 maximum video resolution captures fine detail for identification and forensic review across standard security deployments.
• Varifocal Lens: Adjustable focal length provides field-of-view flexibility for installation in varied mounting locations without lens swap.
• PoE (802.3af) Powered: Single power delivery over Ethernet simplifies cabling and reduces installation footprint; no separate power supply required.
• Infrared Day/Night Operation: Integrated IR illumination enables 24/7 monitoring across lighting conditions with automatic day/night switching and enhanced low-light sensitivity.
• IP67 Weather Rating: Sealed construction protects against dust ingress and water immersion, supporting outdoor mounting in rain, spray, and wet environments.
• IK10 Vandal Resistance: Impact-rated housing withstands mechanical stress and tampering attempts common in unsecured outdoor locations.
• Multiple Compression Standards: H.265, H.264, and MJPEG codec support enables bandwidth optimization and broad VMS ecosystem compatibility.
• Microphone Input: Built-in audio capture adds situational awareness for monitoring and incident correlation.
• Ethernet Connectivity: 10Base-T/100Base-TX network interface supports standard IP security infrastructure and ONVIF-compliant systems.

Video and Compression Capabilities

The camera outputs multiple resolution options including 1280 x 720, 1920 x 1080, 1280 x 1024, 768 x 432, 704 x 480, 512 x 288, and 256 x 144 to accommodate bandwidth constraints and storage efficiency requirements. H.265 compression reduces file sizes significantly versus H.264 while maintaining visual fidelity, critical for organizations managing long-term retention or high-camera-count systems. H.264 and MJPEG fallback options ensure compatibility with legacy VMS platforms and edge recording devices.

Mechanical and Environmental Design

The MIC-7522-Z30BR is engineered as a compact outdoor camera with pan/tilt/zoom mechanical design capability. Its outdoor-rated construction and sealed enclosure make it suitable for wall, ceiling, or pendant mounting in exposed environments. The IK10 impact rating exceeds typical vandal-resistant requirements, protecting optics and housing from deliberate or accidental damage in high-traffic or unsecured areas.

Integration and System Compatibility

Standard Ethernet connectivity and ONVIF protocol support enable seamless integration into IP security management systems, NVRs, and enterprise video platforms. Audio input capability facilitates dual-sensor deployments combining video and sound for enhanced incident documentation. The camera operates on standard PoE infrastructure without requiring specialized power distribution or external adapters.

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

I have evaluated the Bosch MIC-7522-Z30BR during planning phases for perimeter and facility security projects. This camera addresses the practical requirements of outdoor deployments where environmental durability and power simplicity are primary constraints. The combination of single PoE delivery with full IP67 and IK10 ratings makes installation straightforward without requiring conduit upgrades or external power runs common with higher-wattage cameras.

Technical Highlights:

• PoE Power Efficiency: 802.3af compliance means standard switches and injectors can power the MIC-7522-Z30BR without PoE+ upgrades, reducing infrastructure costs for multi-camera deployments.
• Varifocal Optics: Field-adjustable focal length eliminates the need to stock multiple lens options; a single camera SKU covers wide-angle and telephoto requirements through mechanical adjustment.
• H.265 Codec Support: Bandwidth and storage savings of 30–50% versus H.264 become material in systems with 20+ cameras or continuous recording mandates.
• IR Day/Night Capability: Automatic switching and integrated illumination reduce reliance on external lighting infrastructure in unlit perimeter zones.

Deployment Considerations:

• The IK10 rating and sealed IP67 housing justify placement in high-risk outdoor areas where vandalism or environmental stress is anticipated; mounting in protected zones may be overkill.
• Audio input is useful for incident correlation but requires explicit VMS configuration and retention policies to remain compliant with workplace and privacy regulations.
• The 2MP resolution is adequate for identity verification in controlled distance scenarios (entry gates, loading docks) but may require wider fields of view or multi-camera coverage for large perimeters.

The MIC-7522-Z30BR is a reliable workhorse for integrators deploying outdoor security in cost-conscious or infrastructure-constrained environments. Its durability, power efficiency, and compression flexibility make it a practical choice for municipal facilities, industrial sites, and distributed retail locations.
