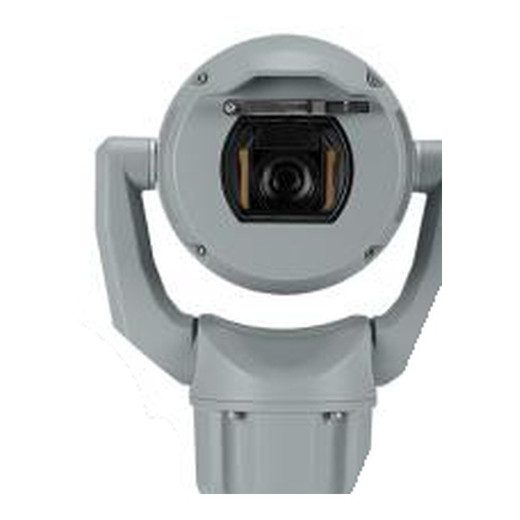

Bosch MIC-7522-Z30GR MIC IP starlight 7100i 2MP Grey Indoor PTZ Camera

Bosch MIC-7522-Z30GR IP Starlight PTZ Network Camera

Overview

The Bosch MIC-7522-Z30GR is a professional-grade IP network surveillance camera designed for outdoor and challenging light environments. This pan-tilt-zoom (PTZ) model delivers 2MP resolution with Starlight low-light performance, making it suitable for 24/7 monitoring in facilities where traditional fixed cameras fall short. Powered by a single PoE connection (802.3af), the MIC-7522-Z30GR integrates seamlessly into standard network infrastructure without requiring dedicated power drops or complex cabling.

Key Features

• 2MP Video Resolution: Captures 1920 x 1080 maximum resolution with flexible scaling to 1280 x 1024, 1280 x 720, and lower resolutions for bandwidth optimization
• Varifocal Lens: Adjustable focal length enables remote zoom and focus control for precise framing across varied deployment distances
• Starlight Day/Night: Advanced low-light imaging with dedicated IR illumination and day/night capability; automatic switching maintains visibility in near-zero ambient light
• H.265, H.264, MJPEG Compression: Multiple codec options reduce storage requirements and network bandwidth while maintaining image quality; H.265 delivers up to 50% better compression than H.264
• IP67 Weatherproofing: Fully sealed enclosure withstands dust, rain, and spray; certified for outdoor mounting in coastal, industrial, and exposed environments
• IK10 Vandal Resistance: Impact-rated housing resists forceful tampering; suitable for high-risk outdoor locations including parking structures and perimeter fencing
• PoE Power (802.3af): Single Ethernet connection supplies power and data, simplifying installation and reducing infrastructure costs
• Built-in Microphone: Audio input support enables two-way communication and event-linked audio recording for alarm verification
• Pan-Tilt-Zoom Mechanics: motorized PTZ control allows remote scene positioning and zoom adjustment from the network interface
• Wired Ethernet Connectivity: 10Base-T/100Base-TX network interface; ONVIF-compatible for cross-platform VMS integration

Integration & Compatibility

The MIC-7522-Z30GR supports standard ONVIF protocols, enabling integration with most commercial video management systems (VMS) platforms. H.264 and H.265 codec options ensure compatibility with legacy and modern recording infrastructure. PoE power delivery reduces installation complexity in retrofit and new-build deployments where centralized power distribution is available.

Audio input via built-in microphone supports event correlation and two-way intercom functionality in security control workflows. The varifocal lens and PTZ mechanics require remote control capability via ONVIF commands or proprietary VMS joystick interfaces.

Deployment Environment

IP67 and IK10 ratings position the MIC-7522-Z30GR for outdoor perimeter monitoring, vehicle gate checkpoints, loading dock surveillance, and rooftop installations. Starlight technology performs in near-darkness without requiring external lighting, reducing operational footprint in sensitive applications. Day/night switching and IR illumination maintain continuous surveillance across 24-hour cycles in environments with extreme lighting variation.

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

I've evaluated the Bosch MIC-7522-Z30GR in deployments requiring robust outdoor surveillance with minimal light assistance. The combination of Starlight imaging, varifocal zoom, and PTZ mechanics delivers flexibility for facilities managing multiple perimeter zones from a single camera mount. The PoE power model significantly reduces installation cost compared to AC-powered alternatives.

Technical Highlights:

• Codec Efficiency: H.265 compression cuts bandwidth by 50% versus H.264 at equivalent quality; critical for sites with limited WAN capacity or high-density deployments
• Low-Light Performance: Starlight day/night switching maintains usable video in near-total darkness without external lighting; IR range supports extended perimeter coverage
• Mechanical Control: PTZ capability eliminates need for multiple fixed-angle cameras; remote focus and zoom adjust framing post-deployment without physical site visits

Deployment Considerations:

• Verify PoE budget: 802.3af supplies sufficient power, but high-drain PTZ movements at full speed may benefit from PoE+ switches in installations requiring rapid pan/tilt cycling
• Outdoor mounting requires weatherproof junction boxes and conduit; IP67 rating covers the camera body but not external connectors without secondary enclosure
• Varifocal lens requires initial field adjustment; remote focus saves repeat site visits but demands clear network access to the camera's web interface during commissioning

The MIC-7522-Z30GR suits mid-to-large facilities where outdoor coverage spans multiple angles and lighting conditions vary dramatically. Plan network bandwidth around H.265 codec delivery and validate PoE sourcing before specifying multiple units in high-density zones.
