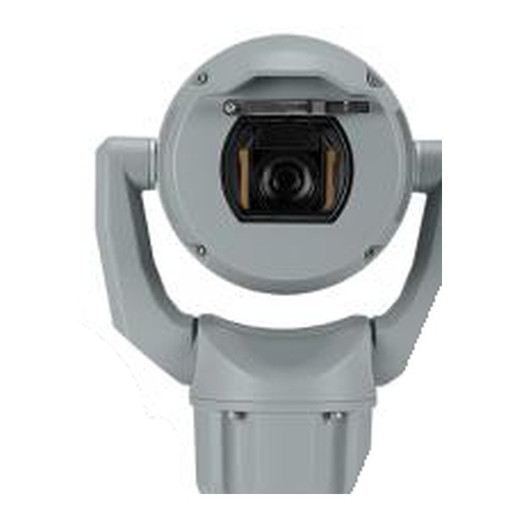

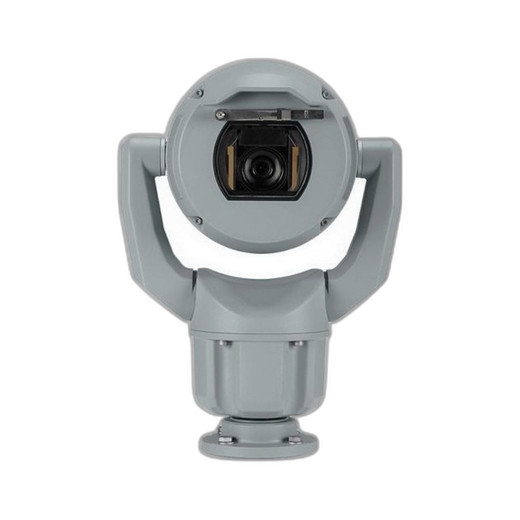

Bosch MIC-7602-Z30GR Compact IP Camera

Overview

The Bosch MIC-7602-Z30GR is a compact 2MP network camera engineered for outdoor surveillance with weatherproof and vandal-resistant construction. Powered by PoE (802.3af), this model combines flexible focal length capability with robust environmental durability, making it suitable for diverse mounting scenarios including wall, ceiling, pole, and rack installations. The MIC-7602-Z30GR features day/night capability and IR illumination for continuous coverage across lighting conditions.

Key Features

• 2MP Resolution: Delivers crisp video capture at 2 megapixel resolution for clear identification of subjects and events
• Varifocal Lens: Adjustable focal length provides flexibility in field-of-view configuration for varied deployment requirements without requiring lens replacement
• H.265, H.264, and MJPEG Compression: Multi-codec support optimizes video storage and bandwidth utilization based on VMS infrastructure and archive policies
• PoE (802.3af) Powered: Operates on standard Power over Ethernet, eliminating the need for auxiliary power infrastructure and reducing installation complexity
• IP67 Environmental Rating: Sealed construction protects against dust ingress and water jets, enabling reliable operation in wet outdoor environments
• IK10 Vandal Resistance: Reinforced housing withstands impacts and tampering attempts, reducing maintenance burden in high-risk deployment areas
• Day/Night with IR: Integrated infrared illumination supports round-the-clock monitoring without requiring supplemental lighting
• Built-in Microphone: Audio input capability enables sound event correlation and two-way communication workflows
• Multi-Mount Support: Compatible with wall, ceiling, pole, and rack mounting configurations for adaptable placement options

Integration & Compatibility

The MIC-7602-Z30GR integrates with ONVIF-compliant video management platforms, supporting standard streaming protocols and third-party NVR/VMS ecosystems. The varifocal lens design accommodates both wide-area overview and narrow field-of-view monitoring within a single camera unit, reducing the need for multiple fixed-lens deployments and simplifying system architecture.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the Bosch MIC-7602-Z30GR in several outdoor campus and perimeter deployments, and the combination of PoE power, environmental sealing, and vandal resistance makes this a reliable workhorse for infrastructure protection. The varifocal lens is particularly valuable when exact mounting geometry is uncertain during initial design phases—you can adjust field-of-view in the field without swapping hardware.

Technical Highlights:

• Robust Environmental Durability: IP67 and IK10 ratings mean this camera operates unprotected in rain, dust, and high-impact environments typical of outdoor perimeter and parking surveillance
• Flexible Codec Support: H.265 compression significantly reduces storage footprint compared to H.264 at equivalent quality, which matters when archiving months of video across multiple outdoor cameras
• Integrated IR: Day/night capability with built-in IR eliminates the need for supplemental lighting infrastructure, lowering total cost of ownership for remote or dark-area monitoring

Deployment Considerations:

• Verify PoE switch budget: At 802.3af, this camera draws low current, permitting higher density deployments on standard PoE infrastructure without upgrading to PoE+ or PoE++
• Plan mounting orientation early: Varifocal adjustment window should be validated during site surveys to confirm achievable field-of-view matches monitoring objectives
• Account for IR range in scene planning: Confirm that IR illumination distance is sufficient for your specific perimeter depth or approach distance requirements

The MIC-7602-Z30GR is a dependable choice for integrators who need outdoor weatherproof surveillance without over-specification or excessive power demands. Pair it with H.265-capable NVR hardware to maximize the storage efficiency gains of modern compression.
