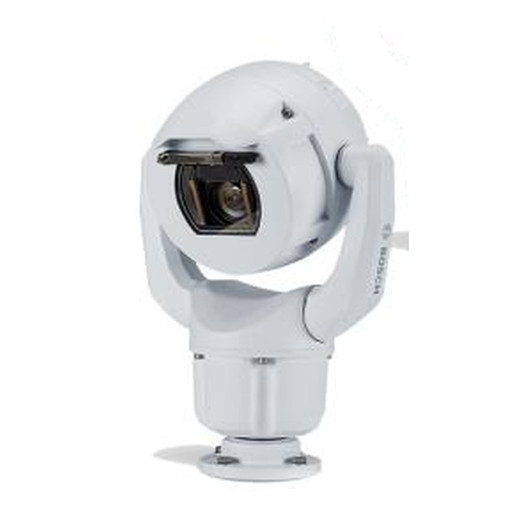

Bosch MIC-7602-Z30W Compact Network Camera

Overview

The Bosch MIC-7602-Z30W is a 2MP compact network camera designed for flexible indoor and outdoor deployment. Built with IP67 environmental protection and IK10 vandal resistance, this PoE-powered camera delivers reliable surveillance across wall, ceiling, pole, and rack mounting configurations. The varifocal lens and integrated infrared capability enable day/night operation, while advanced compression options ensure efficient network bandwidth utilization in resource-constrained environments.

Key Features

• 2MP Resolution: Delivers clear 2-megapixel video suitable for perimeter monitoring and general surveillance applications
• Varifocal Lens: Adjustable focal length accommodates varied deployment distances and scene framing without requiring lens replacement
• IR Day/Night: Integrated infrared emitters and automatic day/night switching enable continuous operation across 24-hour lighting conditions
• IP67 Rating: Sealed enclosure protects against dust ingress and water jets, supporting outdoor and wet-environment installations
• IK10 Vandal Resistance: Reinforced housing withstands impact and deliberate tampering, reducing maintenance costs in high-risk areas
• PoE (802.3af) Power: Single-cable deployment via standard Power over Ethernet simplifies infrastructure and reduces installation labor
• H.265, H.264, MJPEG Compression: Multi-codec support enables codec selection based on storage efficiency, bandwidth constraints, and VMS compatibility requirements
• Microphone Support: Built-in audio input enables two-way communication and situational awareness in integrated security deployments
• Wall, Ceiling, Pole, Rack Mount: Multiple mounting brackets and configurations support diverse facility layouts without requiring custom fabrication

Integration & Compatibility

The MIC-7602-Z30W operates as an ONVIF-compliant camera, integrating with standard VMS platforms and control systems that support ONVIF Profile S communication protocols. The multi-codec output (H.265, H.264, MJPEG) enables vendor-neutral integration without transcoding overhead. PoE power delivery meets 802.3af specifications, requiring only standard PoE switches or injectors for deployment. The microphone input supports voice-enabled workflows including alarm notification, facility announcements, and incident documentation.

Deployment Applications

The compact form factor and flexible mounting options make the MIC-7602-Z30W suitable for perimeter fencing, building exteriors, parking areas, and controlled-access entry points. IP67 protection enables washdown environments and areas exposed to rain or dust. IK10 vandal resistance qualifies the camera for outdoor public-facing installations where impact resistance and tampering prevention are operational requirements. The varifocal lens reduces the need for multiple fixed-focal-length SKUs, streamlining inventory and field deployment logistics.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

During deployment planning for a retail facility perimeter upgrade, we evaluated the Bosch MIC-7602-Z30W alongside competing compact models. The combination of IP67 sealing, IK10 impact resistance, and PoE simplicity delivers measurable advantages in outdoor environments where moisture and vandalism represent real operational risks.

Technical Highlights:

• Codec Flexibility: H.265 compression reduces storage requirements by 50% compared to H.264 at equivalent quality, critical when scaling multi-camera deployments across budget-constrained environments.
• Varifocal Design: Eliminates the need to stock multiple focal lengths; field-adjustable framing reduces spare parts inventory and deployment lead time.
• Integrated IR & Day/Night: Automatic IR activation and lens-iris compensation ensure usable video across dawn/dusk transitions and complete darkness without manual intervention.

Deployment Considerations:

• Verify PoE switch wattage budget during design phase; 802.3af provides 15.4W maximum, sufficient for this model but margin is limited if additional devices share a port or injector.
• IR range varies with scene reflectance; test IR performance on-site before final mounting height decision, particularly in low-reflectance environments like dark brick or pavement.
• Varifocal adjustment requires physical access post-installation; establish standard focal lengths during commissioning to avoid repeated field visits for zoom tweaks.

The MIC-7602-Z30W represents a pragmatic choice for integrators standardizing on compact, vandal-hardened cameras with minimal power and cabling overhead. Its multi-codec output and ONVIF compatibility ensure smooth integration into existing VMS ecosystems without bridge equipment or translation layers.
