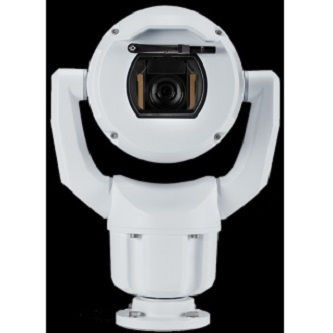

Bosch MIC-7522-Z30W MIC IP starlight 7100i 2MP White Indoor PTZ Camera

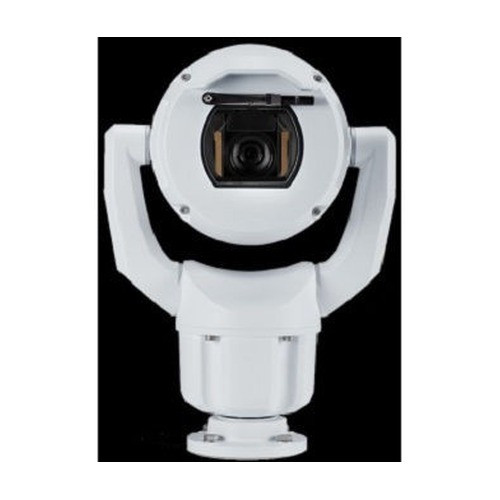

Bosch MIC-7522-Z30W PTZ Starlight Network Camera

The Bosch MIC-7522-Z30W is a 2MP pan-tilt-zoom (PTZ) network camera engineered for outdoor surveillance in low-light environments. This professional-grade unit combines motorized pan-tilt-zoom functionality with Starlight imaging technology, delivering reliable day/night performance across diverse deployment scenarios. Built to withstand harsh outdoor conditions with IP67 environmental protection and IK10 vandal resistance, the MIC-7522-Z30W suits security integrators tasked with protecting large areas, perimeter monitoring, and critical infrastructure.

Key Features

• 2MP Resolution: 1280 × 720 pixel capture for clear identification over extended distances
• 30x Optical Zoom: Varifocal lens design enables flexible focal length adjustment without resolution loss
• Starlight Imaging: Enhanced low-light performance with infrared (IR) and day/night switching for 24/7 operation
• Motorized PTZ Control: Full pan, tilt, and zoom capability for dynamic scene tracking and broad coverage area
• IP67 Environmental Rating: Complete dust and water ingress protection; rated for heavy rain, spray, and challenging outdoor exposure
• IK10 Vandal Resistance: Robust mechanical design withstands impact and physical tampering
• PoE Power (802.3af): Single cable for power and data; simplified installation and reduced wiring costs
• Multiple Compression Formats: H.265, H.264, and MJPEG support; optimize bandwidth and storage based on network capacity and retention requirements
• Integrated Microphone: Audio input capability for synchronized audio-visual recording
• Outdoor-Rated Construction: Purpose-built materials and sealing for extended service life in sun, rain, and temperature fluctuation

Technical Specifications

The camera operates on PoE (802.3af) power delivery, eliminating the need for separate AC power infrastructure. Video compression options include H.265 (efficient bandwidth usage), H.264 (broad compatibility), and MJPEG (frame-accurate recording). The varifocal lens accommodates mounting heights and distances from shallow to extended coverage zones. IR and day/night capability ensures continuous surveillance regardless of ambient light conditions. The IK10 rating confirms resilience against significant impact, critical for unattended outdoor deployments where vandalism or environmental stress poses operational risk.

Integration & Compatibility

The MIC-7522-Z30W integrates with standard ONVIF-compliant video management systems (VMS) and network video recorders (NVRs) via Ethernet 10Base-T/100Base-TX connectivity. The multiformat compression support ensures compatibility with legacy and modern recording platforms. PoE power sourcing from managed switches or injectors simplifies infrastructure design; confirm PoE supply capacity with your switching architecture before deployment.

Deployment Considerations

Outdoor, perimeter, and long-range monitoring applications benefit from the 30x optical zoom and PTZ mobility. The IP67 and IK10 ratings position this camera for exposed mounting (roof, tower, pole-mount) where weather exposure and potential impact are design constraints. Verify network bandwidth availability to support real-time PTZ stream delivery and multi-camera failover logic in your NVR configuration.

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

The Bosch MIC-7522-Z30W represents a mature PTZ platform for outdoor surveillance where motorized control and low-light imaging drive operational requirements. During deployment planning, the combination of Starlight performance and 30x zoom creates distinct advantages for perimeter and long-range applications where thermal signature and detail extraction matter equally.

Technical Highlights:

• Starlight Day/Night Imaging: IR and automatic day/night switching maintain usable video in near-zero ambient light; eliminates blind periods and reduces false alarms from lighting transitions
• 30x Motorized Zoom: Varifocal optics allow operators to shift focal length dynamically; reduces need for multiple fixed-focal cameras in wide-area deployments
• IP67 & IK10 Durability: Sealed against weather and impact; validated for rooftop, perimeter fence, and tower mounting without protective housings
• H.265 Compression: Reduces bandwidth consumption by 40–50% relative to H.264 at equivalent quality; critical for multi-camera systems with limited WAN or storage

Deployment Considerations:

• PoE power budget: Confirm your PoE switch or injector can sustain sustained PTZ motion current draw; dynamic zoom operations may spike above baseline consumption
• Network latency: Pan-tilt-zoom responsiveness depends on Ethernet latency; prioritize managed switches with QoS tagging for real-time PTZ stream delivery
• IR Range Performance: Starlight IR distance scales with object size and reflectivity; field-test at deployment height to validate detection range against site lighting baseline
• Mounting access: PTZ cameras require periodic focus adjustment and lens cleaning; ensure maintenance ladders or lifts are planned into site logistics

The MIC-7522-Z30W suits integrators prioritizing motorized control and low-light imaging over fixed-focal alternatives. Verify PoE infrastructure capacity and plan network QoS before mass deployment in multi-camera systems.
