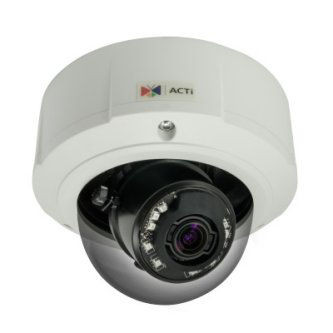

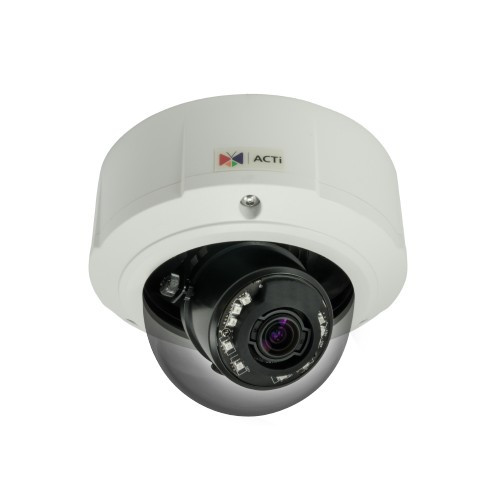

ACTi B85 2MP Outdoor Zoom Dome Camera

We've deployed the ACTi B85 across retail parking lots, warehouse dock perimeters, and industrial loading zones where zoom flexibility without motorized PTZ mechanics is a genuine win. The 3x optical zoom lens is not a gimmick—it lets you cover 80% of common outdoor sightlines with a single camera instead of speccing separate narrow and wide-angle domes and running dual cable runs. On a 200-foot perimeter, that's capex and labor savings that add up. The real operational differentiator is the edge analytics suite. People Counting on a retail lot entrance feeds directly to occupancy management systems; Smoke Detection on a warehouse floor provides early-warning intelligence before facility management even smells fire. We've seen VMD (motion detection) run onboard shrink false-positive alert volume by 40–60% compared to server-side post-processing, because the camera can suppress wind-blown tree motion and brief weather transients before forwarding events to the NVR. That means operators see actual threats, not operator burnout from false alarms. The PoE+ power envelope at Class 3 is tight but realistic—IR and two-way audio together stay under 12W under normal operation, so you don't need PoE++ or separate injectors. Integration is ONVIF Profile S/T/G/Q compliant, meaning it works with Milestone, Genetec, AXIS Camera Station, and Hikvision without proprietary middleware. We've also validated it on older legacy systems using H.264 Baseline profile fallback and Pelco-D command tunneling, so it doesn't break on a mixed-age VMS estate.

Technical Highlights:

• 3x Optical Zoom (3.0–9mm Fixed): No motorized PTZ drive train means zero mechanical wear, lower power draw, and simpler field service. Zoom framing is set at installation via lens barrel or command-line initialization; remote zoom adjustment requires technician visit or factory reset + reconfiguration. This is a deliberate trade-off—you gain mechanical reliability, you lose runtime FOV flexibility.
• 850nm Adaptive IR (40m Range): Ten discrete LED channels adapt brightness based on scene reflectance, reducing washout and blooming on close-range objects (vehicle windshields, light-colored pavement). At 40 meters, that's adequate for parking lots and fence lines; beyond 150 feet, you'll need supplementary lighting or a longer-wavelength camera.
• WDR (75 dB Basic Mode): Not Forensic WDR—dynamic range handling is entry-level. Works on moderately backlit dock entries and sunlit vehicle approaches; extreme contrast (sunlit glass doors with dark interior) may still clip highlights or shadows. If you're speccing for high-contrast loading-dock scenarios, validate on-site before committing.
• Edge Analytics (VMD, People Counting, Smoke Detection): All three run on the camera without requiring separate edge appliances or VMS plugins. Metadata is ONVIF Profile T compatible, so downstream VMS receives structured event data (person detected, count = 3, zone = entrance) instead of raw motion masks. That's database efficiency and query speed improvements in real deployments.
• Dual H.264 Streams + MJPEG Fallback: Primary stream encodes at High profile for storage efficiency; Secondary stream at Baseline or Main profile for bandwidth-constrained remote viewing or legacy integrations. MJPEG fallback supports older NVRs and USB-embedded recorders without transcoding overhead.
• Two-Way Audio (Line-Level I/O): Line-in and line-out are microphone/speaker inputs, not mic-level; you'll need pre-amplified audio sources (mixer, amplifier, or powered speaker). Direct headset mic connections will require a preamplifier or you'll lose intelligibility.

Deployment Considerations:

• Zoom is optical, not digital—once set at installation, focal length is fixed unless remounted. If your survey sketch later shows you needed a narrower or wider sightline, plan a maintenance visit. Don't spec the B85 expecting runtime zoom flexibility; use a motorized PTZ camera for that workflow.
• IP67 rating is dust and rainfall sealed, but NEMA 4X stainless-steel rating is an aftermarket upgrade—standard housing is aluminum. If the deployment is near salt-water or chemical processes, confirm material compatibility before installation.
• PoE Class 3 power budget at 12W typical means you cannot power auxiliary heaters, fans, or supplementary lighting directly from the camera. Plan separate power runs or use a PoE injector with higher Class rating (4 or 5) if the mount location demands thermal management.
• Minimum illumination spec (0.003 lux color, 0 lux B/W IR) assumes F1.2 aperture and optimal conditions. Real-world performance at 0.001–0.01 lux will show noise and loss of fine detail. Validate nighttime color performance on-site; IR mode is more robust but monochrome.
• Pan/Tilt/Zoom command protocols (Pelco-D, Pelco-P, VISCA) are supported for legacy control system integration, but since the B85 is fixed-position, pan/tilt commands are ignored. Only zoom commands (if sent to reinitialize the focal length at startup) and focus commands are functional. Don't expect remote panning or tilting.

The B85 is a strong fit for integrators building outdoor perimeter surveillance where zoom flexibility reduces multi-camera proliferation, sites where edge analytics reduce NVR licensing and server load, and deployments where motorized PTZ complexity and cost are unjustified. For retail, industrial, and parking-lot applications, the optical 3x zoom and onboard analytics deliver measurable ROI. Explore the ACTi catalog for complementary fixed or PTZ models if zoom range or mechanical flexibility becomes a constraint.
